200 Outdoor Unit

Installation

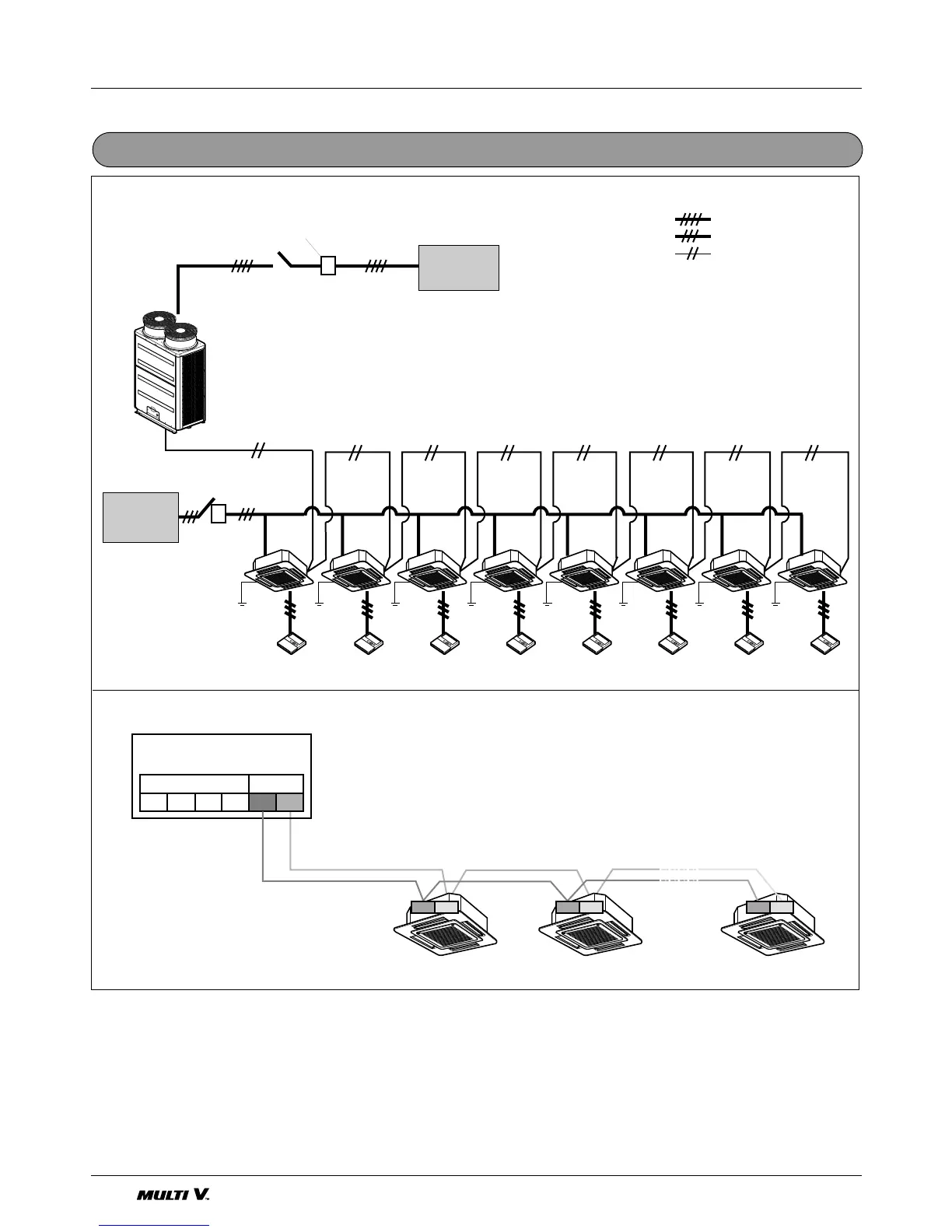

Example connection of transmission wire

Power supply

3 phase 50Hz

380~415V

Power supply

1 phase 50Hz

220~240V

: 3 Phase power line

: Single phase power line

: Transmission line(2 wire)

Power supply switch

(Switch/Fuse)

Outdoor Unit Control Box

TB6

Indoor unitCentral controller

ABVcc GNDCD

34 34 34

LG Multi V CRUN Series User Manual
