LU Backpack – Additional Features
The backpack has several zippered openings that enable the operator to easily
access any area needed to operate the LU unit. In addition, there are zippered
compartments for personal accessories and an attached rain hood that can be
used to protect the entire backpack.

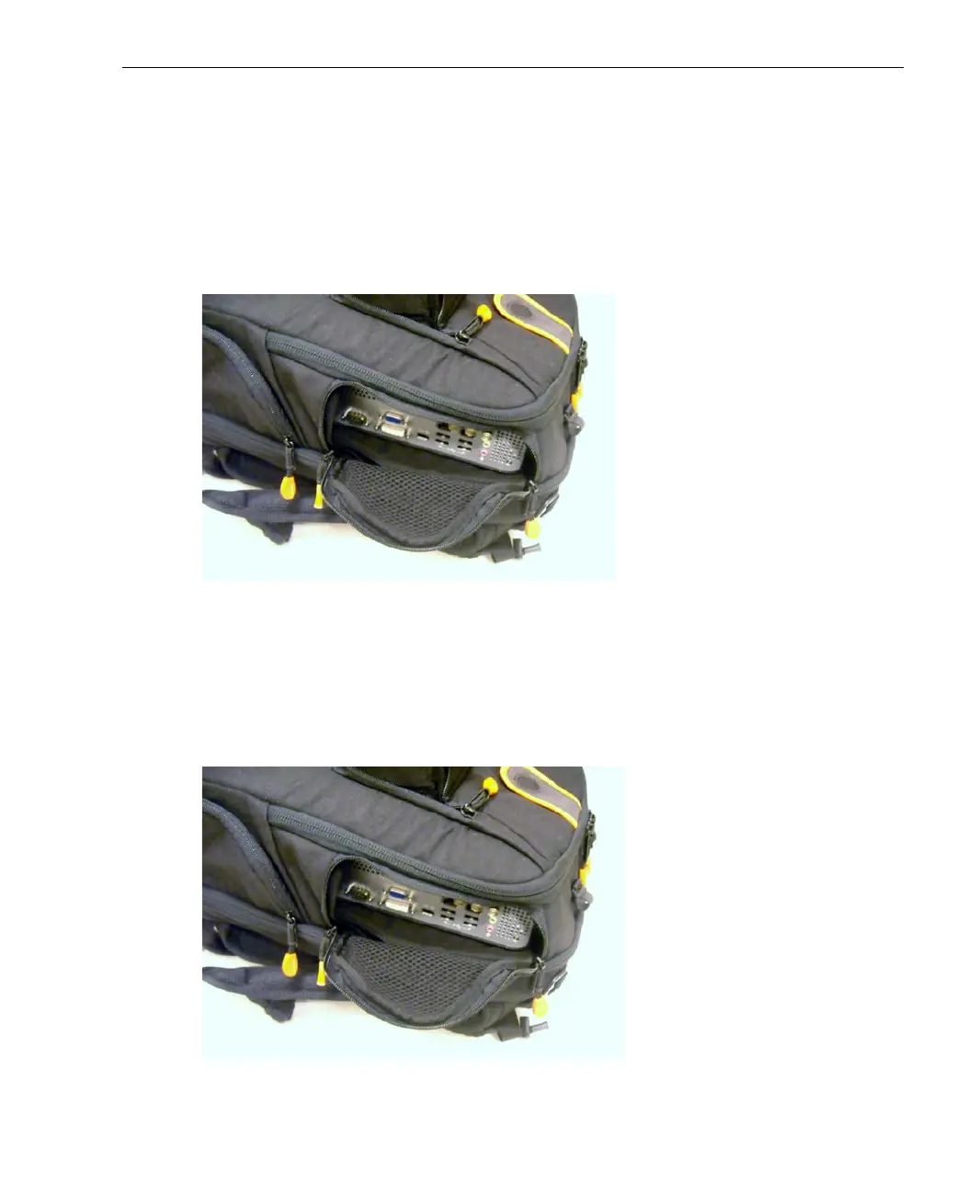

Figure 113: Zippered Openings for Connecting Wires
Connecting the Camera
Open the zippered compartment that covers the DV IN connections on the LU
unit. Attach the appropriate cables to the unit.
Figure 114: Connectors
