LNS QUICK SIX S2 - Characteristics; Floor Plans

12 CHAPTER 2: TECHNICAL DATA
MOVE S2
Weight 700 kg
Overall length 3340 mm
Overall width 880 mm
Spindle axis height 900-1200 mm (*)
Z-axis retraction system 470 mm
Minimum diameter 8 mm
Maximum diameter
(profiled: on flats)
ø80 mm
hex 46 mm
square 38 mm
Min. bar stock length 700 mm
Max. Bar stock length 1900 mm
Main electrical power (Volt)
3x 200-480 V,
50 Hz/60 Hz
Air pressure 5 bar
Air consumption < 10 l/loading cycle
Maximum feed rate > 100 m/min
Loading cycle time 30-40 sec.
Hydraulic oil ISO VG 100
(*) 1200 - 1500 mm with specific stand extension
Depending on the options, these technical data may vary. Please refer to the technical data sheet.

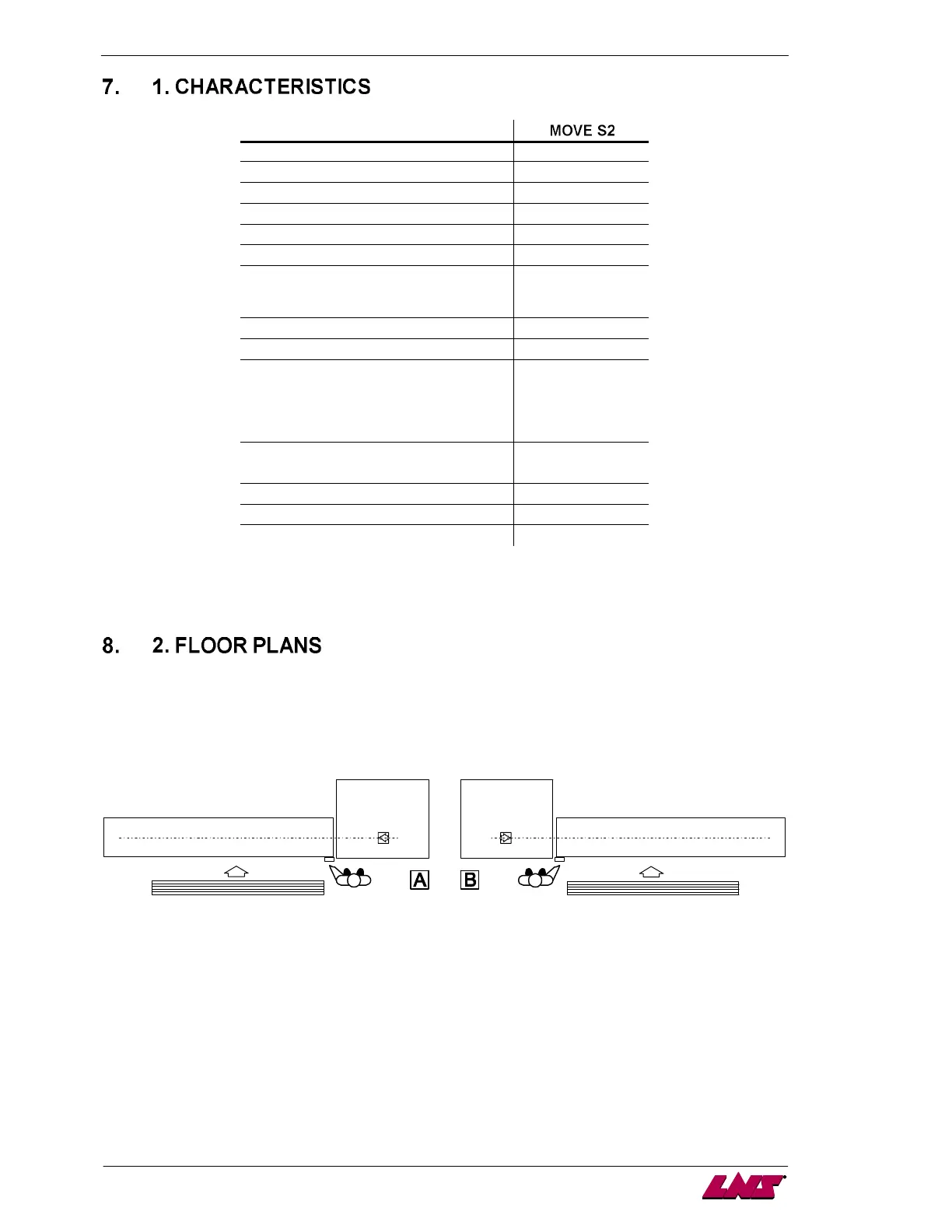

The following floor space plans indicate the most frequently used dimensions for placing the bar feeder.
Details on the dimensions of other parts or elements of the bar feeder will be furnished upon request.
The plan (A) shows the MOVE S2 bar feeder with left/front loading.
The plan (B) shows the MOVE S2 bar feeder with right/front loading.
