22 CHAPTER 3: SETTING INTO OPERATION
MOVE S2

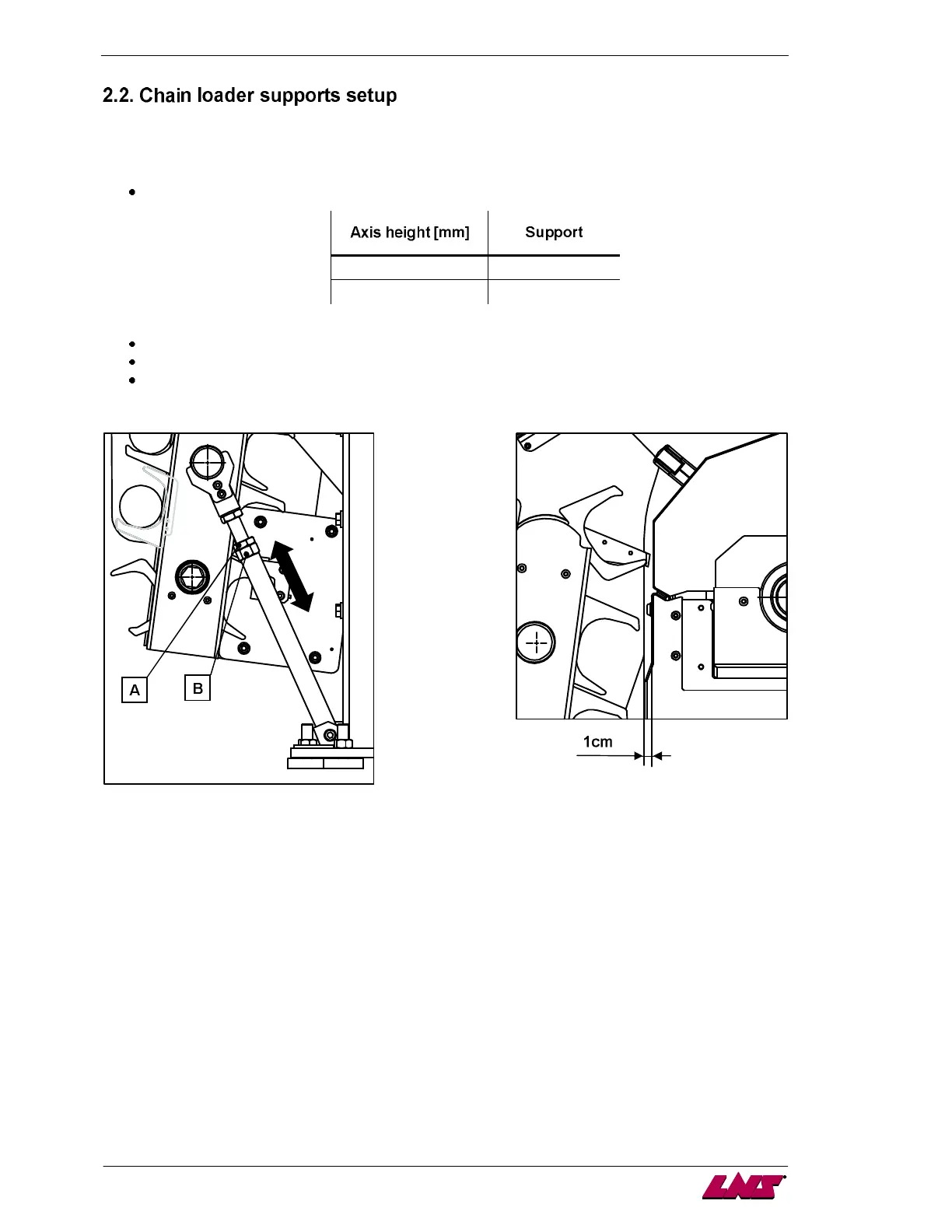

The bar feeder is set at factory to the axis height of the lathe to equip with. If a different setup is required,
please proceed as follows:
Two different supports are available, depending on the axis height to reach :
Loose the nut (A).
Set the nut (B) to make sure the chain loader lays on the support.
Check that a 10 mm gap remains between the chain loader side plates and the main access
cover. The cover must be opened freely, without scratching against the chain loader hooks.
900 -1000 055-008-014
1000 -1200 055-008-024
