CHAPTER 3: SETTING INTO OPERATION 19
MOVE S2
From this point on, the bar feeder is unpacked in the same way as when delivered on a pallet.
The MOVE S2 bar feeder is delivered as follows:

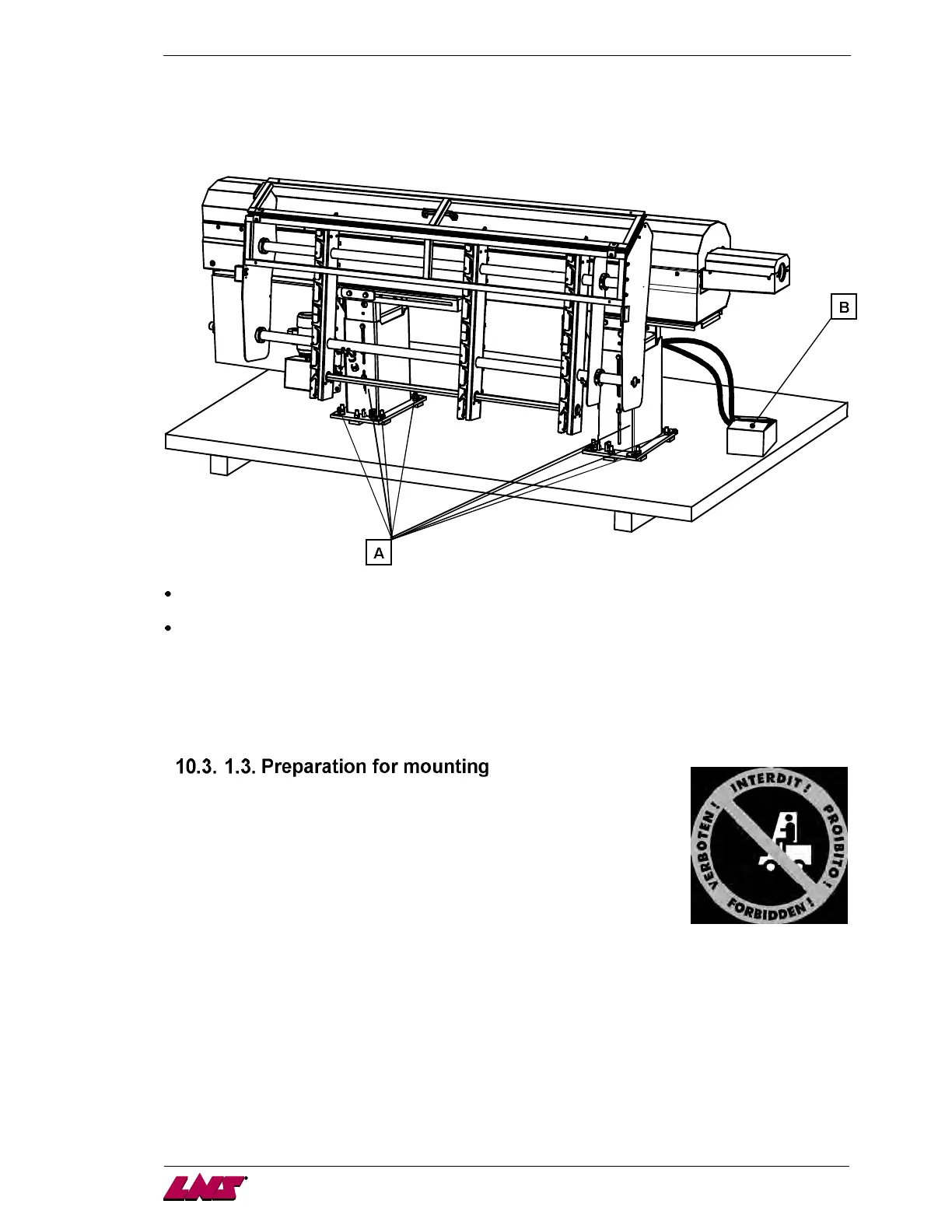

The bar feeder is completely assembled and fastened to the pallet by 8 screws (A).
The remote control and the interface plug are packaged in a separate box (B), with the technical
documentation and the accessories.
Take out the parts, and place them in an easily accessible area for mounting the bar feeder
.
For mounting and installing the bar feeder, it is advisable to contact LNS or its
local representative. The latter cannot be held responsible for any malfunction
resulting from an incorrect installation in which they did not take part.
