LNS QUICK SIX S2 - Pneumatic Valve Battery

CHAPTER 4: OPERATION 15
MOVE S2

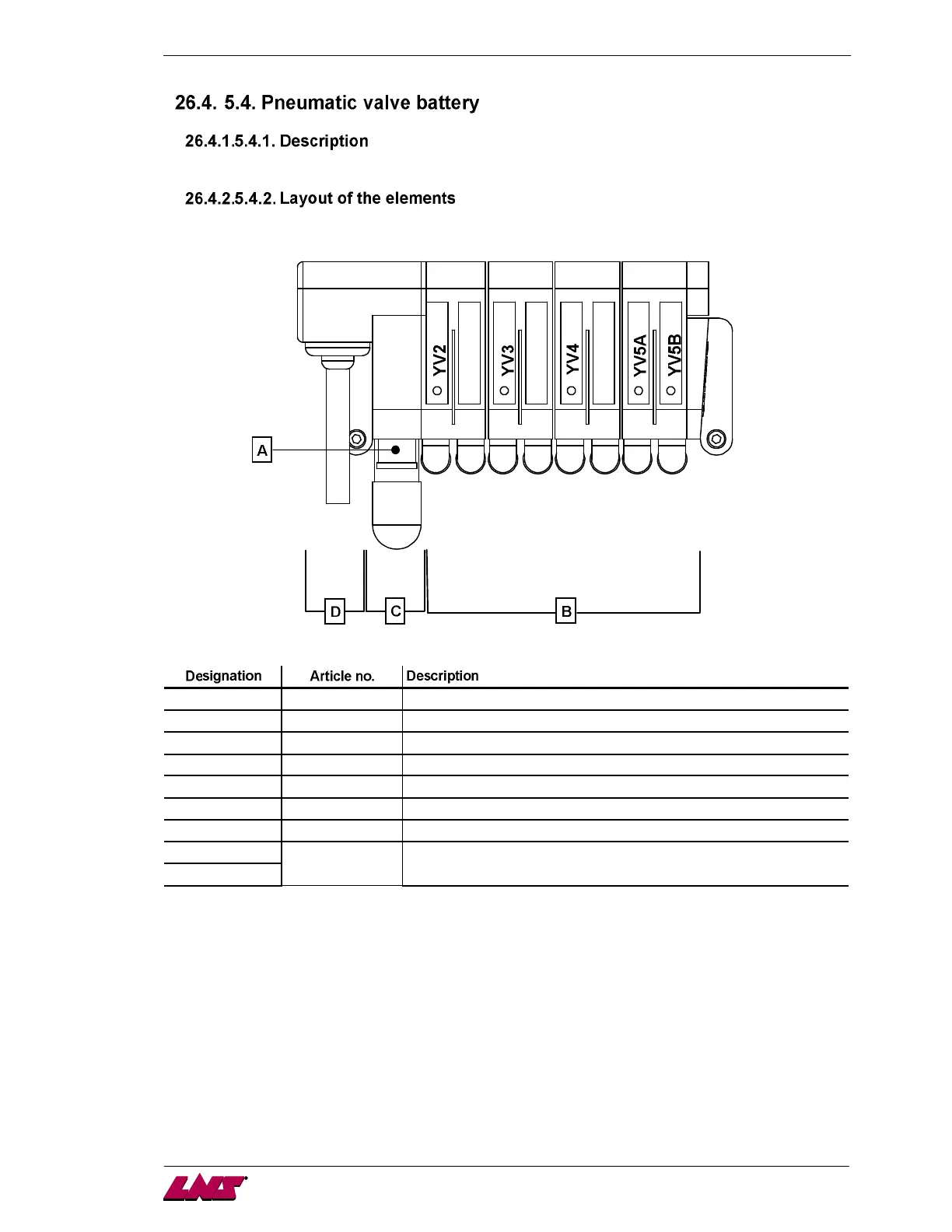

The pneumatic battery includes the control and monitoring elements of the bar feeder pneumatic circuit.
A 3.583 Inlets
B 3.582 Outlets
C 3.580 Silencer
D 4.178 Control connection plug
YV 2 3.578 Valve for bar stock laying fingers
YV 3 3.578 Valve for air blast control
YV 4 3.578 Electro valve pusher guide
YV5A
3.579 Valve Switch SQ1 protection – pusher lift valve
YV5B
