CHAPTER 4: OPERATION 3
MOVE S2

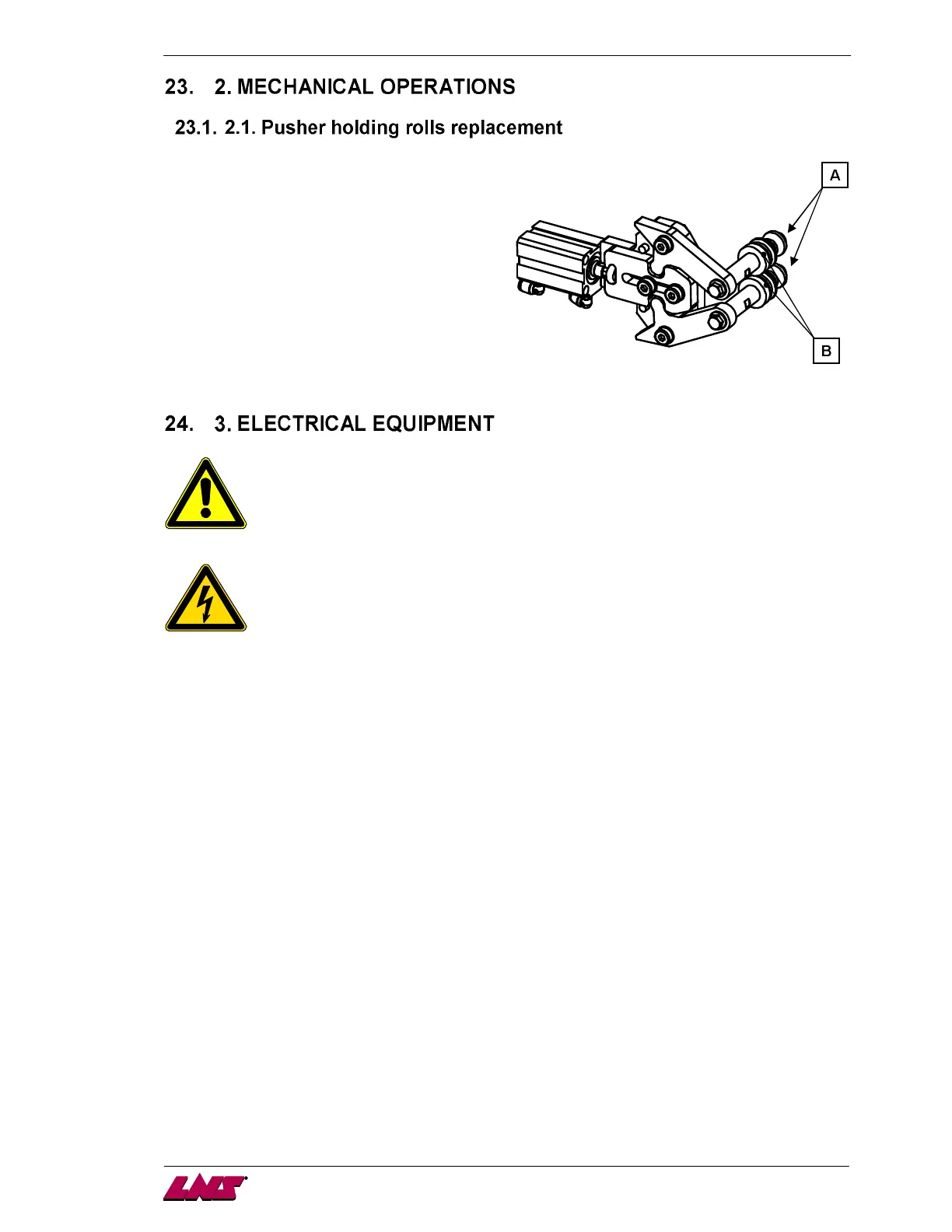

When worn out, the pusher holding rolls must be replaced:
1. Remove the rest cover located at the front of the bar feeder.
2. Loose the holding screws (A).
3. Remove the rolls (B).
4. Install the new ones.
5. Tighten the screws (A).
6. Put back the rest cover.
Please read the safety instructions provided at the beginning of this manual before
handling the following devices.
Particular attention should be given to the handling of electrical elements because of risks
of electrocution. In case of possible electrical malfunctions, it is advisable to contact LNS
or its local representative.
This chapter contains all of the elements regarding the electrical circuit of the bar feeder. The electrical
parts, and groups, which may require a setting, at some time or other, are described herein in detail.
Whenever possible, the article numbers of the elements are shown in tables below each drawing. When a
group of elements is indicated, look for the element and then write down the ordering number of the
desired element.
