6 CHAPTER 4: OPERATION

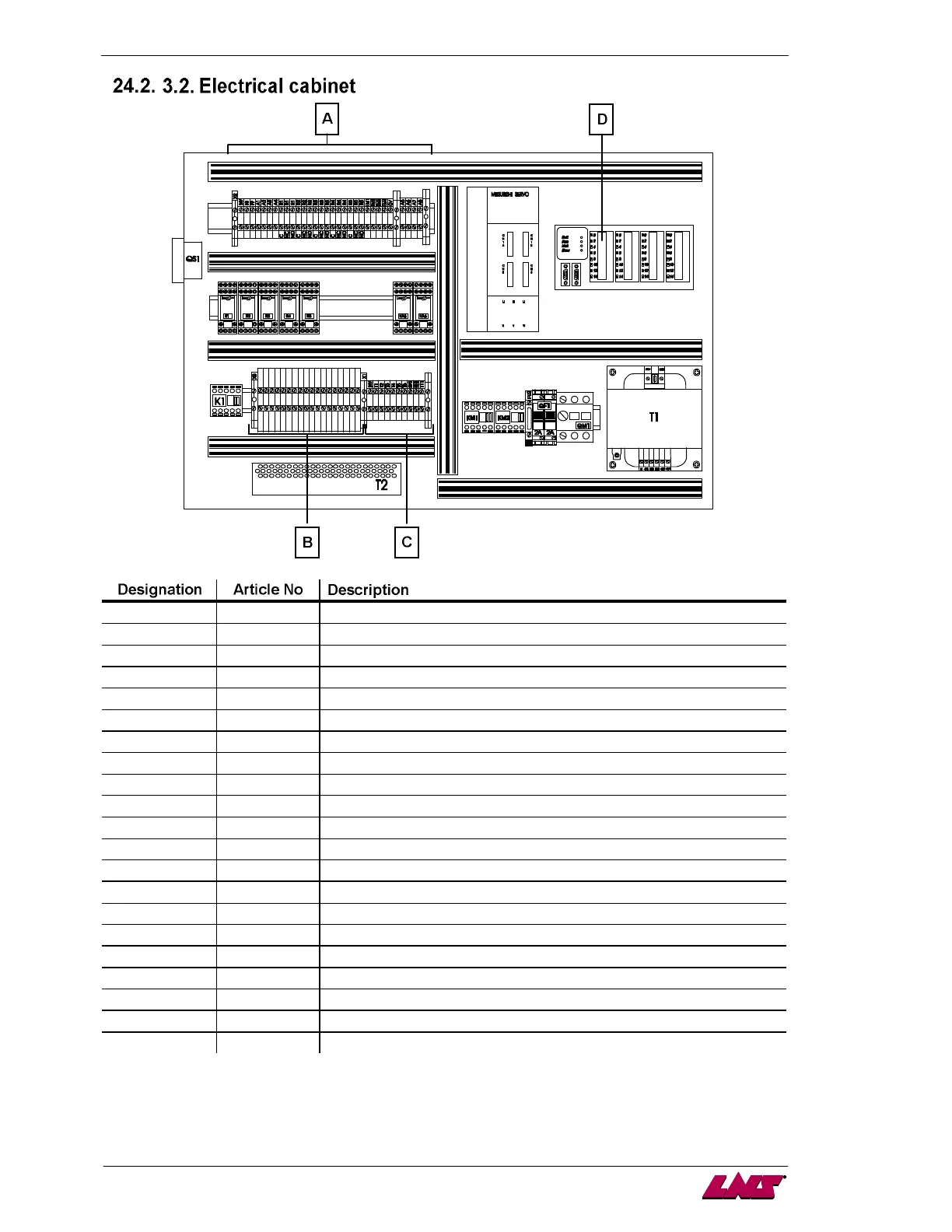

MOVE S2
A - Interface terminal blocks X2
B - Valves terminal blocks X3 (YV2 – YV11)
C - Safety terminal blocks X1 (T1 – T11)
D 4.907 Programmable controller PCD3 (PLC)
K1 4.507 Safety chain control
AJ1 44.0105 Servo amplifier 400 W
FU1 4.419 Automatic front rest fuse 2 A
KA5 4.606 Relay dropping fingers to upper position
KA6 4.606 Relay dropping fingers to lower position
KM1 4.507 Hydraulic pump motor M1 relay
KM2 4.507 Chain loader motor M3 relay
QF1 4.815 Circuit breaker 4 A
QM1 4.503 Main circuit breaker 2.5 to 4 A
QS1 4.242 Main switch
R1 4.606 Alarm relay
R2 4.606 Bar feeder loading cycle relay
R3 4.606 End of bar relay
R4 4.606 Headstock release relay
R5 4.606 Auxiliary end of bar relay
T1 4.769 Transformer 1-ph
T2 4.779 Power supply 24 VDC, 150 W
