CHAPTER 4: OPERATION 7
MOVE S2

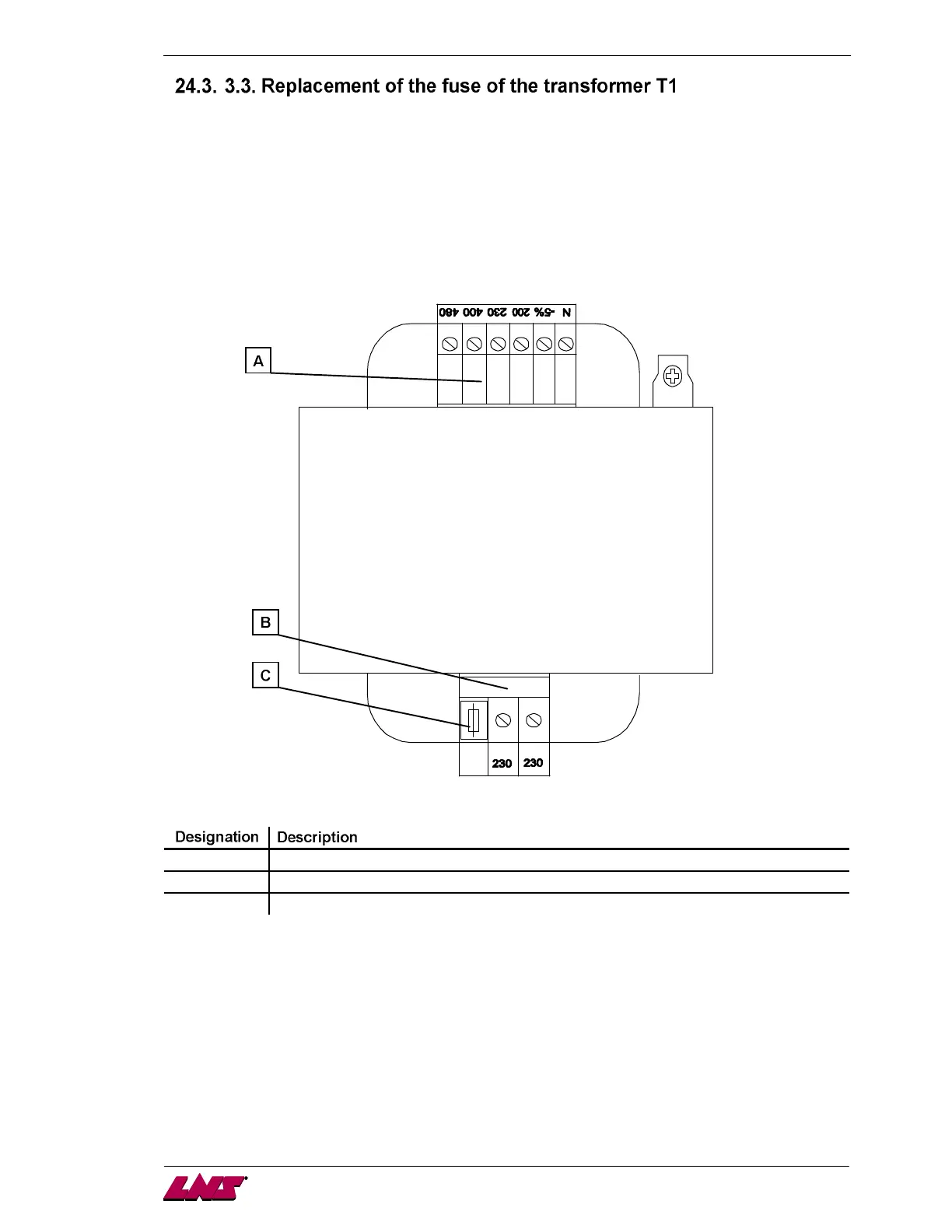

To replace the fuse:
1. Unscrew the cap a quarter of a turn to the left;
2. Remove and replace the fuse with an identical one, and put the cap back.
On the primary side, the transformer accepts a voltage of 200-480 V, 50 Hz/60 Hz. Measure the power
provided by the lathe, and, if necessary, adapt the cable on the power terminal block (A).
Although fuses seldom need replacing, is it advisable to keep some spare ones on hand.
A Primary terminal block, 200-480V, 50 Hz/60 Hz ± 15%
B Secondary terminal block, 230 V
C Fuse 3.15 A (230 VAC)
The T2 power supply has an output of 24 VDC and powers the rest of the bar feeder's functions. The
transformer T2 output is protected by a fuse installed in a support in the electrical cabinet.
