CHAPTER 4: OPERATION 13
MOVE S2
The guiding concept of the MOVE S2 bar feeder consists mainly in maintaining the bar suspended in an
oil bath.
The hydraulic oil is contained in the machine itself. Aspirated by a pump motor, it is injected into the front
rest and the guiding blocks.
A pressure switch measures the pressure at the outlet of the pump.
A level allows the monitoring of the filling rate of the hydraulic tank.

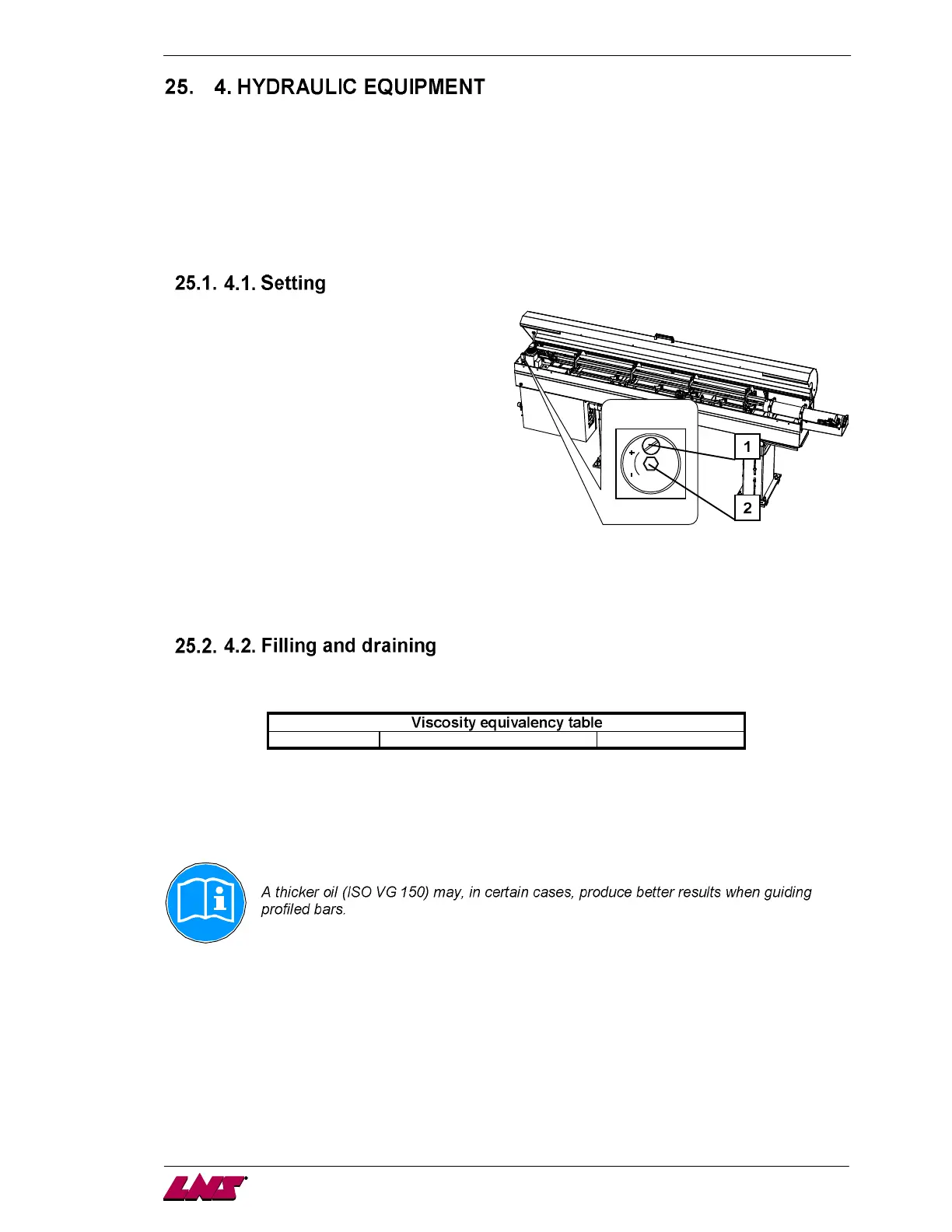

The pressure is constantly monitored by a pressure
switch set at the factory at a point of release of 0.5
bar. It may be adjusted, if necessary, as follows
1. With a screwdriver, unscrew the locking
screw (D).
2. Insert a hex head wrench (5 mm) into the
center of the pressure switch (E).
By turning clockwise, the release of the
pressure switch will take place at a pressure
higher than the original setting. Turning in the
opposite direction, will produce the reverse.
1. When the adjustment is completed, retighten the locking screw (D).
The bar feeder is delivered without oil. Depending on the machine length, hydraulic oil of the type
indicated below must be provided by the client. Put oil directly in the hydraulic tank.
Consult your supplier who will recommend the correct oil for you.
To drain the bar feeder, place a container with sufficient capacity underneath the tank, and unscrew the
drain plug.
