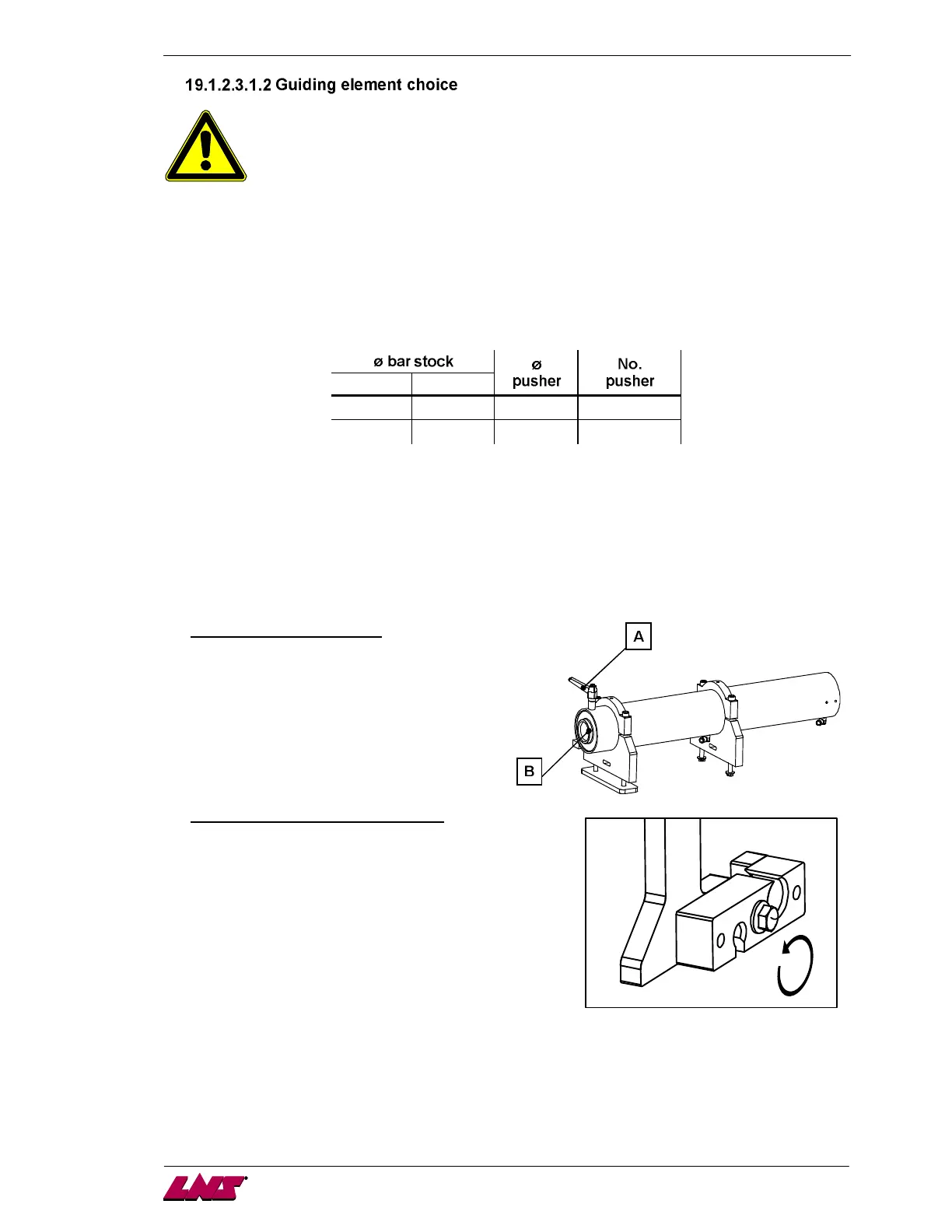

MOVE S2
Please read the safety instructions provided at the beginning of this manual before
handling the following devices.
The guiding elements are sensitive to corrosive products. Please do wipe or clean the
element with any corrosive detergent. Use a dry cloth only to wipe the oil off the element.
Hydraulic oil is injected in the guiding element, which permits to hold the rotating bar in the center of the
guiding element.
Depending on the bar diameters to guide, a guiding element changeover and/or the pusher changeover
may be necessary. A standard pusher of ø 15 mm is delivered, but an optional pusher ø 8 mm is
available upon request.
2 ranges of diameters are defined to select your pusher:
de à
8 19 8 024-030-023
20 80 15 024-030-013
XX (inner ø of the guiding element) = bar stock ø + 1 mm
1. On the remote control, use the manual functions to move back the pusher to its reference, in lifted
position.
2. Select the guiding element changeover function. This will move down the dropping fingers; the bar
feeder will then wait for the user confirmation.
3. Open the main access cover.
4. Guiding element changeover:
4.1. Loose the quick screw (A)
4.2. Remove the guiding element (B)
4.3. Insert the new guiding element
4.4. Tighten the quick screw (A)
5. Pusher changeover (only if necessary):
5.1. Slide out the pusher from its locking support.
5.2. Remove the pusher by sliding it out to the back of the
bar feeder.
5.3. For each pusher guide, loose the holding screw, turn
180° the synthetic part, tighten the holding screw.
5.4. Put the new pusher in all the pusher guides from the
back of the bar feeder.
5.5. Lock the pusher back into the pusher locking support.
