26 CHAPTER 3: SETTING INTO OPERATION
MOVE S2
The inputs and outputs designation of the interface on the PLC are indicated in chapter 5. Maintenance,
section 3.6.

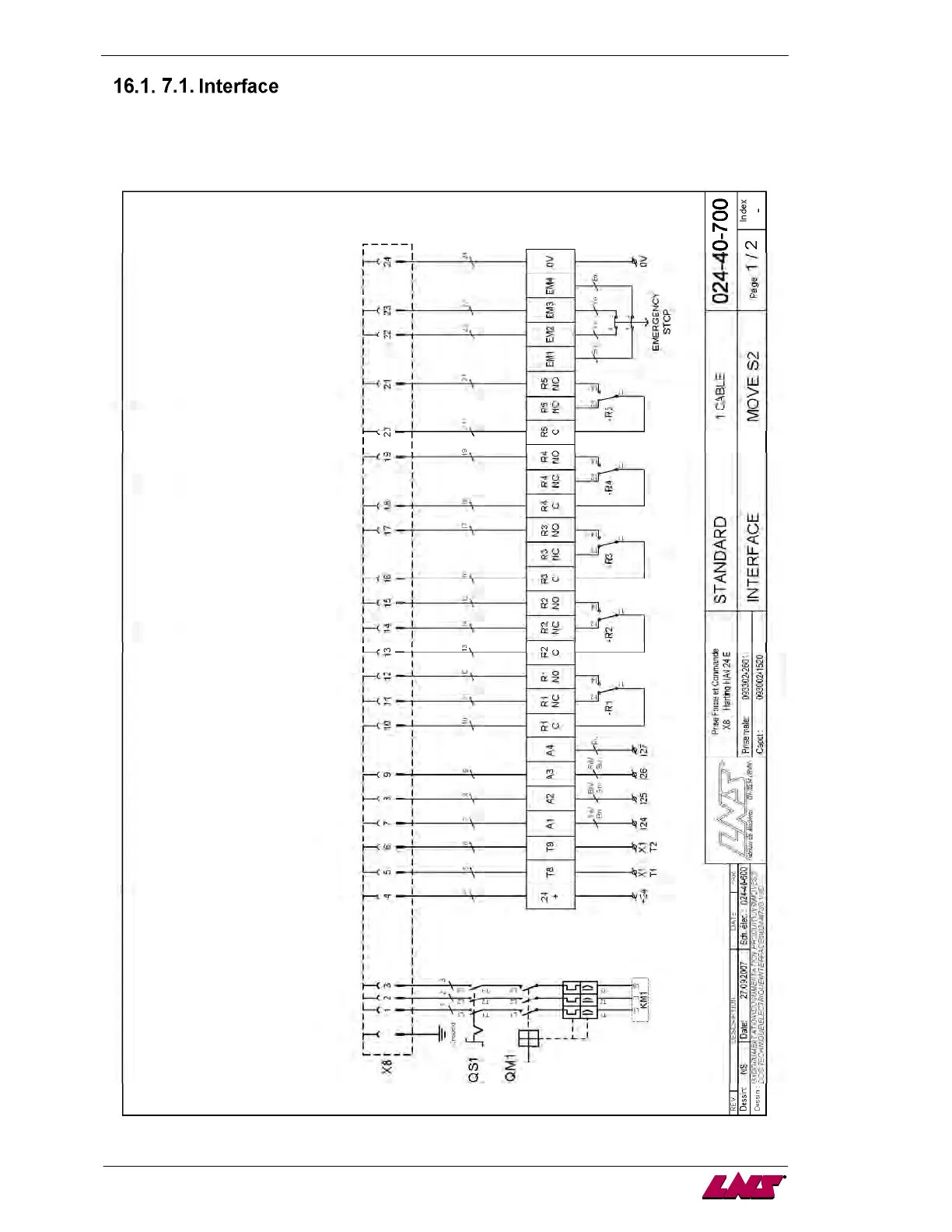

The interface diagrams below are provided as examples. The diagram corresponding to your bar feeder
is located in the electric cabinet, with the electric diagram.
