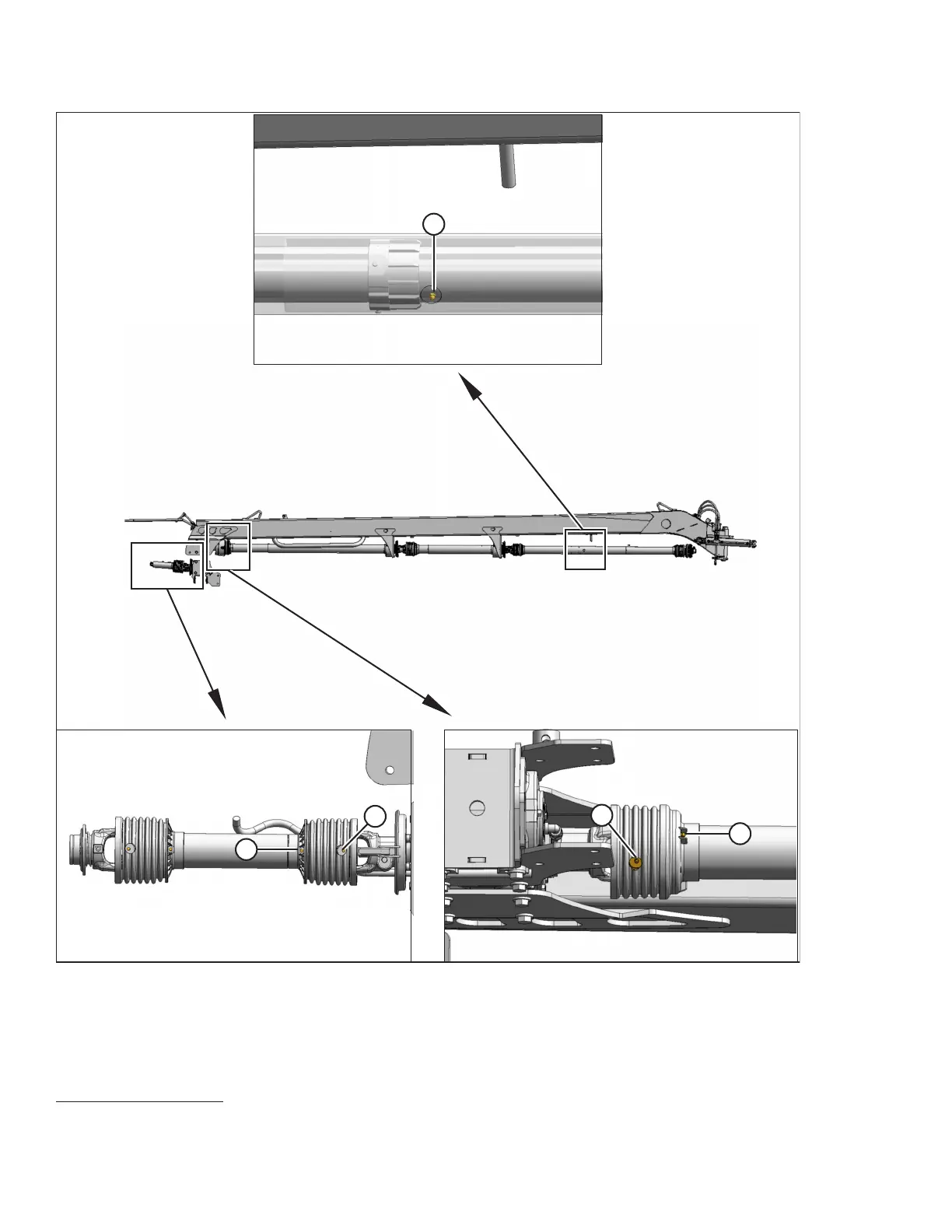

Figure 7.8: Lubrication Points
A - Slip Joint, Drivelines (R113 PT, Two Places) (R116 PT, Three Places)
4
B - Guard, Driveline
C - U-Joint, Main Driveline D - U-Joint, Primary Driveline (Two Places)
E - Guard, Primary Driveline (Two Places)
LUBRICATING THE ROTARY DISC PULL-TYPE
4. Use high-temperature, extreme-pressure (EP2) performance grease with 10% max molybdenum disulphide
(NLGI grade 2) lithium base.
