MacDon R113 - Page 152

215585 144 Revision A

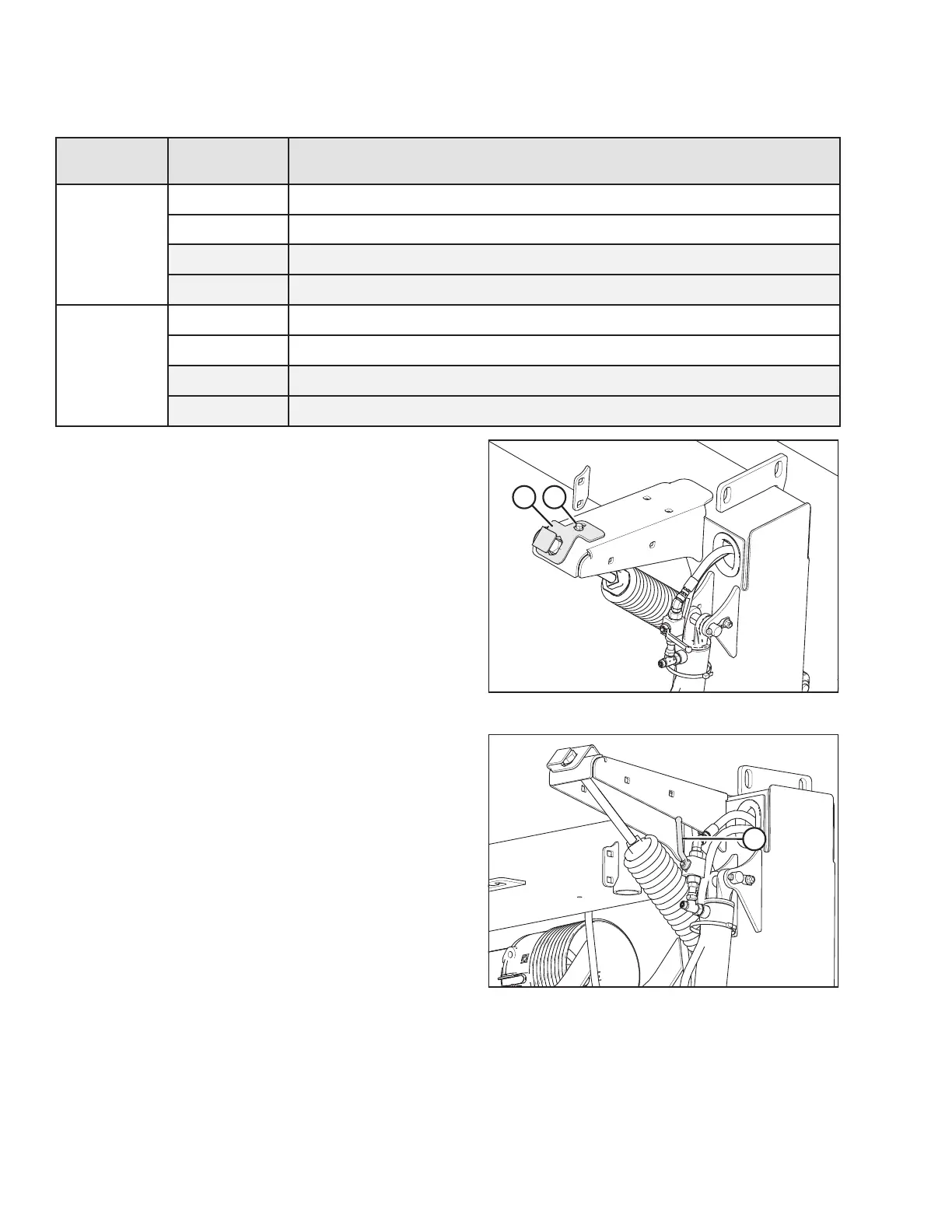

Table 8.1 Float Setting Starting Point
Model
Conditioner
Type
Length of Exposed Thread
None
280–290 mm (11 – 11 5/32 in.)
R113 PT
Roll
120–130 mm (4 3/4 – 5 1/8 in.)
Finger
Right: 145– 155 mm (5 3/4 – 6 1/8 in.)
Finger
Left: 15 –125 mm (4 1/2 – 4 15/16 in.)
None
230–240 mm (9 – 9 1/2 in.)
R116 PT
Roll
70–80 mm (2 3/4 – 3 1/8 in.)
Finger
Right: 95–105 mm (3 3/4 – 4 1/8 in.)
Finger
Left: 65 –75 mm (2 1/2 – 3 in.)

$ %
Figure 8.14: Adjuster Bolt Cover Plate
8. Reposition cover plate (A) over float spring adjuster bolt as
shown. Secure cover plate (A) by tightening bolt (B). Repeat
on opposite side.

$
Figure 8.15: Cylinder Lock-Out Valve – Open Position
9. Open lift cylinder lock-out valve (A) on each cylinder by
turning the handle to the open position (in line with
the hose).
10. To check float, lower the rotary disc pull-type to cutting
position, grasp the front corner of the rotary disc pull-type,
and lift; the weight should feel like approximately 45 kg
(100 lb.) at both ends.
11. Repeat adjustment procedures until the desired weight is
achieved at both ends of the rotary disc pull-type.
PERFORMING PREDELIVERY CHECKS
