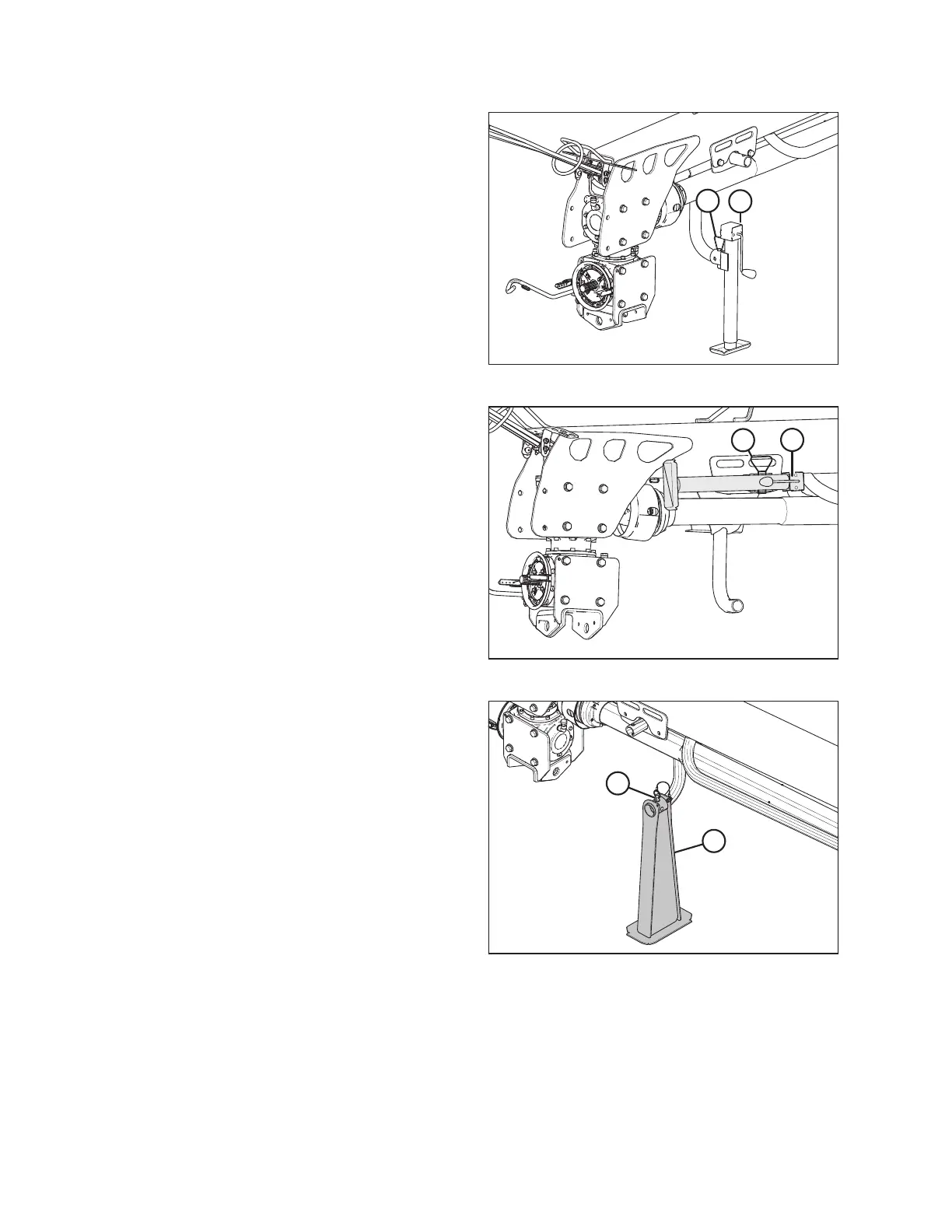

Figure 9.1: Drawbar Jack in Working Position
3. If equipped with a drawbar hitch: Turn the handle on jack
stand (A) to raise the stand. Remove pin (B) and stand (A).
$
%
Figure 9.2: Drawbar Jack in Storage Position
4. If equipped with a drawbar hitch: Move jack (A) to the
storage position on the side of the hitch, align the
mounting holes, and secure with pin (B).
$
%
Figure 9.3: Two-Point Hitch Jack in Working Position
5. If equipped with a two-point hitch: Raise the rotary disc
pull-type slightly off the ground using the tractor. Remove
pin (B) and stand (A).
TRANSPORTING THE ROTARY DISC PULL-TYPE
