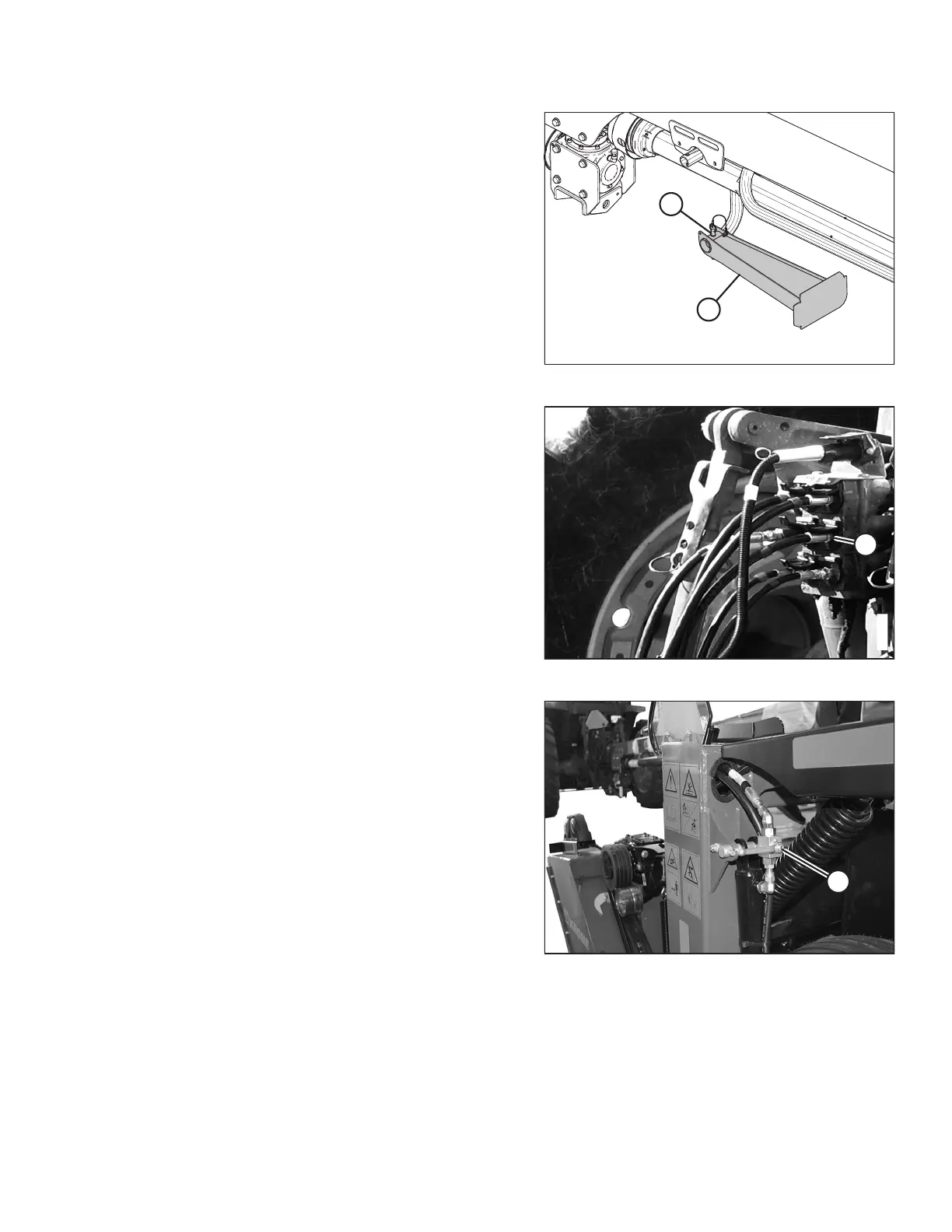

Figure 9.4: Two-Point Hitch Jack in Storage Position
6. If equipped with a two-point hitch: Insert pin (A) and
secure stand (B) in storage position.
Figure 9.5: Hydraulic Connection
7. Connect the hitch swing cylinder hoses (collars with #2) to
tractor’s hydraulic circuit (A). For instructions, refer to 5.3.3
Connecting Hydraulics, page 106.
Figure 9.6: Cylinder Lock-Out Valve in Closed Position
8. Raise the rotary disc pull-type fully and close the lift
cylinder lock-out valve by turning handle (A) to the closed
position (90° to the hose). Repeat on the opposite side.
9. Swing the rotary disc pull-type completely to the left, then
completely to the right. Repeat three or four times to
charge the hitch swing circuit.
10. Swing the rotary disc pull-type so that it is centered behind
the tractor.
TRANSPORTING THE ROTARY DISC PULL-TYPE
