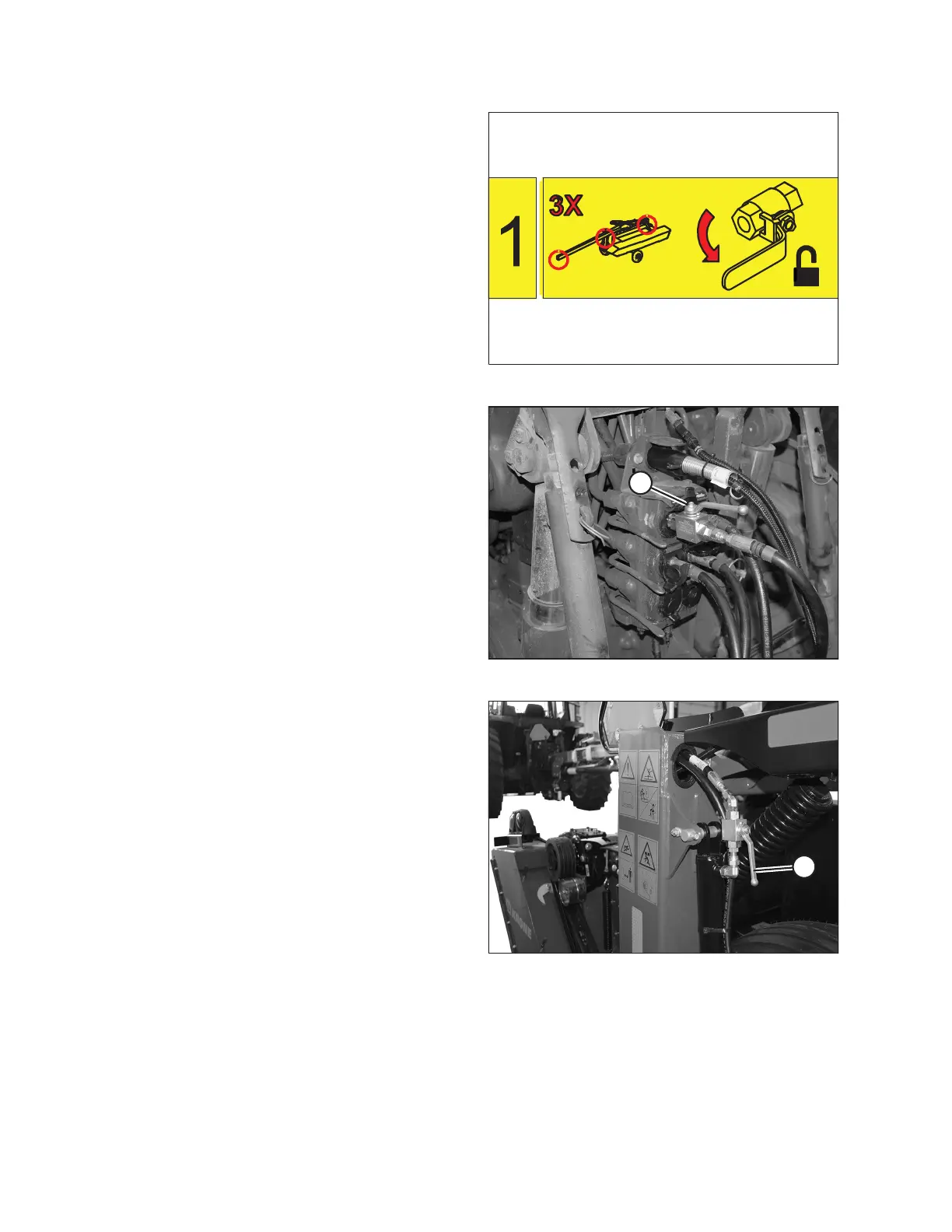

Figure 9.27: Hydraulic Lockout
3. Open the steering lock-out valve and the two lift cylinder
lock-out valves by turning the handles to the open position.
$
Figure 9.28: Steering Lock-Out Valve
Steering lock-out: Open the valve by turning handle (A) to
the open position (in line with the hose).
$
Figure 9.29: Lift Cylinder Lock-Out Valve
Lift cylinder lock-out: Open the valve by turning handle (A)
to the open position (in line with the hose). Repeat on
opposite side.
TRANSPORTING THE ROTARY DISC PULL-TYPE
