215585 177 Revision A

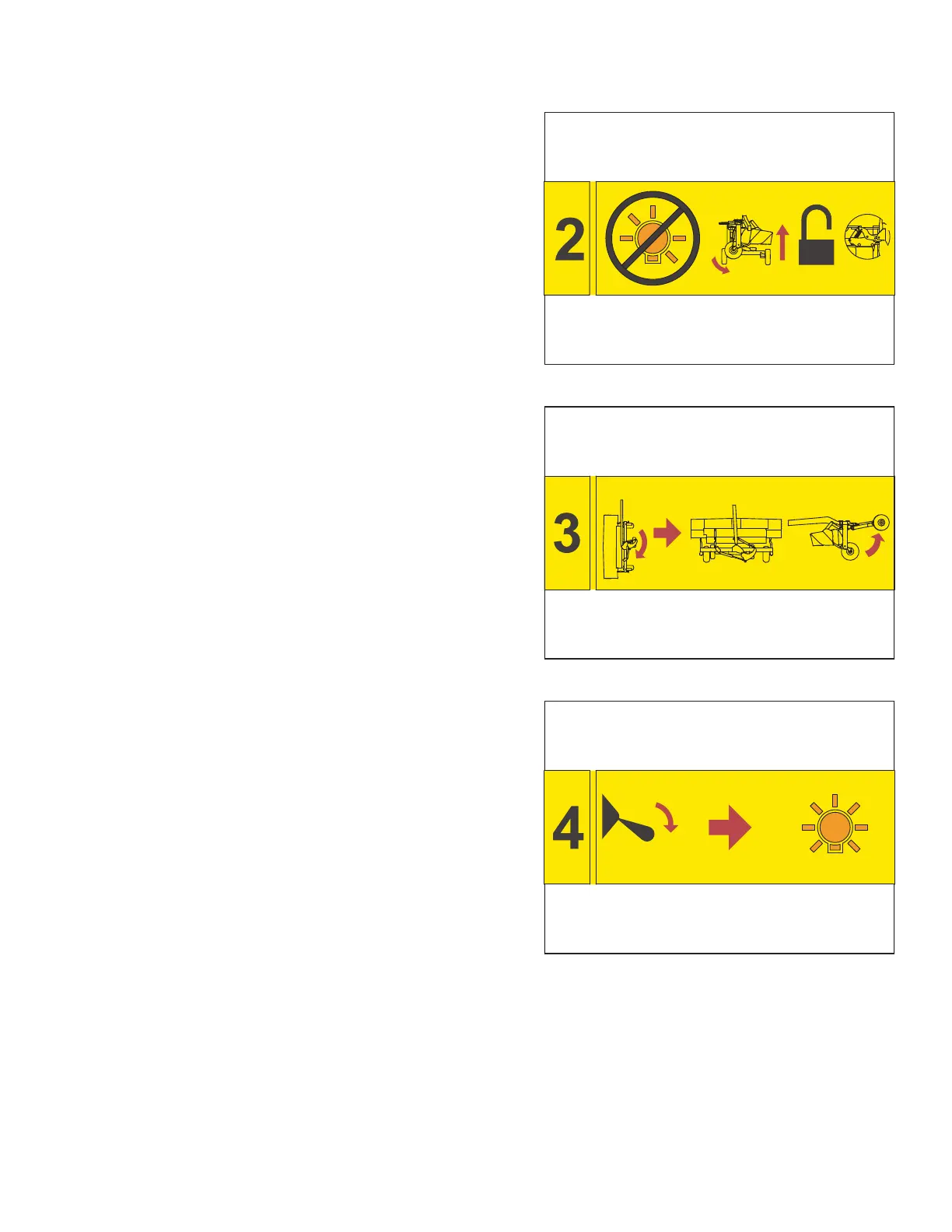

Figure 9.30: Raising Rotary Disc Pull-Type
4. While the light is NOT illuminated, operate the lift control
lever (as if raising the rotary disc pull-type) to fully extend
the lift cylinders and raise the cutterbar off the transport
assembly support. The carrier frame latch will
automatically open.
Figure 9.31: Rotary Disc Pull-Type Rotation
5. Operate the hitch swing control lever to rotate the rotary
disc pull-type to the right. The rotary disc pull-type will stop
when it reaches operating position.
NOTE:
A sequenced movement transitions the rotary disc pull-type
from transport to field mode. This is accomplished by the
rear transport swing cylinder, and the transport deploy
cylinder. During the transition, continue to hold the hitch
swing lever in the active position to allow oil to be supplied
to the two cylinders sequentially.
Figure 9.32: Transport Switch
6. Continue operating the hitch swing control lever to fully
raise the transport assembly and lower the rotary disc pull-
type onto the field wheels.
7. Move transport switch to the lower position and ensure
that the light on the control box is illuminated. Transport
conversion is now complete and the hitch swing circuit is
active.
TRANSPORTING THE ROTARY DISC PULL-TYPE
