Installing Transport Valve
NOTE:
Cover support bracket removed from illustrations for clarity.

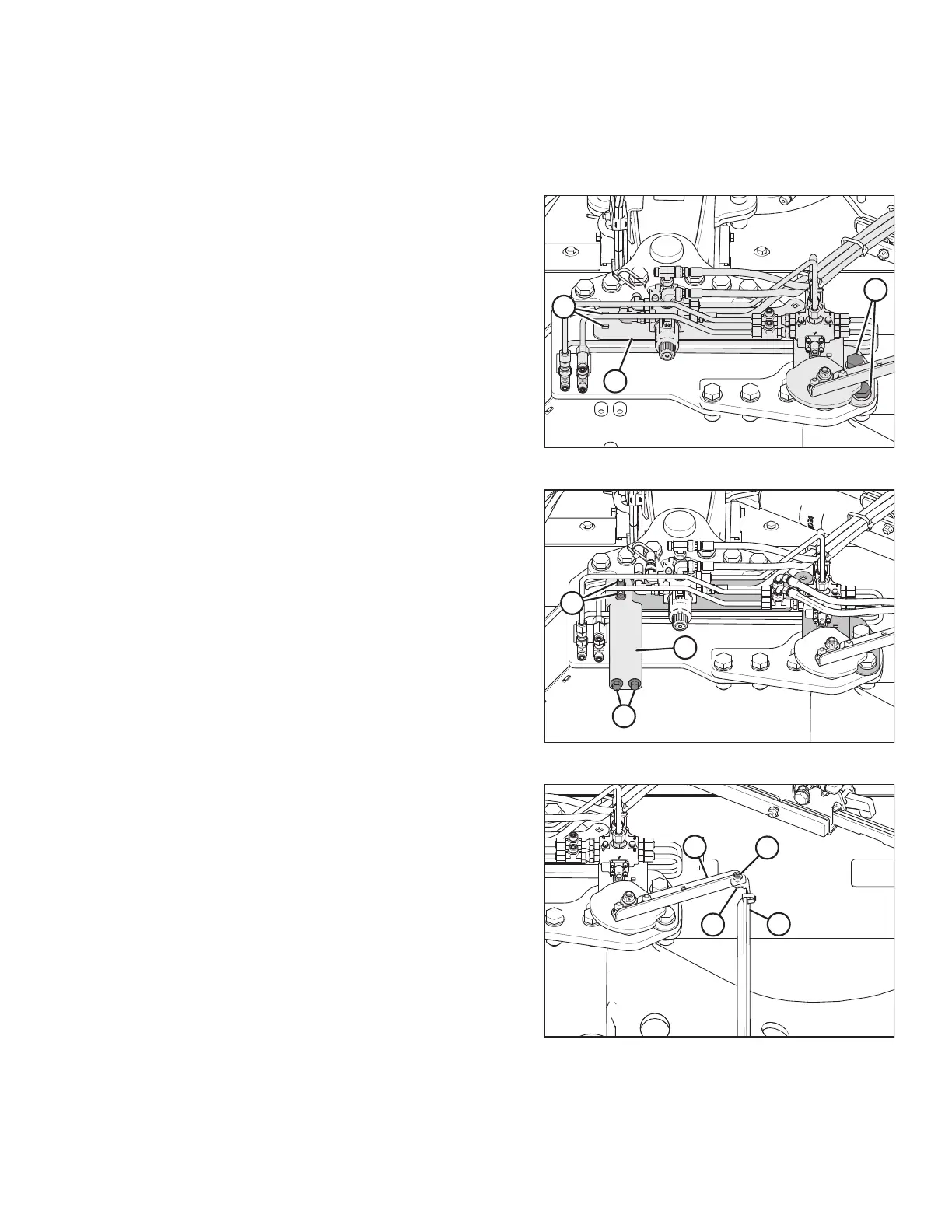

Figure 3.74: Selector Valve
1. Retrieve valve assembly (A) from the pallet.
2. Position valve assembly (A) on the carrier hitch pin plate
as shown.
3. Install two M20 x 65 bolts (B), hardened washers, and nuts.
4. Retrieve two M10 x 20 bolts from the shipping bag and
install bolts at location (C) with threads facing up. Install
nuts, but do NOT tighten.
5. Torque bolts (B) to 461 Nm (340 lbf·ft).
Figure 3.75: Support Plate
6. Install support plate (A) and secure it with bolts (B).
7. Install bolts (C), but do NOT tighten.
Figure 3.76: Support Plate
8. Remove nut (A) from support (D).
9. Install bolt (B) through support (D) and support (C), and
then reinstall nut (A).
ASSEMBLING THE ROTARY DISC PULL-TYPE – WITH OR WITHOUT THE DEALER-INSTALLED TRANSPORT
