215585 48 Revision A
Installing secondary lift hose for field wheels
NOTE:
The secondary lift hose is required to lift the field wheels fully into storage position when the rotary disc pull-type is in
transport mode.
Retrieve the following secondary lift hose from the shipping bag:
• R113 PT: Use hose MD #224160.
• R116 PT: Use hose MD #224162.
$
%
&

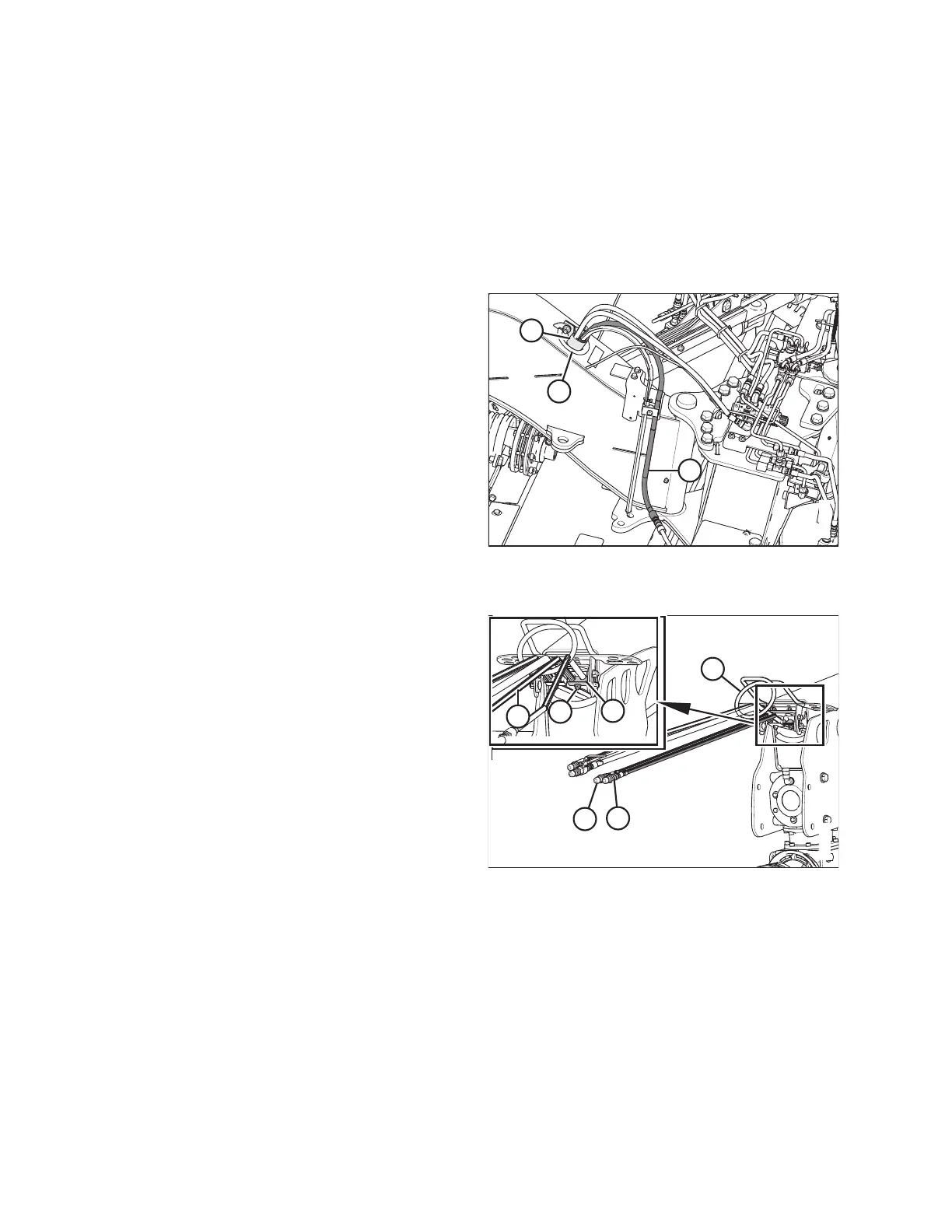

Figure 3.97: Lift Hoses
18. Retrieve the blue collars with the number one (blue
collar #1) on them from the shipping bag. Place one collar
on each end of secondary lift hose (B).
19. Undo adjustable strap (A) around hoses at the aft end of
the hitch.
20. Locate the green wire preinstalled in the hitch for pulling
hoses through the hitch.
NOTE:
If you are installing a hydraulic center-link, pull the
hydraulic hoses through the hitch at the same time as the
lift hose.
21. At the rear of the hitch, feed the male ORB end of hose (B)
into access hole (C). Route the hose through the hitch to
the opening at front.
$
%
&
'
(
$
Figure 3.98: Lift Hoses
22. Position long hose (A) so that the exposed length at the
front of the hitch matches existing hose (B). Route the hose
through guide (C).
23. At the front of the hitch, loosen nut (D) on hose clamp (E)
until hose (A) can be positioned in the clamp.
24. Tighten nut (D).
ASSEMBLING THE ROTARY DISC PULL-TYPE – WITH OR WITHOUT THE DEALER-INSTALLED TRANSPORT
