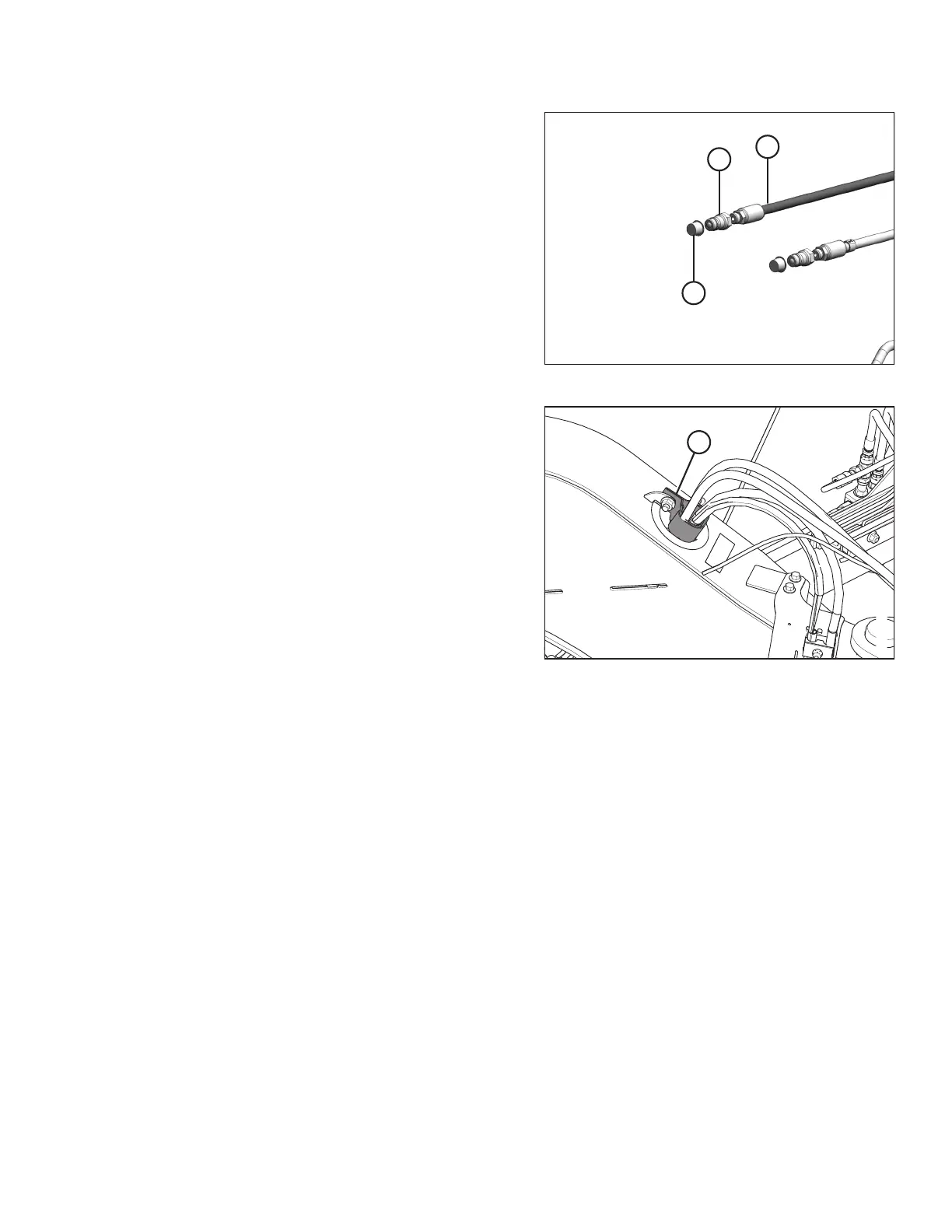

Figure 3.99: Lift Hose Fittings
25. Retrieve ORB-8 coupler (A) and plastic cap (B) from the
hardware bag.
26. At the forward end of the hitch, install coupling (A) and
plastic cap (B) onto secondary lift hose (C). Do NOT attach
the hoses to the tractor at this time.
Figure 3.100: Lift Hoses
27. At the rear of the hitch, secure the hoses with adjustable
strap (A).
ASSEMBLING THE ROTARY DISC PULL-TYPE – WITH OR WITHOUT THE DEALER-INSTALLED TRANSPORT
