215585 50 Revision A
$
%
&
'
(

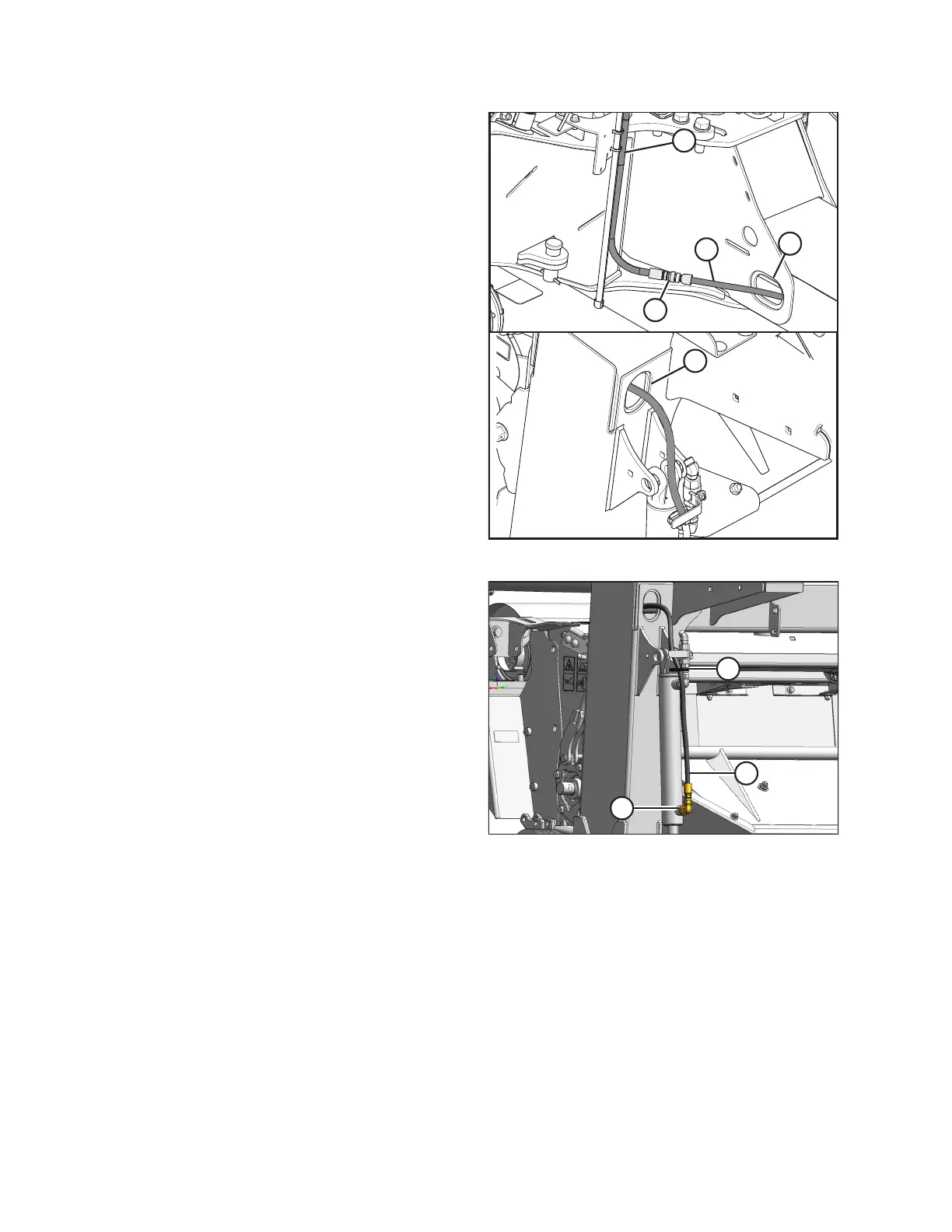

Figure 3.101: Lift Hose
28. Route hose (A) through opening (E) at the rear of
the frame.
29. Feed shortest hose (A) through opening (B) in the carrier
frame as shown with male end (C) at the hitch pivot.
30. Connect hose (A) (MD #247106) and hose (D)
(MD #224160) or (MD #224162) at the hitch pivot.
$
%
&
Figure 3.102: Lift Cylinder
31. Retrieve ORFS-6 x ORB-8 elbow from the hardware bag.
32. Remove the plug at the base of the lift cylinder and install
elbow (A) as shown.
33. Connect hose (B) to elbow (A) and tighten.
34. Tighten the remaining connections.
35. Secure hose (B) to the cylinder with a cable tie (C).
ASSEMBLING THE ROTARY DISC PULL-TYPE – WITH OR WITHOUT THE DEALER-INSTALLED TRANSPORT
