MacDon R113 - Page 74

215585 66 Revision A

$
%

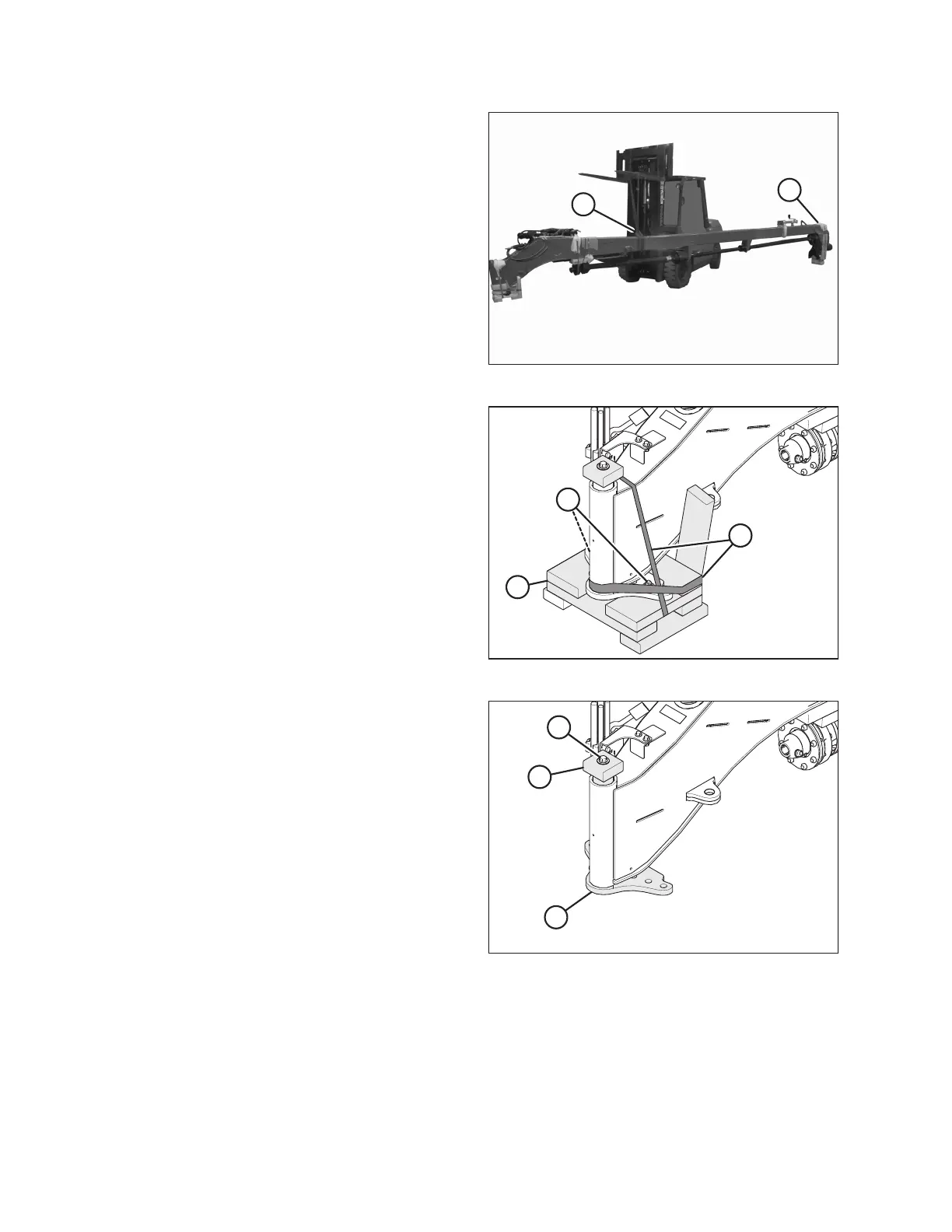

Figure 4.14: Lifting Hitch
5. Place sling (A) around the hitch frame. Adjust sling position
until hitch is balanced when lifting.
• R113 PT: Approximately 270 cm (106 in.) from the edge
of the tractor end (B) of the hitch
• R116 PT: Approximately 350 cm (138 in.) from the edge
of the tractor end (B) of the hitch
6. Raise the hitch approximately 610 mm (24 in.) off
the ground.

$
%
&
Figure 4.15: Hitch Packing
7. Cut banding (A) securing wood supports, then
remove supports (B).
8. Remove two bolts (C) securing wood support to hitch pin.
Discard bolts.

$
%
&
Figure 4.16: Hitch Packing
NOTE:
Hitch pin (C) is heavy. Support it appropriately before
removing bolt (A).
9. Support hitch pin (C), remove bolt (A) and wood block (B)
from top of pin, and remove hitch pin (C).
ASSEMBLING THE ROTARY DISC PULL-TYPE – FACTORY-INSTALLED TRANSPORT
