MacDon R113 - Page 75

215585 67 Revision A

$

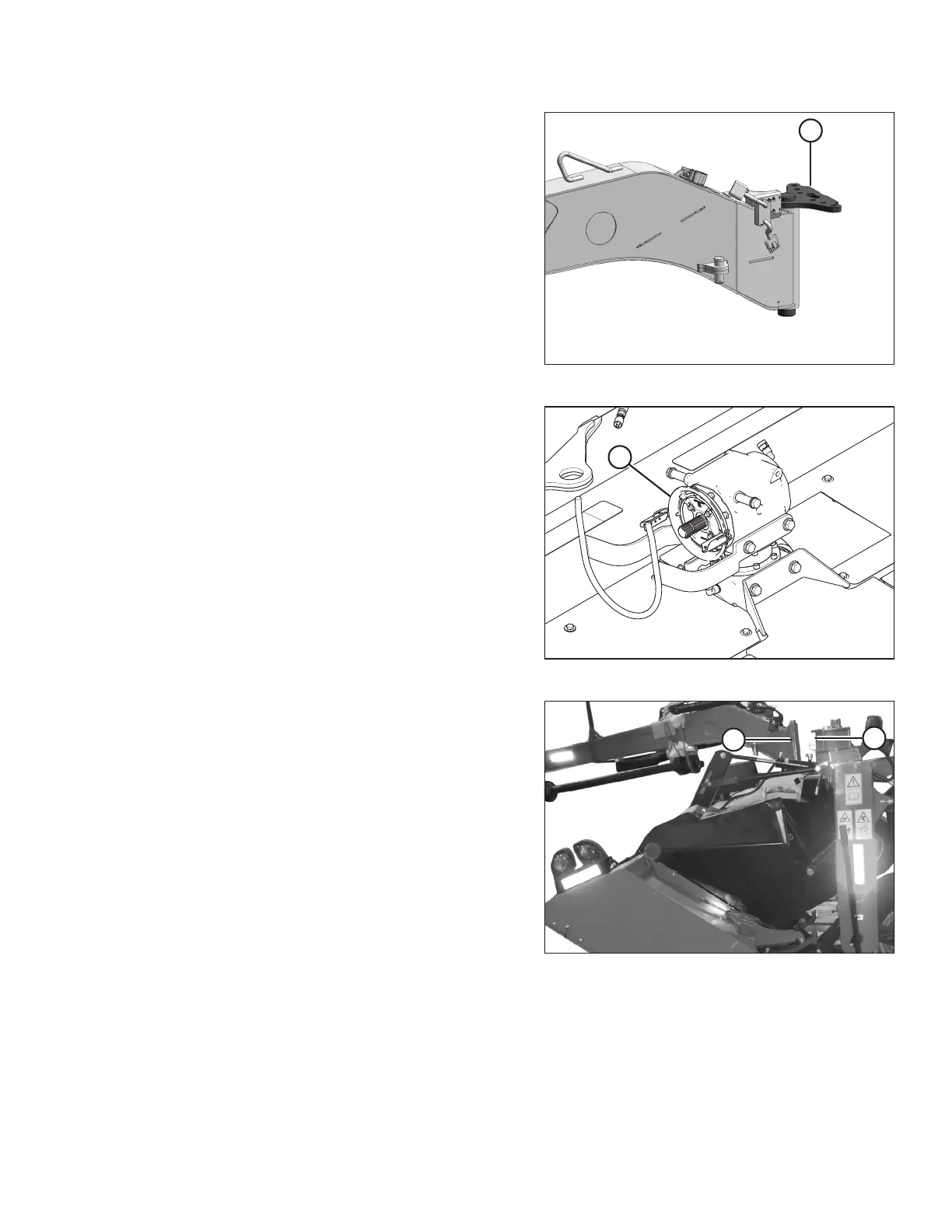

Figure 4.17: Pivot Pin
10. Install hitch pin (A) fully into hitch.

$
Figure 4.18: Driveline Shield
11. Pivot gearbox (A) towards the right side of the rotary disc
pull-type. This will increase the clearance to the driveline
clutch when installing hitch onto carrier frame.

$
%
Figure 4.19: Hitch to Carrier
12. Maneuver hitch pivot (A) into attachment location (B) on
carrier and line up pin with hole in carrier.
NOTE:
Align hitch pivot at a slight angle when installing to prevent
the driveline from contacting the header drive gearbox.
ASSEMBLING THE ROTARY DISC PULL-TYPE – FACTORY-INSTALLED TRANSPORT
