215585 73 Revision A

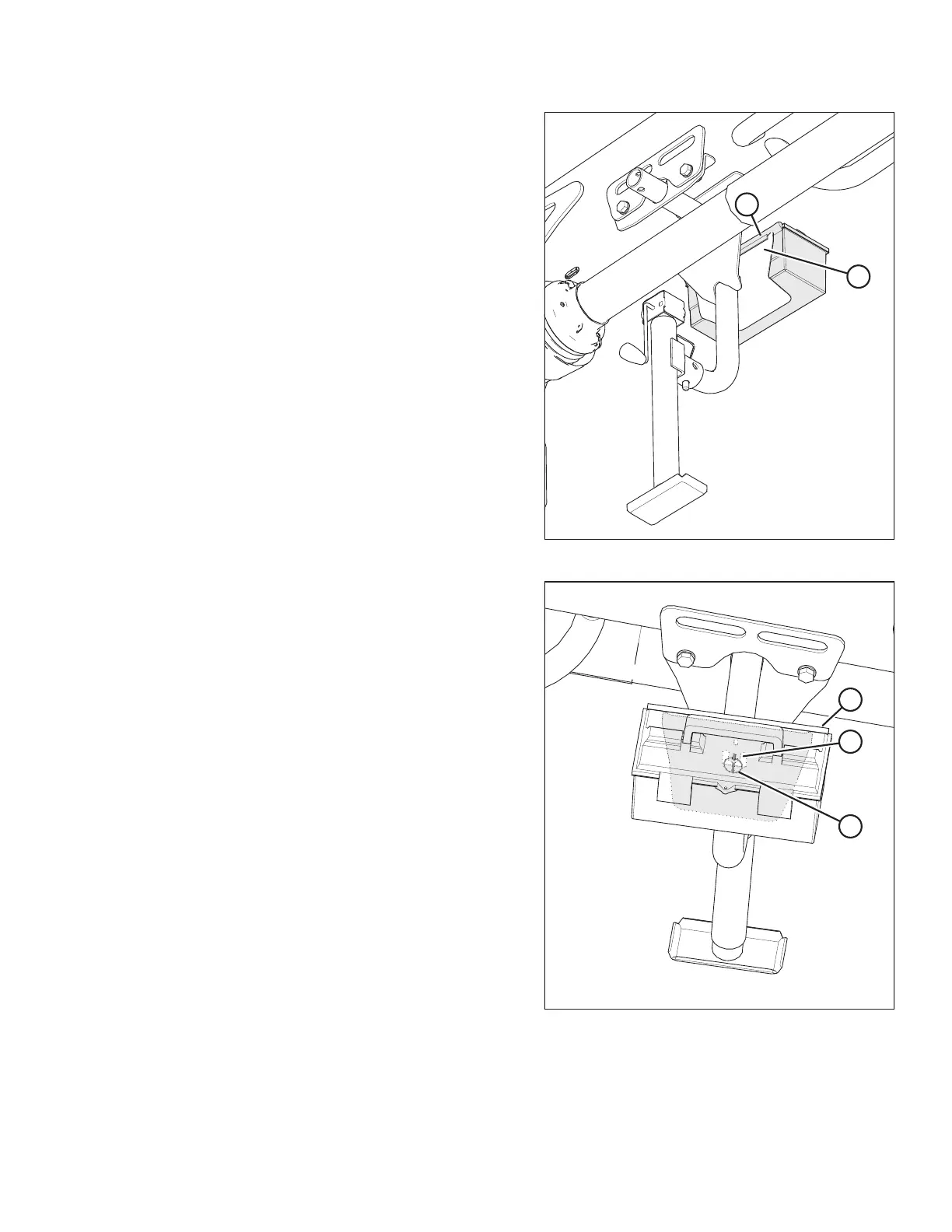

Figure 4.33: Toolbox Mounted on Jack Stand Bracket
24. Place toolbox groove (A) onto jack stand bracket (B)
as shown.
Figure 4.34: Toolbox Mounted on Jack Stand Bracket
25. Insert bracket tab (B) through the slot in the rear of
toolbox (A).
26. Retrieve lynch pin (C) from the bag of hardware supplied
with the jack. Secure toolbox (A) by inserting lynch pin (C)
into tab (B).
27. Install the hitch swing cylinder. For instructions, refer to 4.4
Installing Hitch Swing Cylinder, page 79.
ASSEMBLING THE ROTARY DISC PULL-TYPE – FACTORY-INSTALLED TRANSPORT
