215585 72 Revision A
%
$

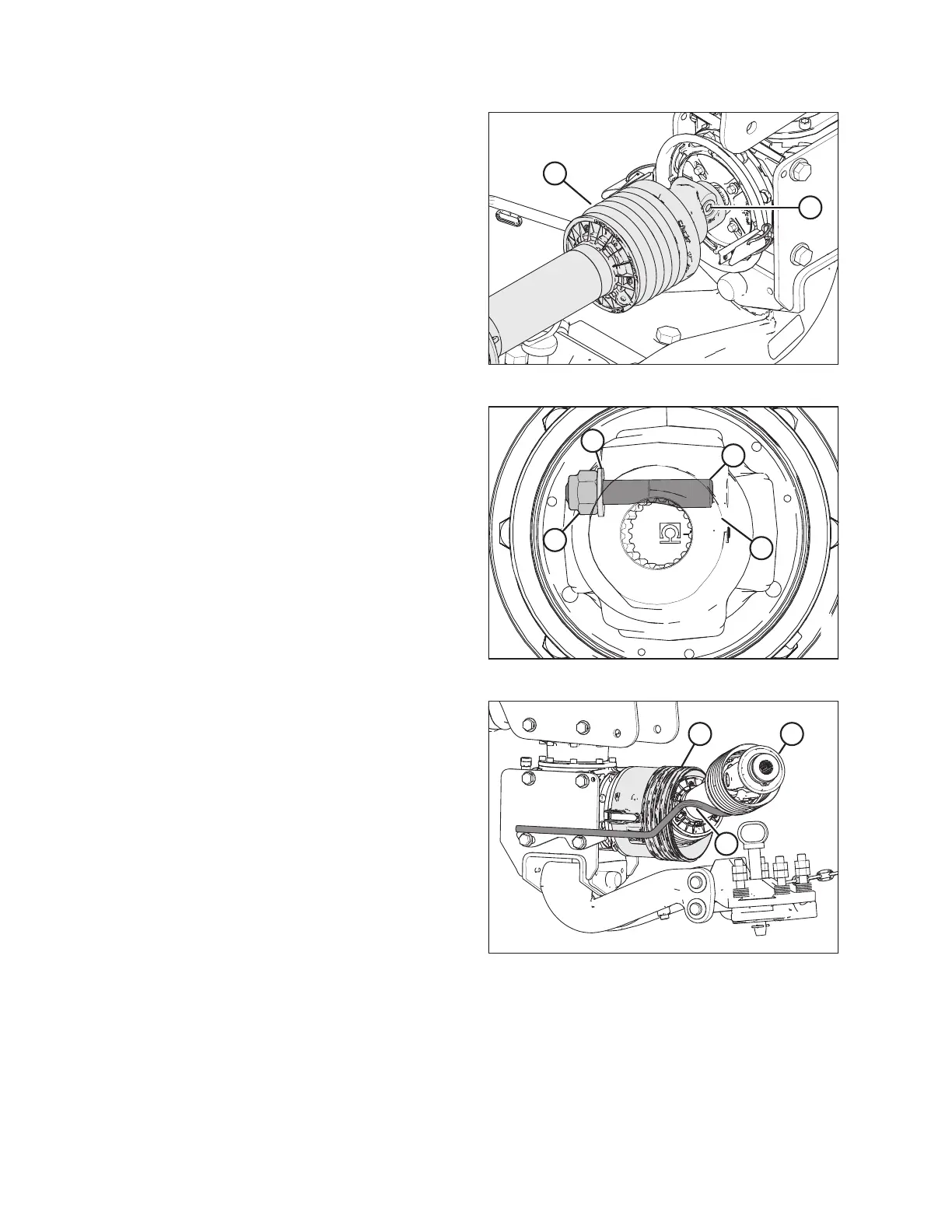

Figure 4.30: Primary Driveline
18. Slide primary driveline (A) onto the gearbox input shaft.
Align pinhole (B) in the yoke with the groove on the
input shaft.
$
%
&
'
Figure 4.31: Primary Driveline
19. Insert tapered pin (A) by hand. Ensure the pin lines up with
groove in yoke and is fully inserted. The notch in the pin
should be facing toward the shaft.
20. Clean threads on pin (A) after inserting pin.
21. Install washer (B) and nut (C) on the tapered pin and torque
nut to 149 Nm (110 lbf·ft). The end of the pin must be
recessed approximately 9–11 mm (0.35–0.43 in.) (D).
NOTE:
Do NOT use an impact wrench to install or torque the nut.
$ %
&
Figure 4.32: Cone Shield
22. Install cone shield (A) over primary driveline (B). Use the
latches to secure it to the gearbox.
23. Place primary driveline (B) on driveline support (C).
ASSEMBLING THE ROTARY DISC PULL-TYPE – FACTORY-INSTALLED TRANSPORT
