215585 71 Revision A

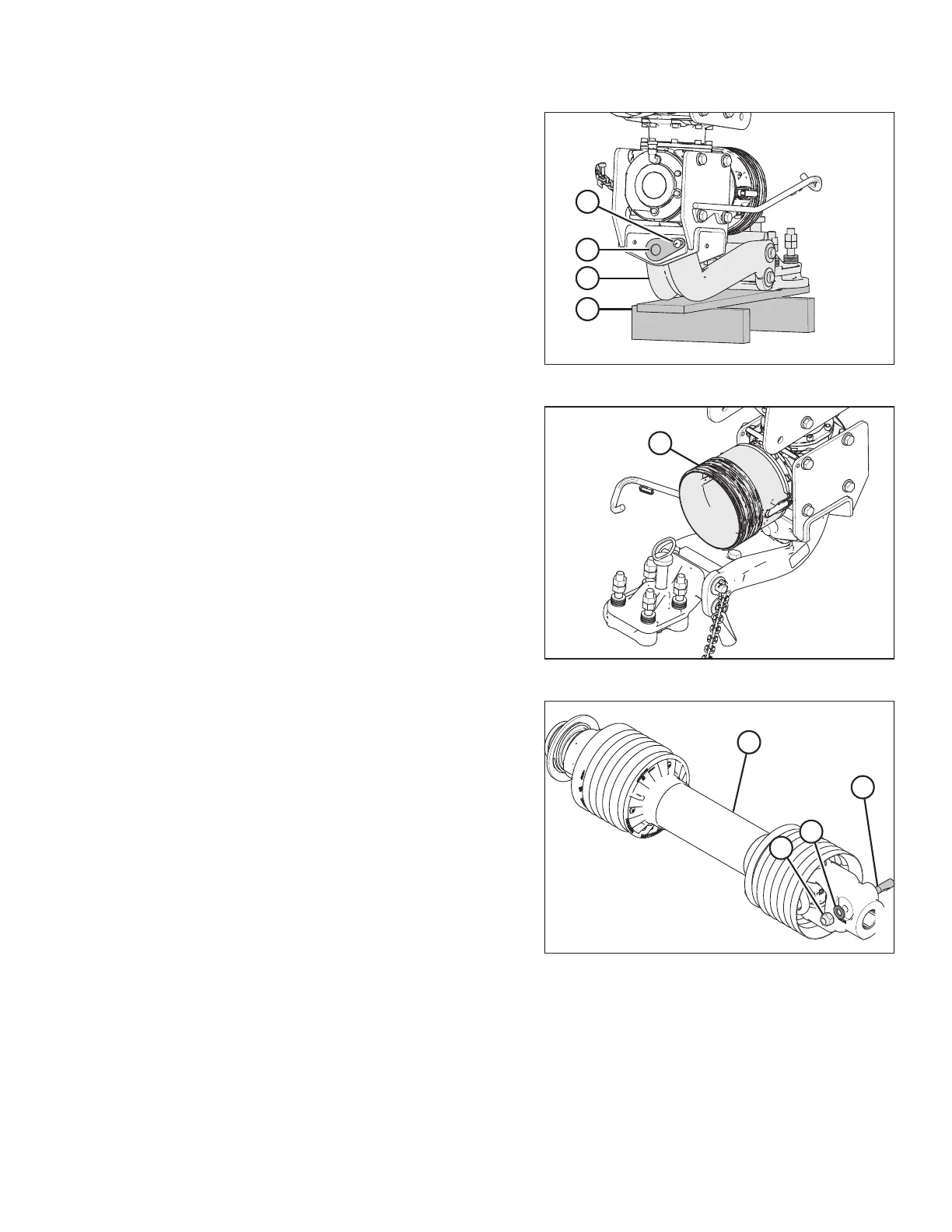

Figure 4.27: Drawbar Hitch
11. Using a floor jack or equivalent under pallet (A), raise
drawbar hitch (B) into position under the gearbox.
12. Move drawbar hitch (B) so pin (C) can be installed.
13. Secure pin with bolt (D) and nut.
14. Remove any remaining strapping from pallet (A). Lower
pallet. Remove floor jack and pallet.
Figure 4.28: Cone Shield
15. Remove cone shield (A).
Figure 4.29: Primary Driveline
16. Retrieve primary driveline (D) from the shipping location.
17. Remove nut (C), washer (B), and pin (A) from rotary disc
pull-type end of primary driveline (D).
ASSEMBLING THE ROTARY DISC PULL-TYPE – FACTORY-INSTALLED TRANSPORT
