MacDon R113 - Page 83

215585 75 Revision A

$
%

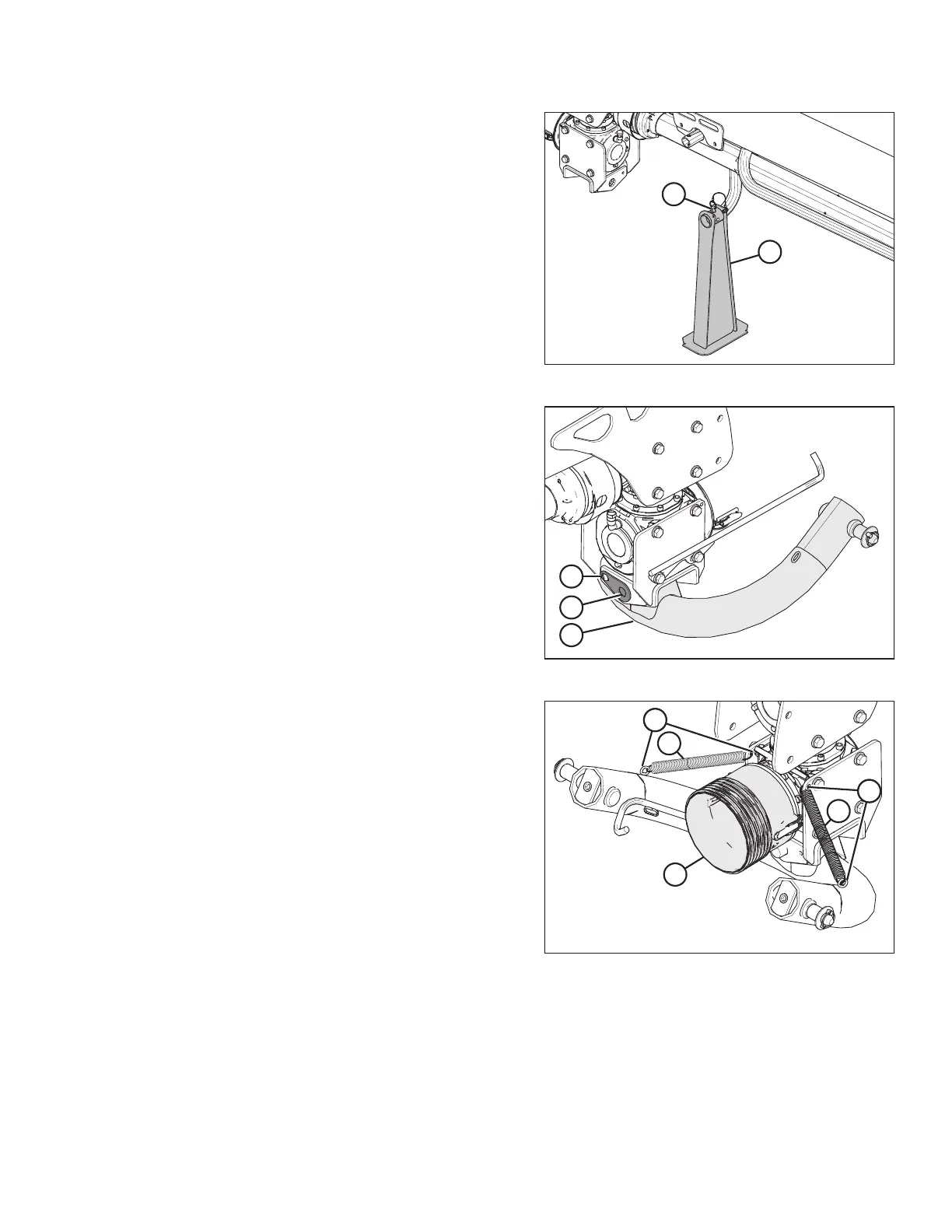

Figure 4.38: Jack – Working Position
9. Insert jack (A) onto the jack stand support and secure with
pin (B).

$
%
&
Figure 4.39: Two-Point Hitch Adapter
10. Using a floor jack or equivalent, raise two-point hitch
adapter (A) into position under the gearbox.
11. Maneuver adapter (A) so that pin (B) can be installed to
secure adapter to hitch.
12. Secure pin with bolt (C) and nut.
13. Remaining any remaining strapping from pallet. Lower
pallet. Remove jack and pallet.
14. Lower hitch and stand to the ground.

$
$
%
%
%
%
&
Figure 4.40: Springs
15. Install springs (A) into hooks (B).
16. Remove cone shield (C).
ASSEMBLING THE ROTARY DISC PULL-TYPE – FACTORY-INSTALLED TRANSPORT
