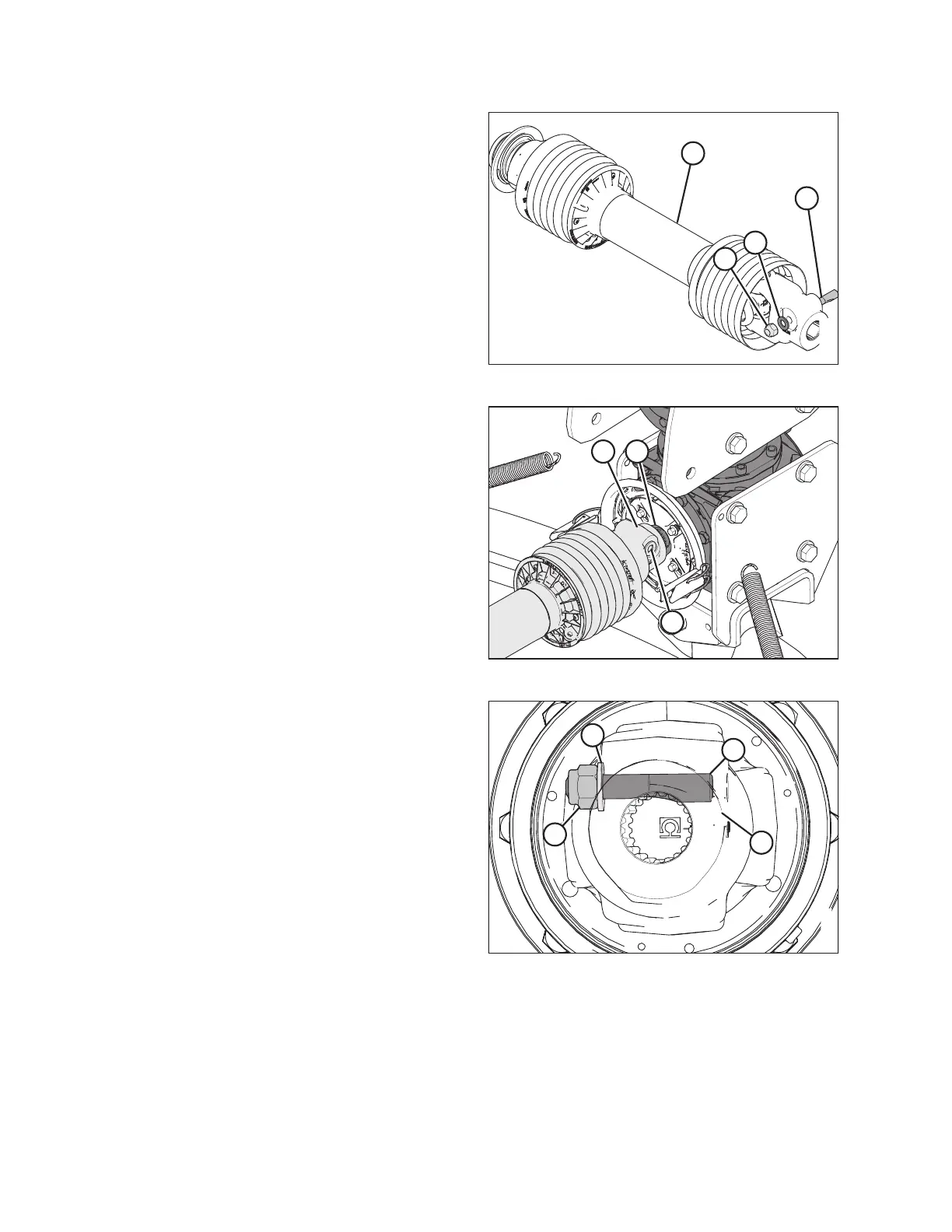

Figure 4.41: Primary Driveline
17. Retrieve primary driveline (D) from the shipping location.
18. Remove nut (C), washer (B), and pin (A) from rotary disc
pull-type end of primary driveline (D).
&
%$
Figure 4.42: Primary Driveline
19. Slide driveline (A) onto gearbox input shaft (B). Align
pinhole (C) in the yoke with the groove on the input shaft.
$
%
&
'
Figure 4.43: Primary Driveline
20. Insert tapered pin (A) by hand. Ensure the pin lines up with
groove in the yoke and is fully inserted. The notch in the pin
should be facing toward the shaft.
21. Clean threads on pin (A) after inserting pin.
22. Install washer (B) and nut (C) on the tapered pin and torque
to nut 149 Nm (110 lbf·ft). The end of the pin must be
recessed 9–11 mm (0.35–0.43 in.) (D).
NOTE:
Do NOT use an impact wrench to install or torque the nut.
ASSEMBLING THE ROTARY DISC PULL-TYPE – FACTORY-INSTALLED TRANSPORT
