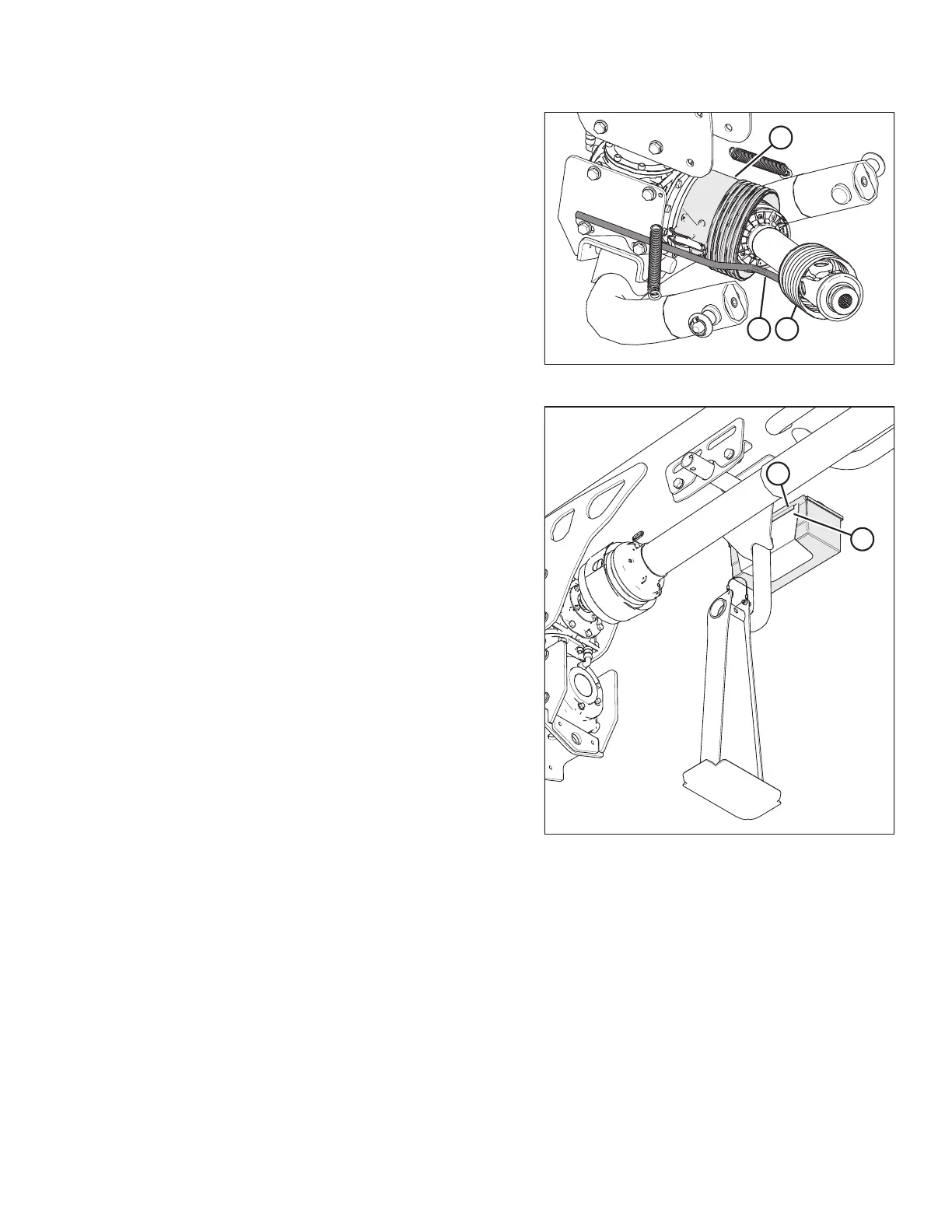

Figure 4.44: Cone Shield
23. Install cone shield (A) over the primary driveline. Place
driveline (B) on driveline support (C).

$
%
Figure 4.45: Toolbox Mounted on Jack Stand Bracket
24. Place toolbox groove (A) onto jack stand bracket (B)
as shown.
ASSEMBLING THE ROTARY DISC PULL-TYPE – FACTORY-INSTALLED TRANSPORT
