BA053101-en
The additional curves can only be displayed when the appropriate sensors and measurement units
are connected.

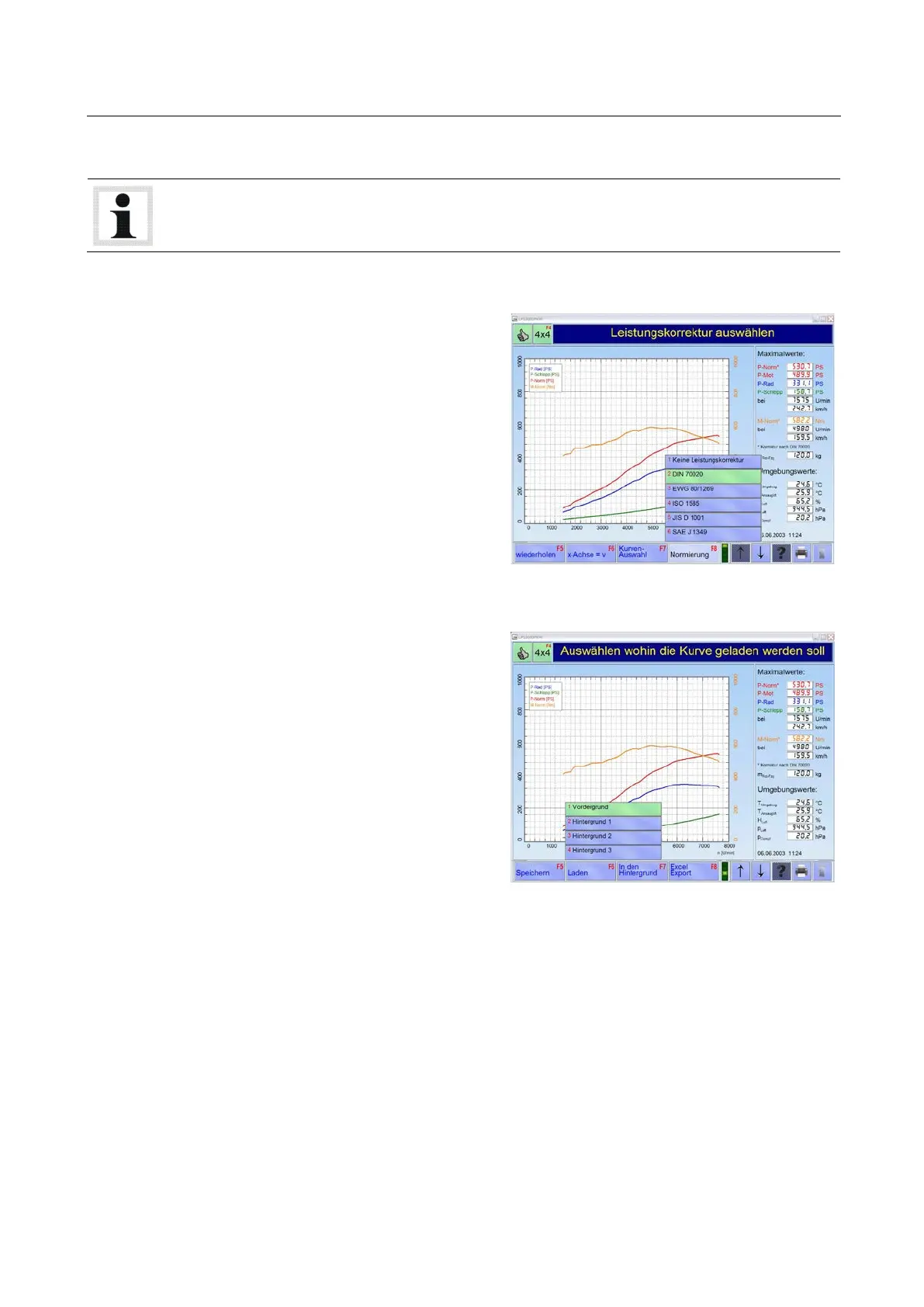

1 Use the button <F8 POWER CORREC-
TION>.
The following selection box opens:
2 Select the desired engine power projection.
The power and torque are calculated and
displayed based on the desired power cor-
rection.
3 Using the keys 5 to 7 or the appropriate
buttons a max. of 3 further measurements, if
loaded, can be blended in and out in the
background. rund ein- und ausgeblendet
werden.
1 Use the button <F6 LOAD>.
The following selection box opens:
2 Select where the desired measurement is to
be loaded.
The database Browser opens:
3 Select a dataset with the cursor key or the
mouse.
4 Open the dataset by double clicking or press
the <ENTER> key.
