Maintenance work on the superstructure
8.5 Slewing bearing
8 - 22 3 302 364 en Maintenance manual
GMK 4100L-1
25.11.2016

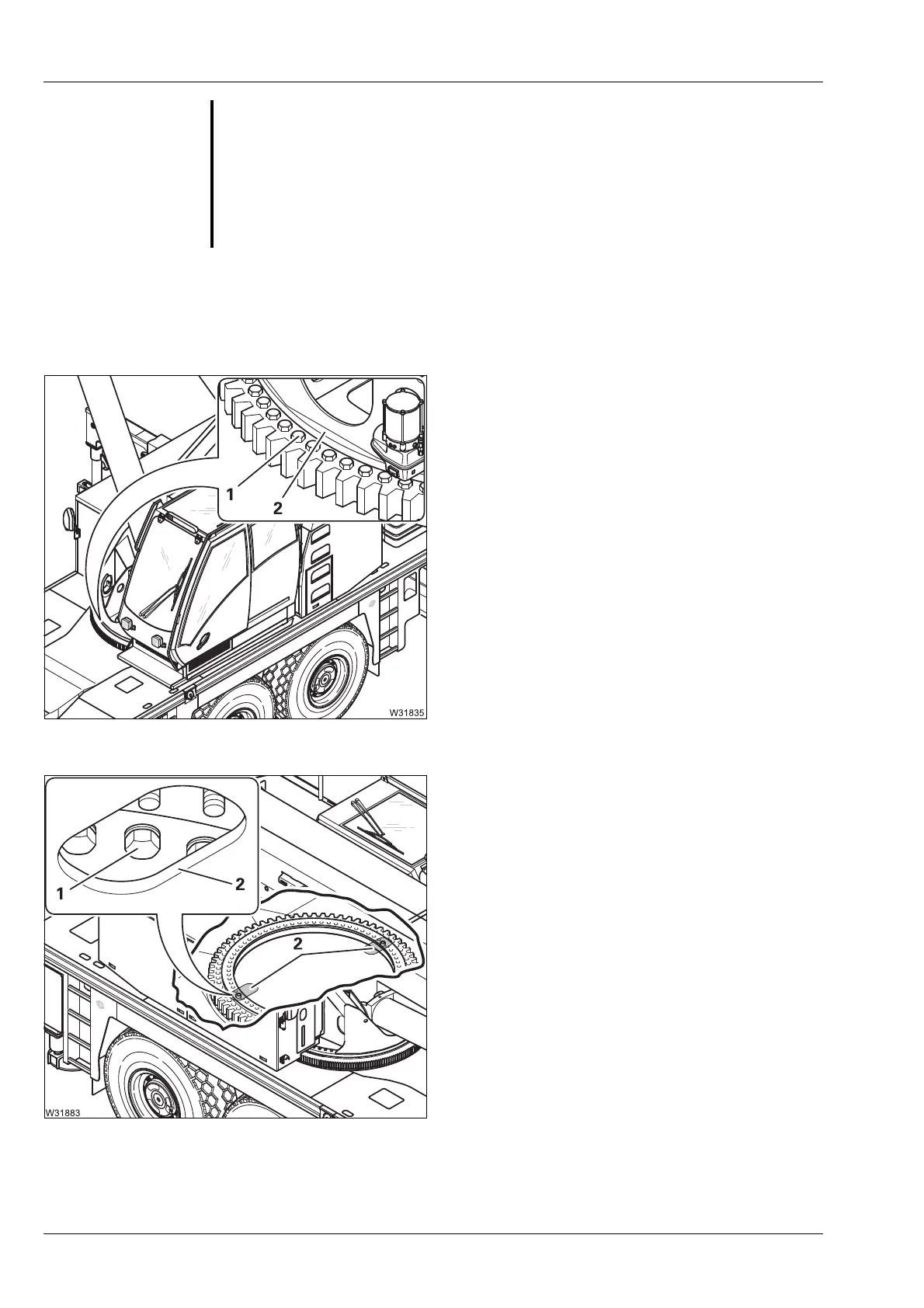

Access
The outer ring is connected to the carrier with
the screws (1).
• Check all 72 screws (1) from above.
To do this, you must rotate the clear area (2)
on the turntable gradually to check all the
screws(1).
The inner ring is conne
cted to the turntable
with the screws (1).
• Check all 71 screws (1) from below.
To do this, you must rotate the turntable
gradually with a pair of screws (1) each on
the opposite side through the openings (2)
in the carrier.
G
Danger of the slewing bearing being ripped off.
If while checking you notice very loose, broken or missing screws, then the
slewing bearing
has been overloaded and is no longer safe to use. During
crane operation, the slewing bearing may rip off suddenly and thus cause
fatal accidents.
Do not put the truck crane back into operation and have the slewing bearing
repaired by
Manitowoc Crane Care.
