Maintenance work on the carrier
7.8 Axle lines
7 - 50 3 302 719 en Maintenance manual
GMK6300L-1
13.02.2018
1.+ 5./6. axle lines In case of drive 12 x 6, this axle centre drive is on the 1st and 5th axle line.
In case of drive 12 x 8, this axle centre drive is on the 1st and 6th axle line.

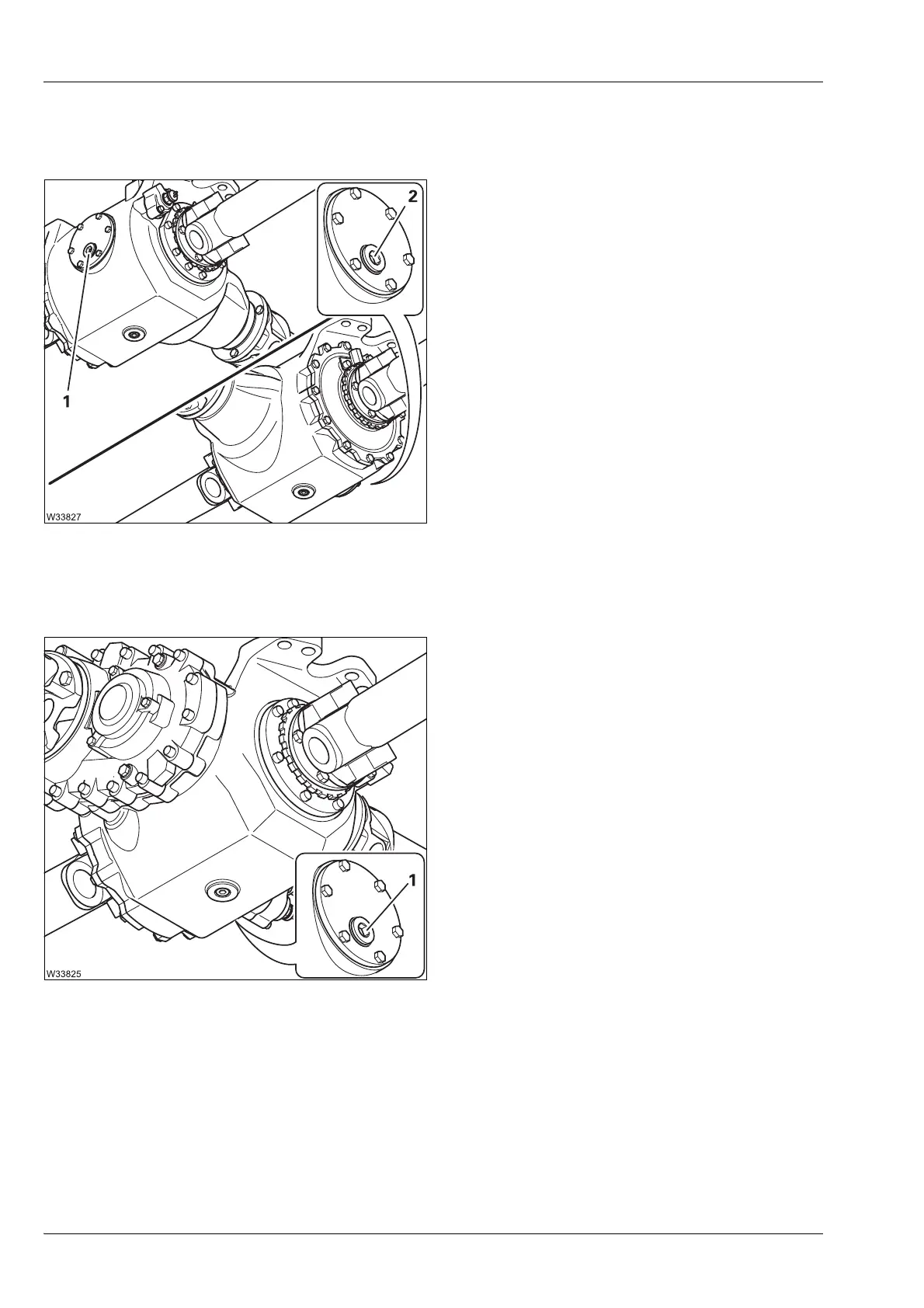

• Remove the screws (1) and (2).
• Check that the oil reaches the lower edge
of the openings.
• Fit new gaskets and tighten the screws.
If the oil level is too low
• Top up the oil; à p. 7 - 53.
5th axle line -
drive 12 x 8
In case
of drive 12 x 8, the 5th axle line is fitted with this axle centre drive.
• Remove the drain plug (1).
• Check that the oil reaches the lower edge of
the opening.
• Fit a new gasket and tighten the screw.
If the oil level is too low
• Top up the oil; à p. 7 - 53.
