Manitowoc Grove GMK6300L-1 Maintenance Manual

Maintenance work on the carrier
7.8 Axle lines
13.02.2018
Maintenance manual 3 302 719 en 7 - 53
GMK6300L-1

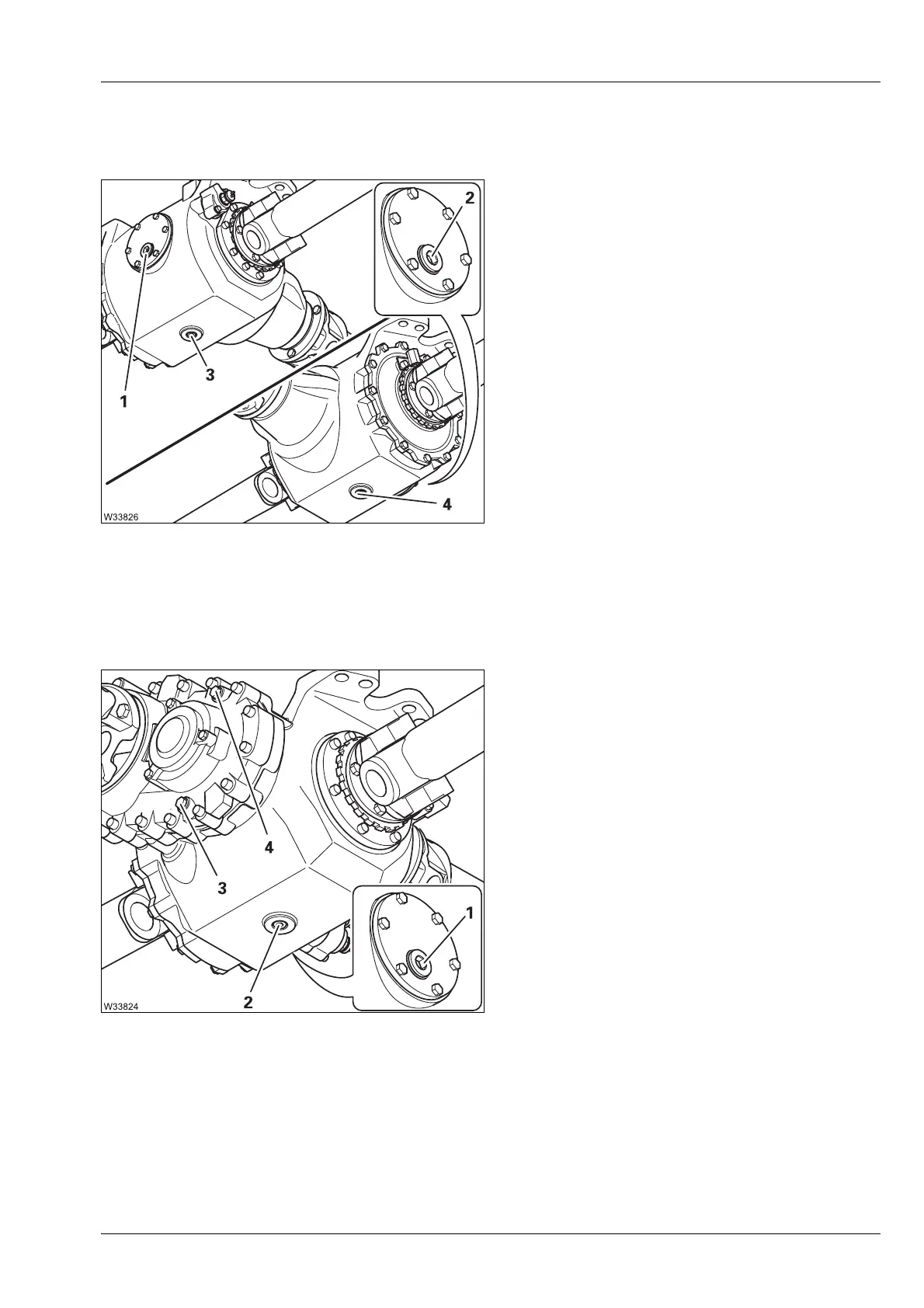

1st + 5th/6th
axle line
In case of drive 12 x 6, this axle centre drive is on the 1st and 5th axle line.
In case of drive 12 x 8, this axle centre drive is on the 1st and 6th axle line.
• Place a receptacle under screws (3) and (4).
• Remove screws (1), (2), (3) and (4) and
let the oil drain off.
• Fit new gaskets and tighten the screws (3)
and (4).
• Fill the oil up to the lower edge of the
openings.
• Fit new gaskets and tighten the screws (1)
and (2).
5th axle line -
drive 12
x 8
In case of drive 12 x 8, the 5th axle line is fitted with this axle centre drive.
• Place a receptacle under screws (2) and (3).
• Remove screws (1), (2), (3) and (4) and
let the oil drain off.
• Fit new gaskets and tighten the screws (2)
and (3).
• Fill the oil up to the lower edge of the
opening (1).
• Fit new gaskets and tighten screws (1)
and (4).
