Maintenance work on the carrier
7.14 Hydraulic system
7 - 96 3 302 719 en Maintenance manual
GMK6300L-1
13.02.2018
Changing filters 1
and 2

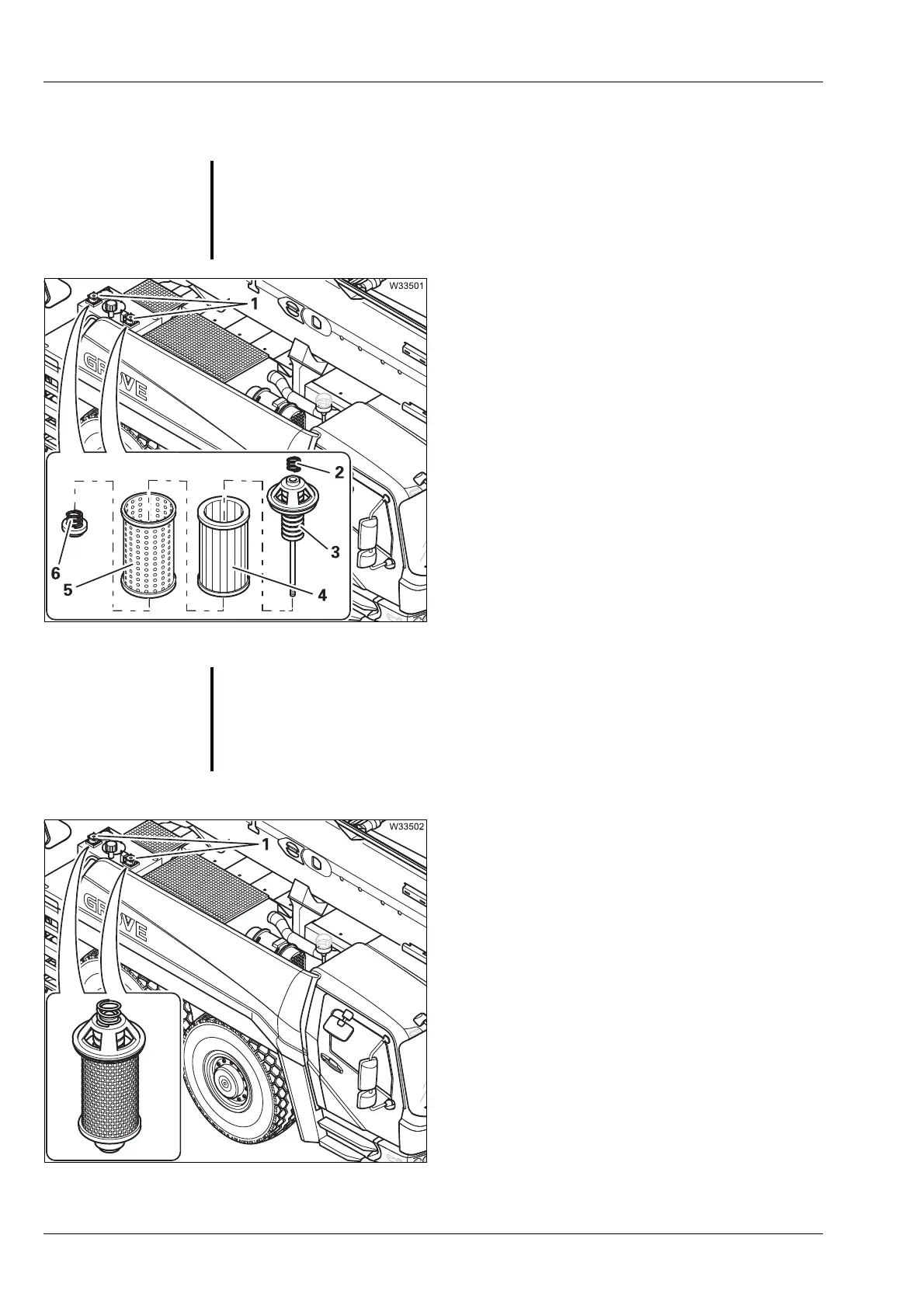

• Release the cap (1) and pull out the filters.
• Place the filters in a receptacle.
• Remove the spring (2).
• Undo the nut (6).
• Take the magnetic rod (3) and filter (4) out
of the filter cage (5).
• Clean the magnetic rod (3) and filter
cage (5).
• Insert a new filter (4) into the filter cage (5).
• Replace any damaged parts, where
necessary.
• Assemble the filters and install them.
• Replace the gaskets and fasten the caps (1).
• Start the engine and check for leaks.
O
Risk of damage to the environment from filter residues
Store used hydraulic oil filter inserts in suitable receptacles and have them
disposed of properly by qualified personnel.
S
Risk of damage to the hydraulic system.
Large amounts of metal particles are a sign of damage in the hydraulic
system.
Have the hydraulic system checked by Manitowoc Crane Care or
an authorised GROVE dealer or your qualified repair crew.
