Maintenance work on the superstructure
8.9 Hydraulic system
8 - 74 3 302 719 en Maintenance manual
GMK6300L-1
13.02.2018
Changing oil
filter 1

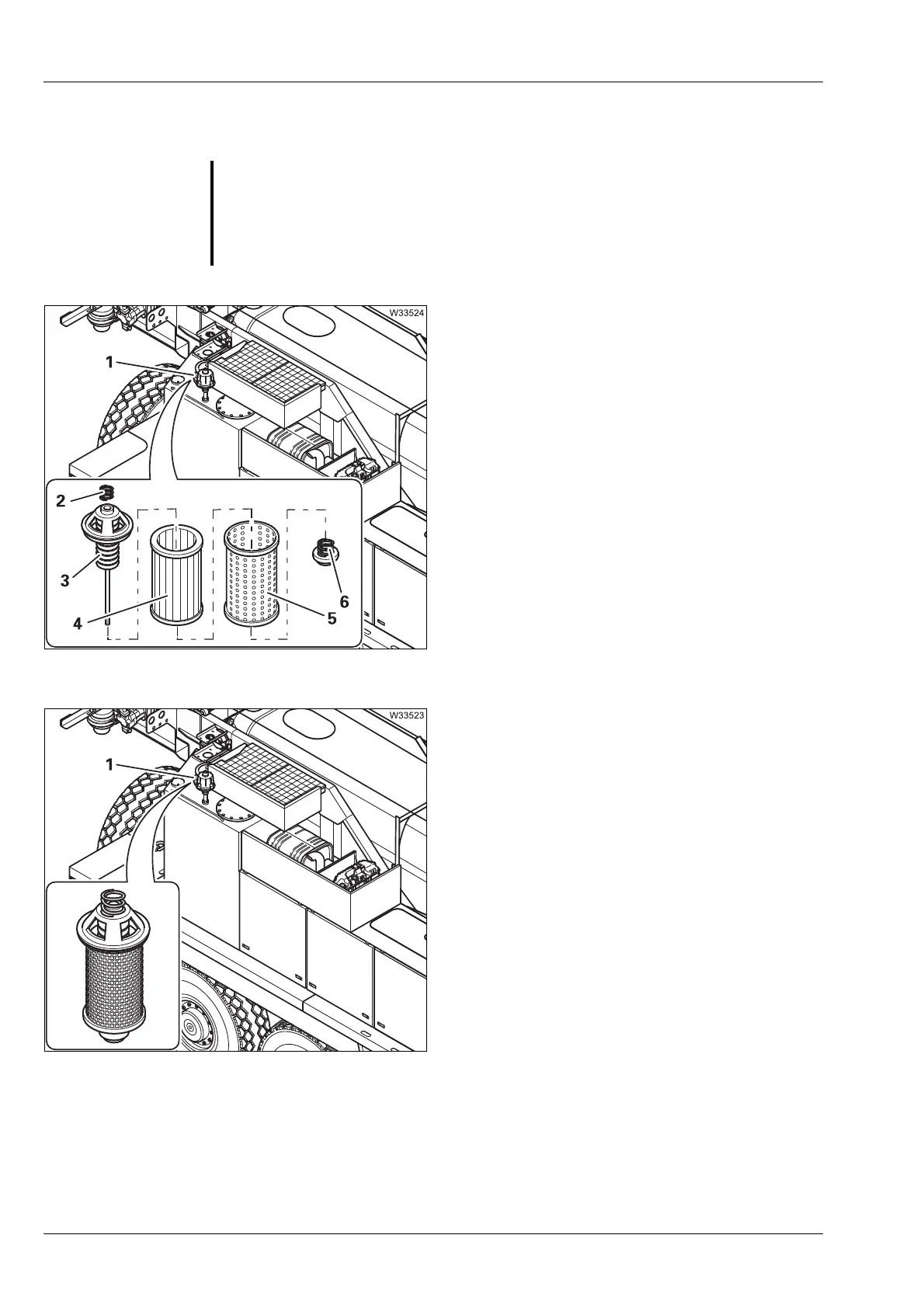

• Take off the cap (1) and pull out the filter.
• Place the filter in a receptacle.
• Remove the spring (2).
• Take off the nut (6).
• Take the magnetic rod (3) and filter (4) out of
the filter cage (5).
• Clean the magnetic rod (3) and filter cage (5).
• Insert a new filter (4) into the filter cage (5).
• Replace any damaged parts, where
necessary.
• Replace the gaskets (packing set)
if necessary.
• Assemble the filter and insert it.
• Bolt the cover (1) on.
O
Risk of environmental damage due to leaking consumables.
Always let consumables drain into suitable receptacles. Wipe up any
consumables tha
t escape.
Store/dispose of consumables and any soaked equipment properly.
Ask about the applicable regulations.
