HYDRAULIC SYSTEM TMS800E SERVICE MANUAL
2-68
Published 01-29-2014, Control # 496-00
Inspection
1. Clean all parts with solvent and dry with compressed air.
Inspect for damaged or worn parts and replace as
required.
2. Stone out minor blemishes and polish with fine crocus
cloth.
3. Clean with solvent and dry with compressed air any
parts that have been stoned and polished.
4. Inspect the barrel for scoring.

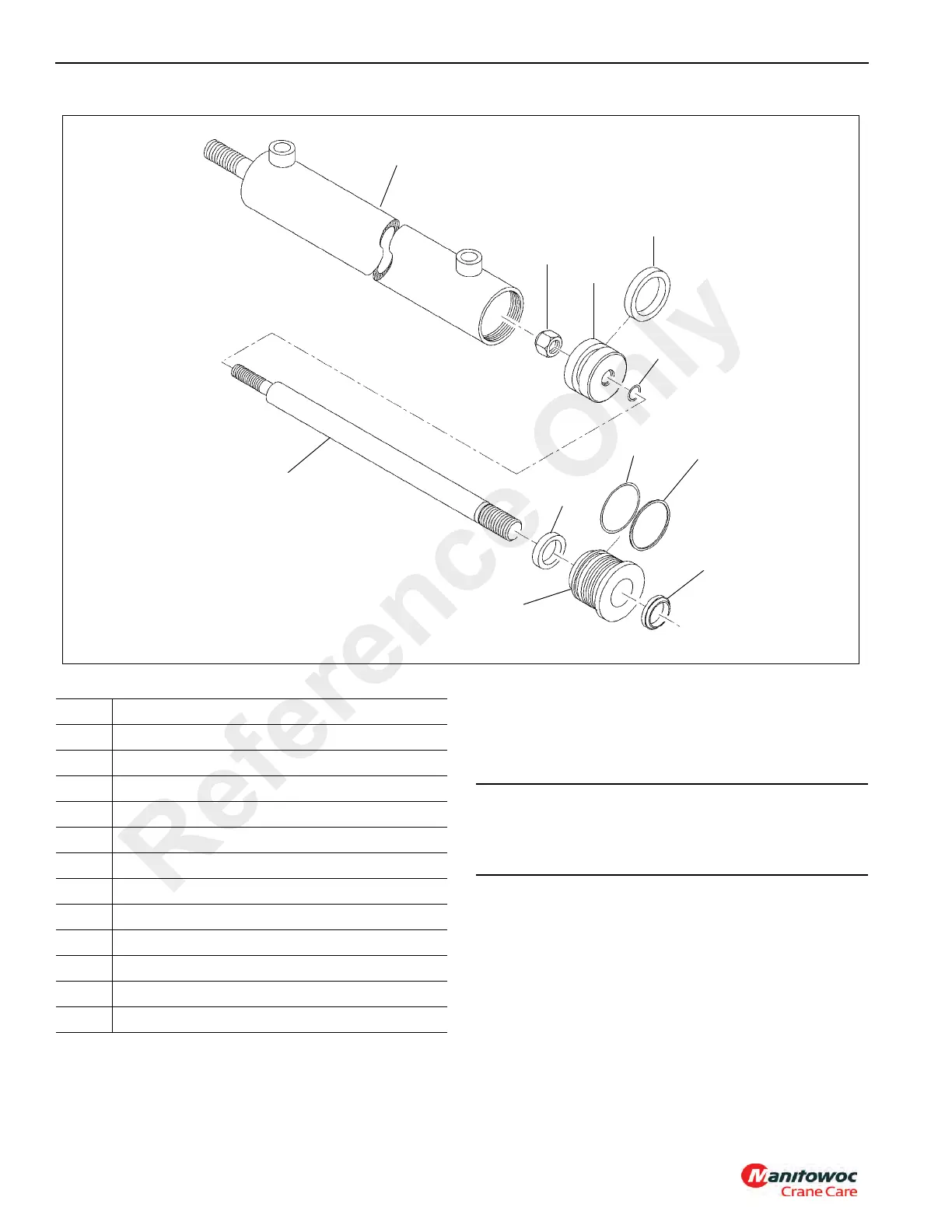

FIGURE 2-48
6845
1
4
5
7
20
2
6
20
10
20
8
20
9
20
3
11
20
Item Description
1 Barrel
2Rod
3 Rod Head
4Piston
5Nut
6O-ring
7 Seal Piston Ring
8O-ring
9 Backup Ring
10 Seal Rod Ring
11 Wiper Ring
20 Seal Kit
CAUTION
Clean all surfaces and remove all burrs and nicks before
installing new seals and rings. Replace all damaged or
worn parts.
Reference Only
