BOOM TMS800E SERVICE MANUAL
56 ft (17 m) Jib

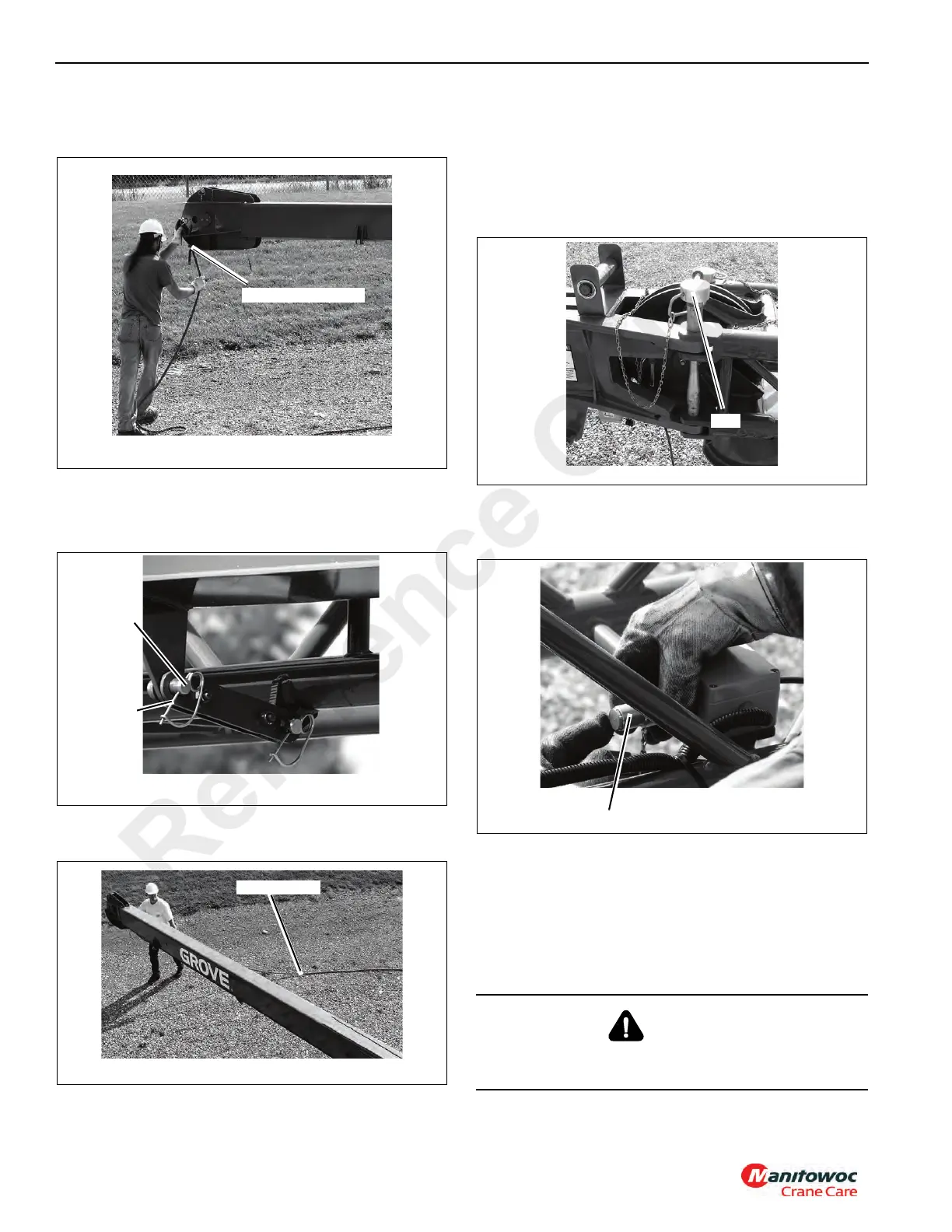

1. Secure tag line to stinger nose Figure 4-25.
2. Raise boom slightly above horizontal.
3. Remove retainer clip and remove stinger stowage pin
Figure 4-26.
4. Using the tag line to maintain control of the bi-fold
(stinger), swing stinger into erected position Figure 4-27.
NOTE: Do not lower boom until stinger has been
completely swung in front of the 10 m (33 ft)
section.
5. Lower the boom.
6. Remove pin from swingaway. Install pin in stinger and
retain with clip pin Figure 4-28.
7. Connect RCL connector to RCL connection box
Figure 4-29. The cable is stowed in the 7 m (23 ft)
section.
8. Remove tag line before operating crane.
NOTE: Reeve the hoist cable as described under rigging
and unrigging procedure in this section.
Stowing Procedure
56 ft (17 m) Jib
6642-23
Tag Line To Stinger
FIGURE 4-25
6642-24
Stinger
Stowage
Pin
FIGURE 4-26
Clip Pin
6642-25
FIGURE 4-27
Tag Line
DANGER
To prevent serious injury or death, do not stand on
decking until extensions are secure.
6642-26
FIGURE 4-28
Pin
6642-27
FIGURE 4-29
RCL Connector
Reference Only
