Manitowoc Grove TMS800E User Manual

6-2
Published 01-29-2014, Control # 496-00
SWING SYSTEM TMS800E SERVICE MANUAL
the control to neutral and depressing the brake pedal will
stop the swing.
Swing Brake
Hydraulic power for the swing brake release is supplied by
hydraulic pump #1 and the main directional control valve.
With the swing brake selector switch positioned to on (push
top switch), the swing brake release valve blocks the flow to
the brake release port and spring pressure in the swing
brake applies the brake. When the swing brake selector
switch is positioned to off, the flow is directed to the brake
release port, overcoming the brake spring pressure and
releasing the swing brake.

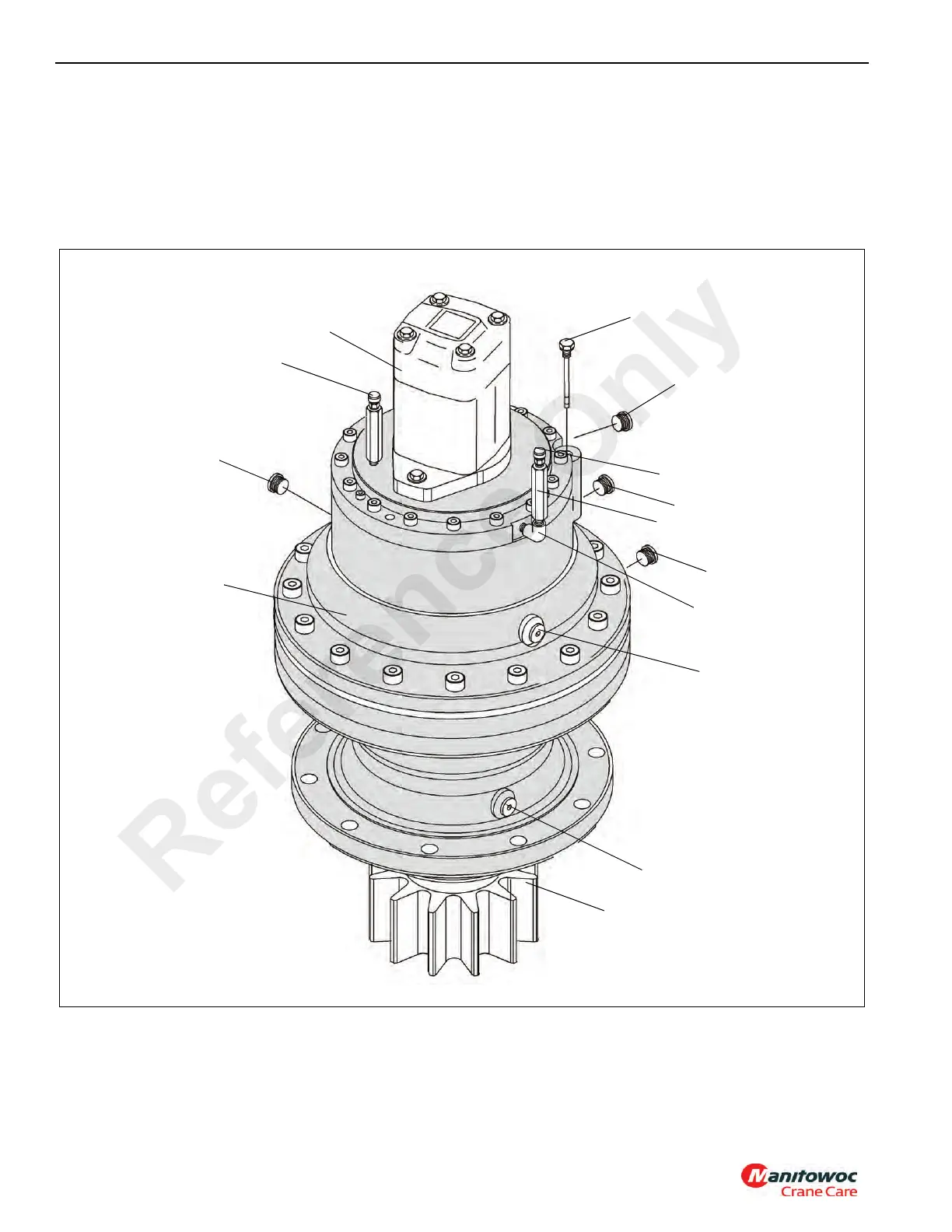

FIGURE 6-1
4
7
6
14
12
2
3
5
9
10
11
8
13
1
6493-1
Reference Only
