BOOM TMS800E SERVICE MANUAL
Folding In Deflection Sheave
• Hold the deflection sheave by the strut (1) and remove
the pin (2) from the bore (3) Figure 4-59.
• Fold the deflection sheave down as far as possible.
• Insert the pin in the bore hole (3) and secure it with a
retaining clip.
Positioning/Removing the Hoist Cable
Positioning Hoist Cable
• Remove the hoist rope holding rollers and rods (1)
Figure 4-60.
• Guide the hoist rope via the deflection sheaves (3) and
via the head sheave (2) on the 10 m (33 ft) section or on
the 7 m (23 ft) section. Put all hoist cable holding rollers
and rods back in place and secure these with retaining
pins.
• Attach the overhaul ball.
• Install the A2B weight assembly.
Removing Hoist Cable
• Unpin the overhaul ball.
• Remove the hoist rope holding rollers and rods (1)
Figure 4-60.
• Take the hoist cable off the head sheave (2) and the
deflection sheaves (3) and place it onto the ground on
the left side.
• Put all hoist cable holding rollers and rods back in place
and secure them with retaining pins.
CAUTION
Risk of accidents due to falling parts.
Always secure the hoist cable holding rollers and rods
with retaining pins. This prevents elements from
becoming loose, falling down and injuring people.

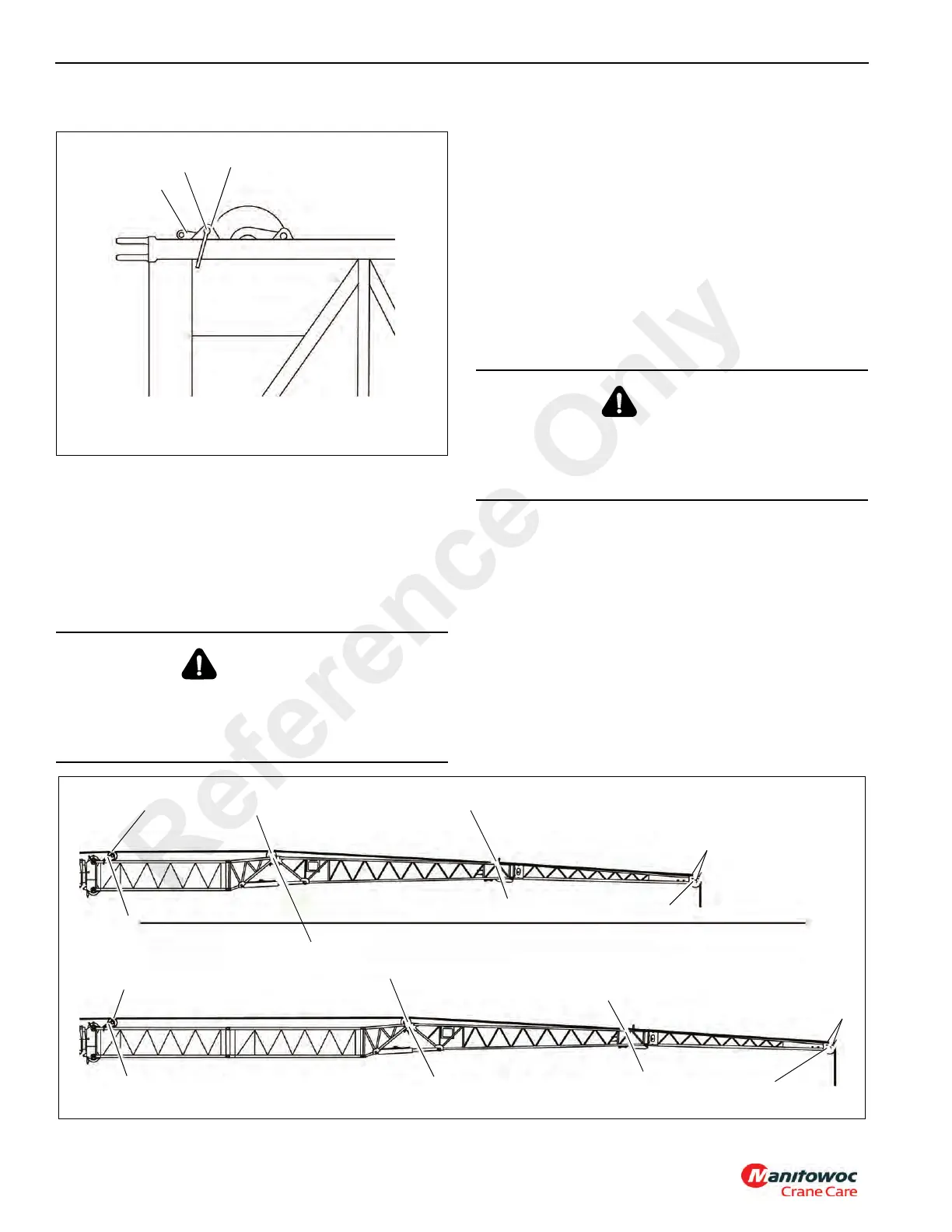

FIGURE 4-59
w3353a
1
2
3
CAUTION
Risk of accidents due to falling parts.
Always secure the hoist cable holding rollers and rods
with retaining pins. This prevents elements from
becoming loose, falling down and injuring people.
FIGURE 4-60
1
1
1
5
1
3
1
2
1
5
1
4
1
3
2
w3359a
4
