3-17
TMS800E SERVICE MANUAL ELECTRIC SYSTEM
Published 01-29-2014, Control # 496-00
Check
1. Squirt some cleaning fluid onto the windshield with the
windshield washer.
2. Operate the windshield wiper. Verify it works. (Replace
wiper blade as needed if it streaks or otherwise wipes
poorly.)
Windshield Washer Assembly Replacement
Removal
1. Turn the battery disconnect switch to the off position.
2. Locate the windshield washer container and pump.
3. Tag and disconnect the pump’s electrical lead and
ground wire.
4. Disconnect the hose from the windshield washer pump.
Point it so it won’t spill cleaning fluid. Catch cleaning fluid
from the windshield washer container with a suitable
container.
5. Remove four self tapping screws securing the
windshield washer container. Remove the windshield
washer container and pump.
6. Remove pump and pump seal from container.

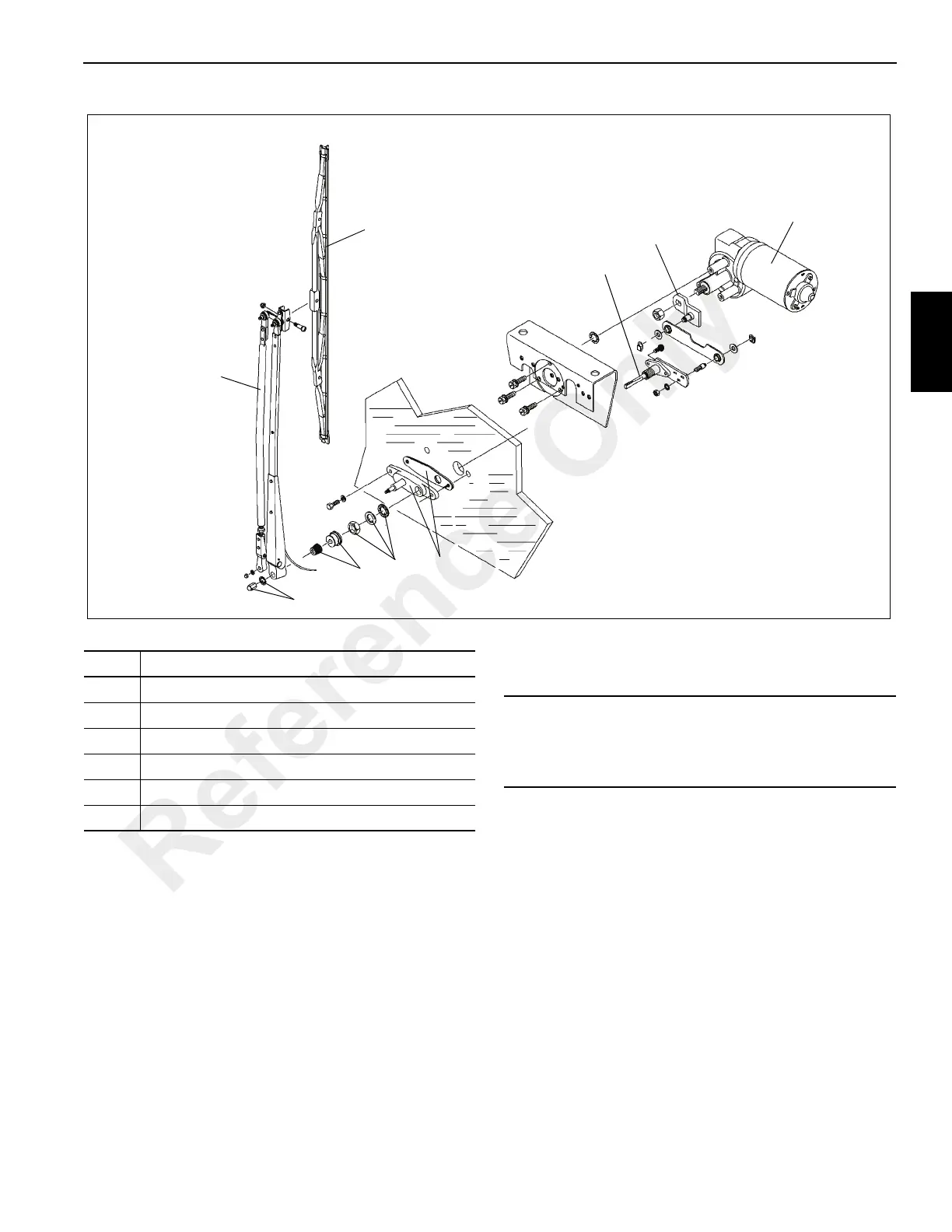

Item Description
1Motor
2 Arm Drive
3 Pivot Shaft
4 Wiper Arm
5 Wiper Blade
6 Adapter
CAUTION
To prevent possible engine fault codes and undesirable
operation, in order: Ensure keyswitch has been off 2
minutes, Battery disconnect is in the off position.
Reference Only
