4-43
TMS800E SERVICE MANUAL BOOM
4
GROVE
Published 01-29-2014, Control # 496-00

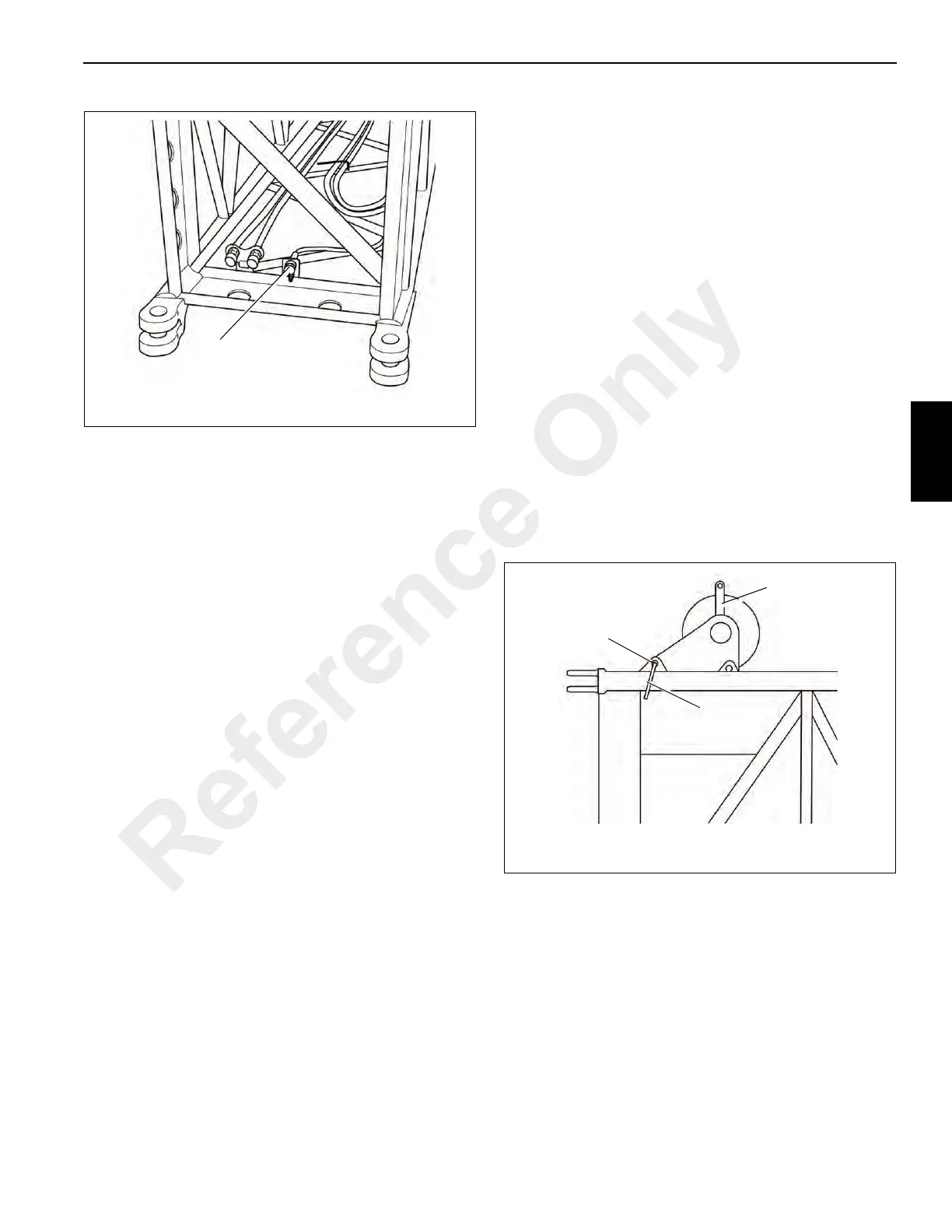

There is a plug socket (1) at the front of each 5 m (16 ft)
section Figure 4-57.
For transport, the sockets are covered with protective caps.
At the 22 m (72 ft) Jib
Establishing a Connection
• Connect the cable of the 10 m (33 ft) section to the
socket of the second 5 m (16 ft) section at the front.
• Connect the cable of the 5 m (16 ft) section to the socket
at the main boom.
Disconnecting
• Detach the electrical connection between 10 m (33 ft)
and 5 m (16 ft) section.
• Detach the electrical connection between 5 m (16 ft)
section and main boom head.
• Prepare the electrical connections at the 10 m (33 ft)
section for transport.
At the 27 m (89 ft) Jib
Establishing a Connection
• Connect the cable of the 10 m (33 ft) section to the
socket of the second 5 m (16 ft) section at the front.
• Connect the cable of the second 5 m (16 ft) section to
the socket of the first 5 m (16 ft) section at the front.
• Connect the cable of the first 5 m (16 ft) section to the
socket at the main boom head.
Disconnecting
• Detach the electrical connection between the 10 m (33
ft) and front 5 m (16 ft) section.
• Detach the electrical connection between the two 5 m
(16 ft) sections.
• Detach the electrical connection between the rear 5 m
(16 ft) section and the main boom head.
• Prepare the electrical connections at the 5 m (16 ft)
section for transport.
• Prepare the electrical connections at the 10 m (33 ft)
section for transport.
Unfolding/Folding the Deflection Sheave on
the 5 m (16 ft) Section
This section describes only the unfolding and folding of the
deflection sheave on the 5 m (16 ft) section.
For work with the jib, you must fold out the deflection
sheaves on the rear 5 m (16 ft) section.
Fold the deflection sheave for transport.
Folding Out Deflection Sheave
• Pull the pin (2) out of the bore (3) Figure 4-58.
• Fold the deflection sheave on the strut (1) upwards until
the locking positions are aligned with the bore hole (3).
• Fasten the deflection sheave for transport.
FIGURE 4-57
w3368a
1
1
2
3
w3352a
FIGURE 4-58
Reference Only
