4-48
Published 01-29-2014, Control # 496-00
BOOM TMS800E SERVICE MANUAL

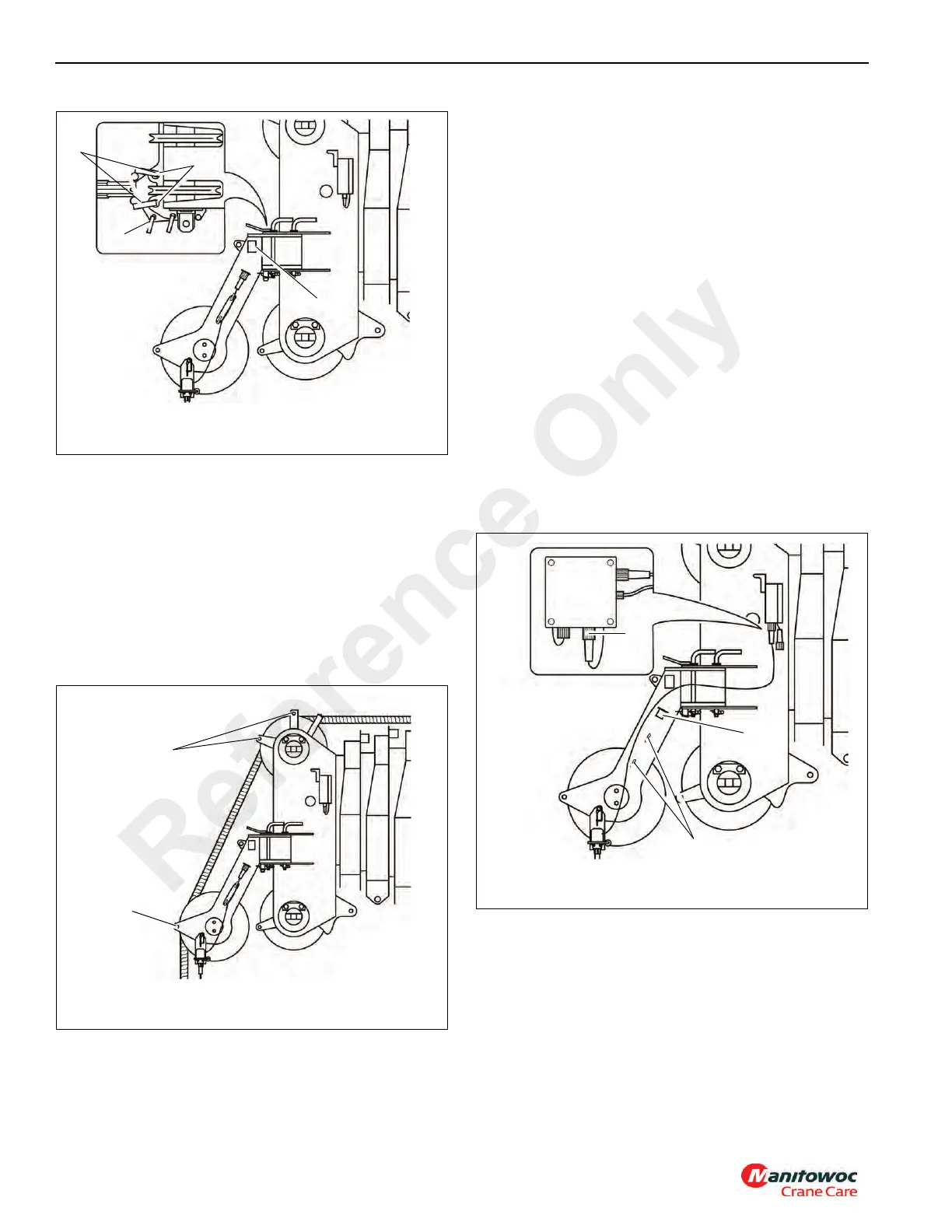

• Remove the retaining pin and take out both thick pins
from the holders Figure 4-70.
• Insert both pins into the pivot points at the front of the
main boom head and secure them with retaining pins.
• Insert the thin pin into the bearing point and secure it
with a retaining pin.
The auxiliary single-sheave boom nose is now in working
position.
Attaching and Removing Hoist Cable
• Remove the cable holding rods from the head of the
main boom and from the auxiliary single-sheave boom
nose Figure 4-71.
• When reeving, guide the hoist cable over the left hand
upper sheave of the main boom.
• Insert the rope holding rod into the appropriate bore
holes and secure them with the corresponding retaining
pins.
• Fasten the cable end clamp on the hook tackle or the
hook block.
Reverse the sequence of operations to remove the hoist
cable before rotating the auxiliary boom nose into transport
position.
Possible Reeving Methods on the Auxiliary
Single-Sheave Boom Nose
NOTE: The hoist cable may only be simply reeved (single
drop).
Maximum load bearing capacity for single-reeving 7.3 t
(16,000 lbs).
Lifting Limit Switch
In Operation
• Pull the plug of the connecting cable from the dummy
socket (2) Figure 4-72.
• Unwind the connecting cable from the holders (3).
• Insert the plug of the connecting cable into the socket (1)
on the main boom head.
• Guide the hoist cable through the lifting limit switch
weight.
1
2
3
4
FIGURE 4-70
w2728a
FIGURE 4-71
w2729a
1
1
FIGURE 4-72
w2731a
1
2
3
