POWER TRAIN TMS800E SERVICE MANUAL
QSM ENGINE MUFFLER
Removal
1. Remove capscrews, lockwashers, flat washers, and
nuts to free muffler guard. Remove muffler guard.
2. Remove muffler cover and exhaust cover.
3. Remove muffler clamp. Remove exhaust connector
assembly.
4. Remove muffler from mounting bands.
5. Remove capscrews, lock washers, flat washers, and
nuts to free muffler mounting bands from muffler mount.
CAUTION
Do not touch muffler or exhaust parts until they are at
ambient temperature. Severe burning may result.

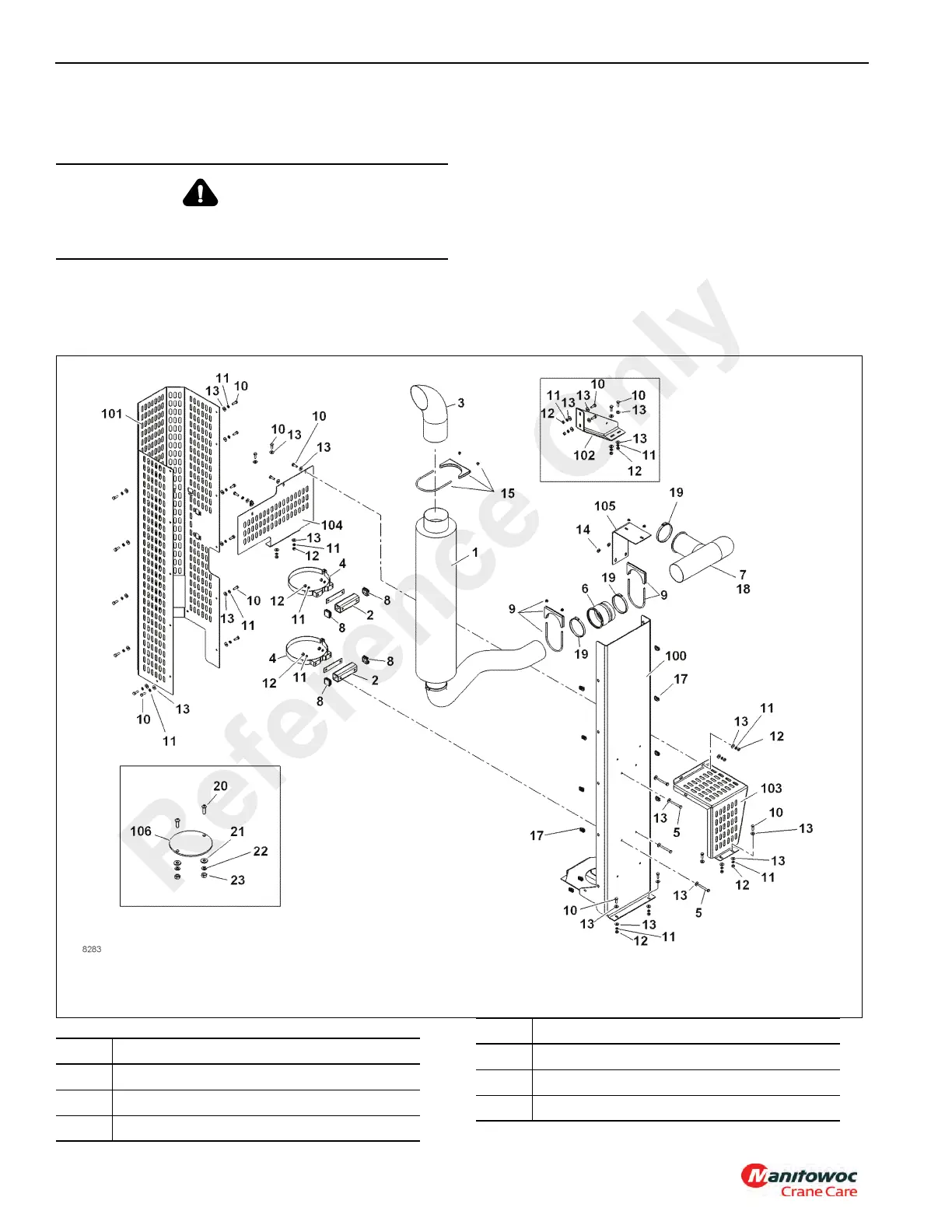

FIGURE 7-12
Item Description
1 Muffler
2 Tube, Spacer
3 Exhaust Stack
4 Mounting Band
5 Capscrew
6 5” Slip Exhaust Connector Assembly
Item Description
Reference Only
