7-32
Published 01-29-2014, Control # 496-00
POWER TRAIN TMS800E SERVICE MANUAL
6. Torque hardware (4, Figure 7-19), refer to Fasteners
and Torque Values, page 1-13.
7. Connect the electrical connectors and hoses to the
pumps as tagged during removal.
8. Start the engine, engage the clutch and check for leaks.

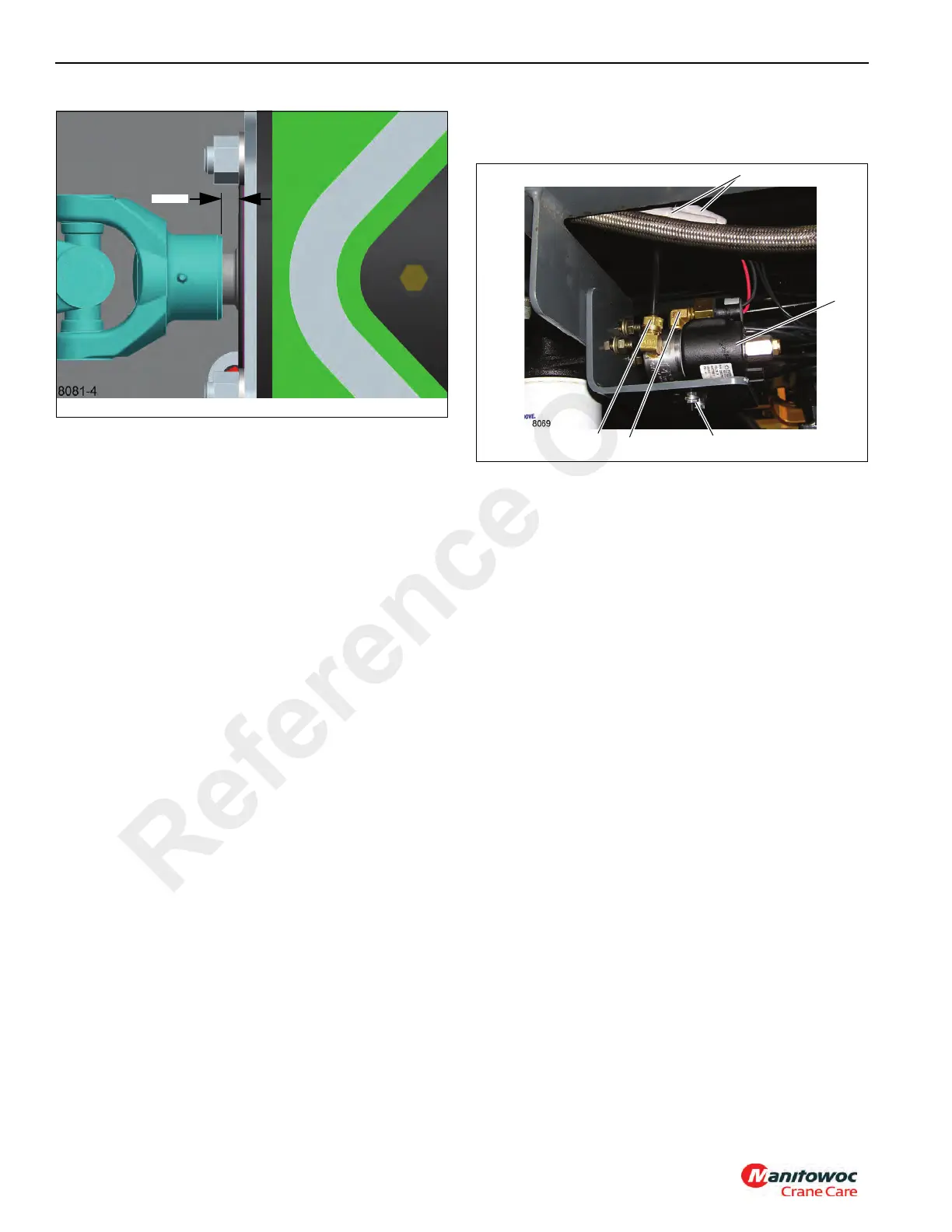

Air Valve Replacement
The air valve is used to control the air to the PTO clutch.
Removal
1. Drain the air system to remove any pressure.
2. Tag and disconnect the electrical connectors (1)
(Figure 7-22).
3. Tag and remove air lines (2, 5).
4. Remove the hardware (3) securing the valve to the
bracket and remove the air valve (4).
Installation
1. Install the air valve into position and secure with the
hardware.
2. Connect the air lines to the valve.
3. Connect the electrical connectors.
4. Start the engine and charge the air system. Engage and
disengage the pumps and check for proper operation of
the clutch.
Reference Only
