TMS800E SERVICE MANUAL BOOM
4
GROVE
Published 01-29-2014, Control # 496-00
19. Connect RCL cables:
a. Remove RCL cable end connector from extension
and route through jib Figure 4-21.
b. Remove dummy plug from junction box on boom
nose Figure 4-22.
c. Install cable end connector from jib where dummy
plug was removed Figure 4-23.
20. Lower boom and remove tag line from the tip of the
extension. Figure 4-24 shows the 7 m (23 ft) and 10 m
(33 ft) section together.

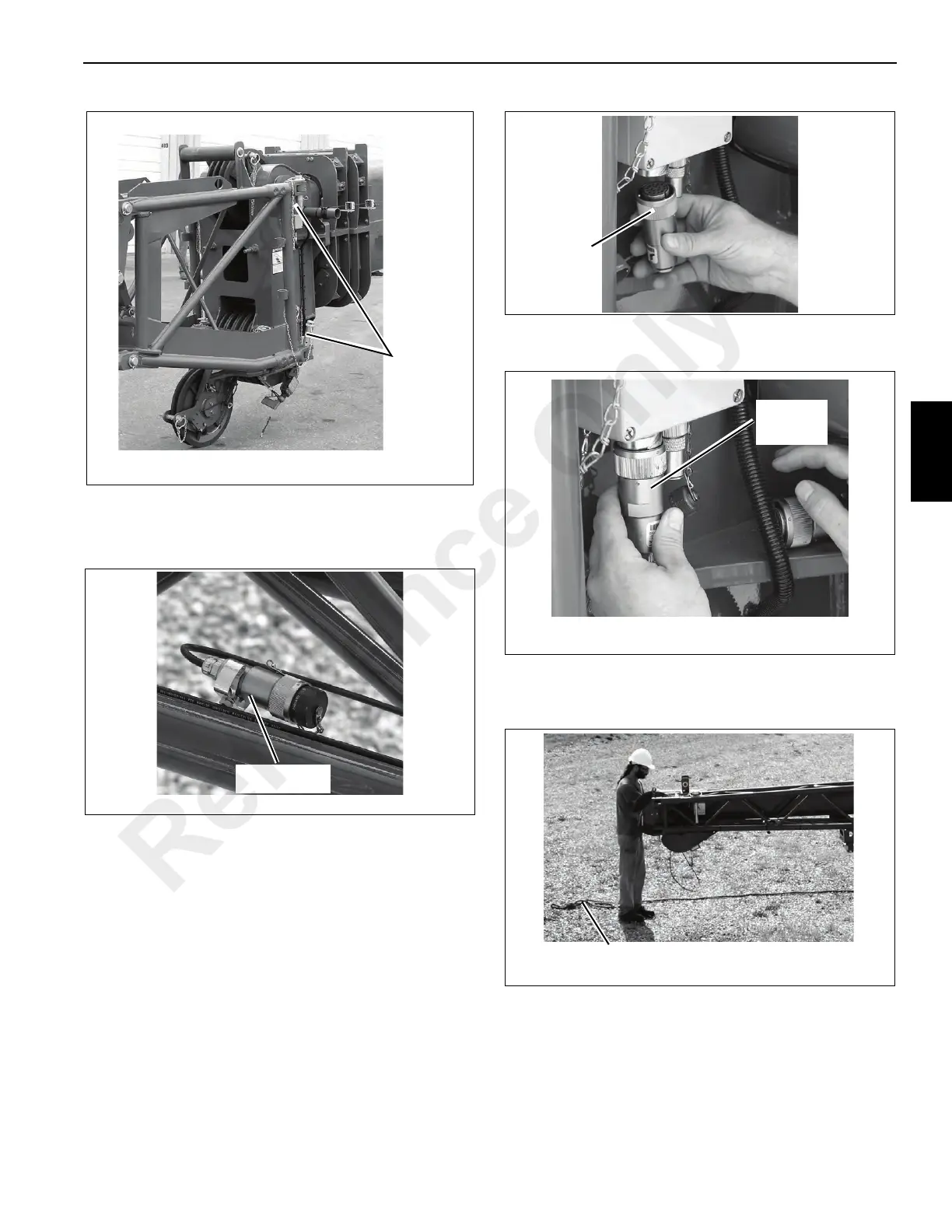

FIGURE 4-20
Connecting
Points
6642-45
6642-19
FIGURE 4-21
RCL Cable End
Connector
6642-20
FIGURE 4-22
Dummy
Plug
6642-21
FIGURE 4-23
Cable End
Connector
Installed
6642-22
FIGURE 4-24
Tag Line
Removed
