4-30
Published 01-29-2014, Control # 496-00
BOOM TMS800E SERVICE MANUAL
13. Extend the boom approximately 61 cm (2 ft) to move
extension off of the ramp (Figure 4-16).
14. Remove tag line from superstructure.
NOTE: Tag line is used to control movement of the jib
during erecting procedure.
NOTE: If erecting the 7 m (23 ft) section with the 10 m (33
ft) section, perform steps 18 and 19. If erecting the
10 m (33 ft) section without the 7 m (23 ft) section,
proceed to step 17.
15. Using the tag line (rope), pull the extension away from
the boom Figure 4-17.
16. While maintaining control of the extension with the tag
line, swing extension into position on boom nose
Figure 4-17.
NOTE: Step 17 is with the 7 m (23 ft) section stowed on
boom.
17. While maintaining control with the tag line, swing
extension into position on boom nose. The 7 m (23 ft)
section will remain on the boom.
18. Remove pins from holders and install on left side of
boom nose and secure with retainer clips Figure 4-18.
Relieving the Load on Bearing Points
NOTE: The weight of the lattice extension can cause the
bearing points on the left side to be misaligned or
the pins to get weighted which makes it impossible
to knock them out.
When establishing or disconnecting the connections,
proceed as follows:
Lower the lattice extension until it is on the ground with
the supports (Figure 4-19). If necessary, override the
lifting limit switch.
Continue to lower carefully until the connecting points
(Figure 4-20) align or until the load has been removed
from the pins.
DANGER
To prevent serious injury or death, do not stand on the
crane deck to pull extension off ramp.
6642-47

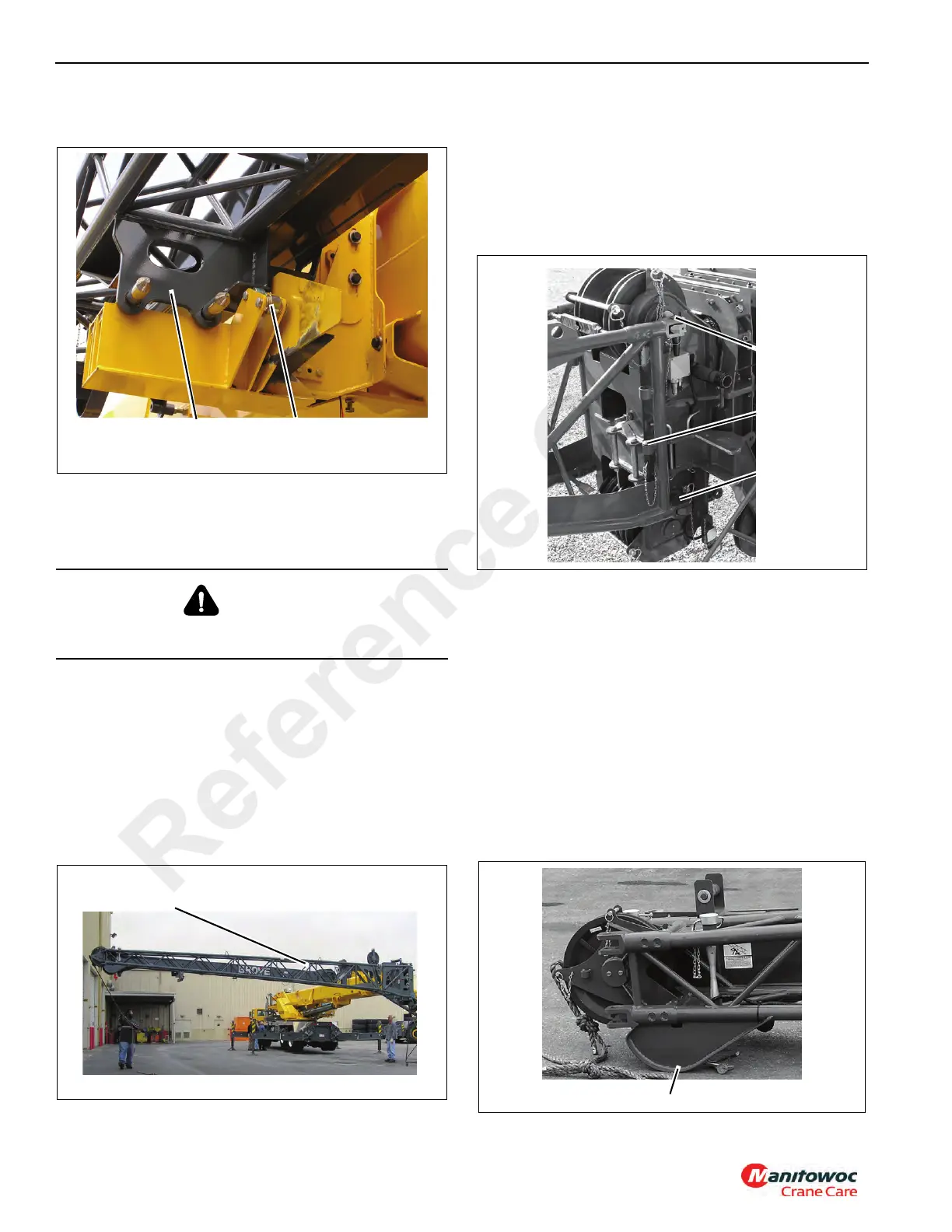

FIGURE 4-16
Extension Ramp Rollers
6645-3
FIGURE 4-17
7 m (23 ft) section with
the 10 m (33 ft) section
6642-18
FIGURE 4-18
Upper Pin
Installed
Lower Pin
Shown In
Holder
Install
Lower Pin
Here
FIGURE 4-19
Support
6642-44
Reference Only
