6. Remove retainer clip from the pin attaching the 7 m (23
ft) section to the base section Figure 4-10.
.
7. Remove the stowage pin Figure 4-11.
8. Stow the pin in pin holder provided on the swingaway
extension (Figure 4-12).
9. Remove the jib stowage controller from behind the seat
in the superstructure cab.
10. Use the controller to pivot the jib so that lugs on jib align
with the holes in the lugs on the boom nose
(Figure 4-13).
11. Remove pins stowed in extension and install in holes
(right side of boom nose) and secure with retainer clips
Figure 4-14.
12. Remove the clip pin from the stowage pin at the front
mount. Unpin the stowage pin and store in holder
(Figure 4-15).

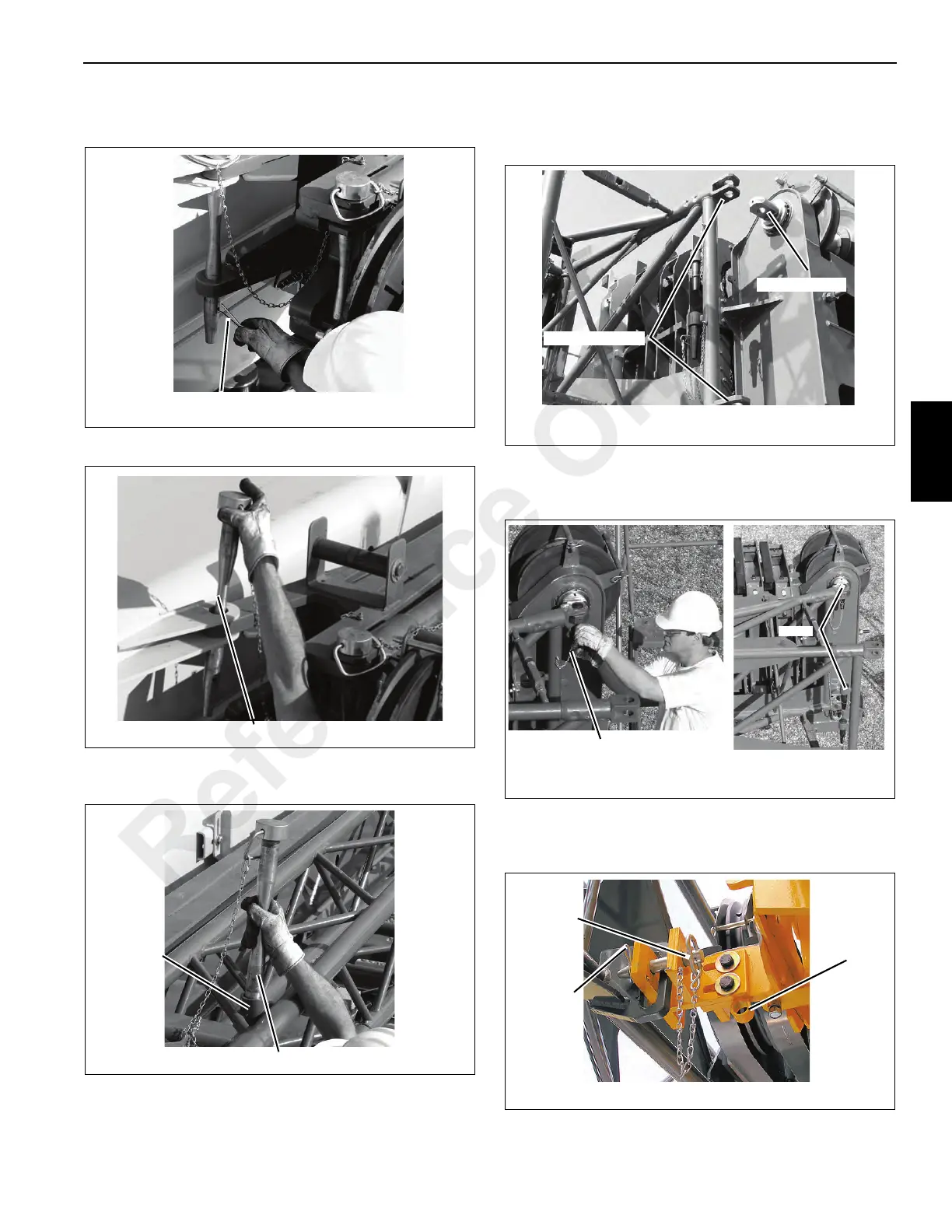

6642-5
Retainer Clip
FIGURE 4-10
6642-6
Stowage Pin
FIGURE 4-11
6642-7
Stowage Pin
FIGURE 4-12
Pin
Holder
6642-11
Extension Lugs
FIGURE 4-13
Boom Lug
Retainer Clip
FIGURE 4-14
6642-13
Pins
FIGURE 4-15
Pin
Holder
Stowage
Pin
Clip Pin
6642-46
