1. Lower boom below horizontal.
2. Attach tag line to stinger nose Figure 4-30.
3. Disconnect RCL connection Figure 4-31. Stow the cable
in the 7 m (23 ft) section.
4. Remove retainer clip and remove the left side stinger
retaining pin Figure 4-32. Place pin in holder.
5. Raise boom to slightly above horizontal.
6. Using tag line to control movement of stinger, swing
stinger into stowed position Figure 4-33.
7. Raise boom slightly above horizontal.
8. Connect stowage link to stinger and install retainer clip
Figure 4-34.
9. Remove tag line from stinger.
33 ft (10 m) Jib
1. Lower boom and secure tag line to tip of jib. Figure 4-35
shows the 7 m (23 ft) and 10 m (33 ft) extension
together.

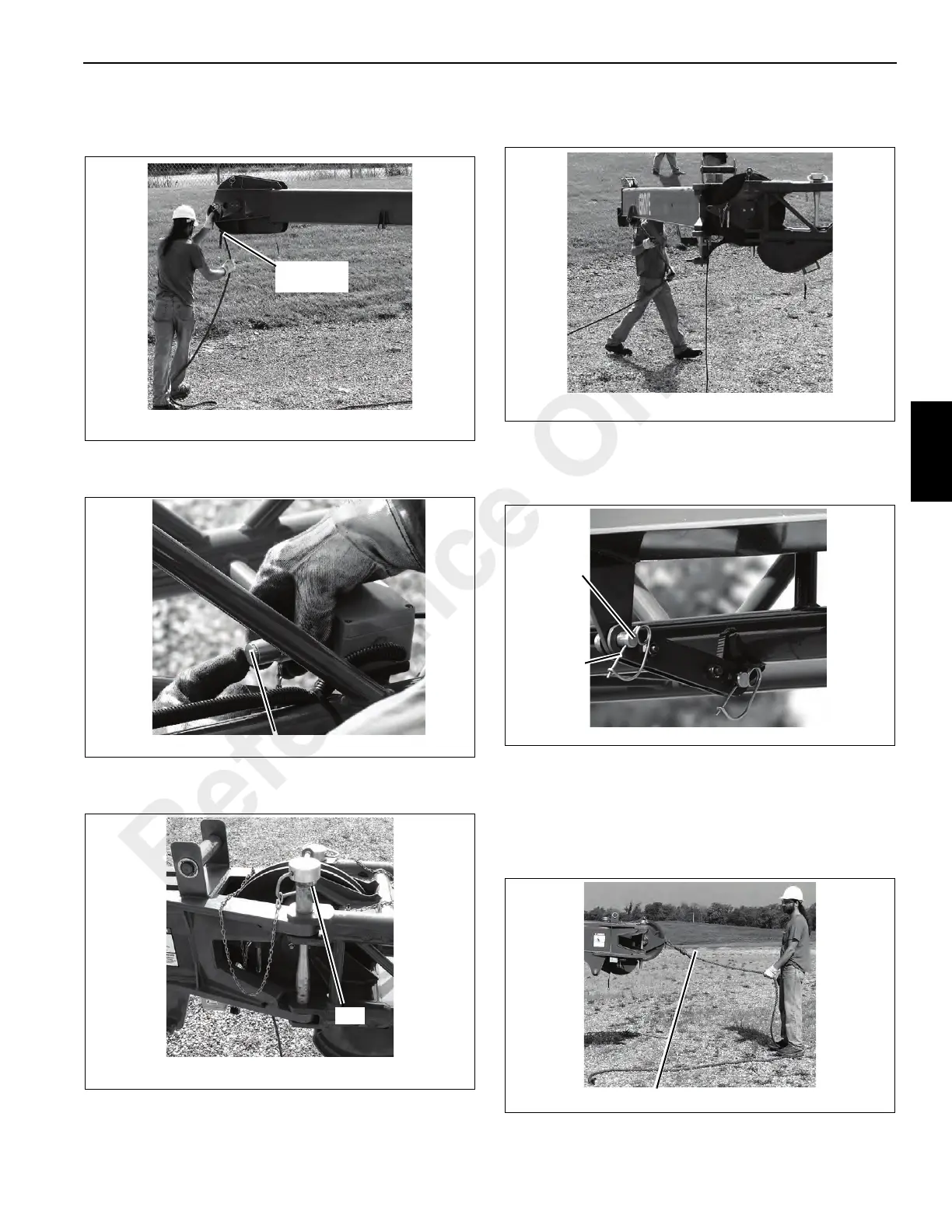

6642-23
Tag Line To
Stinger
FIGURE 4-30
6642-28
FIGURE 4-31
RCL Connection
6642-26
FIGURE 4-32
Pin
6642-29
FIGURE 4-33
6642-24
Stinger
Stowage
Pin
FIGURE 4-34
Clip Pin
6642-30
FIGURE 4-35
Tag Line
