TMS800E SERVICE MANUAL BOOM
4
GROVE
Published 01-29-2014, Control # 496-00
View D
101
108
104
92
102, 103
101
101, 102, 103
93
94, 95, 96, 97
98, 99, 100
105, 106
5
107
91
90
89
87
90
102, 103
101
86
98, 99, 100
88
113
84, 85
109
110, 111
112
92
93
94, 95, 96, 97
6605-4

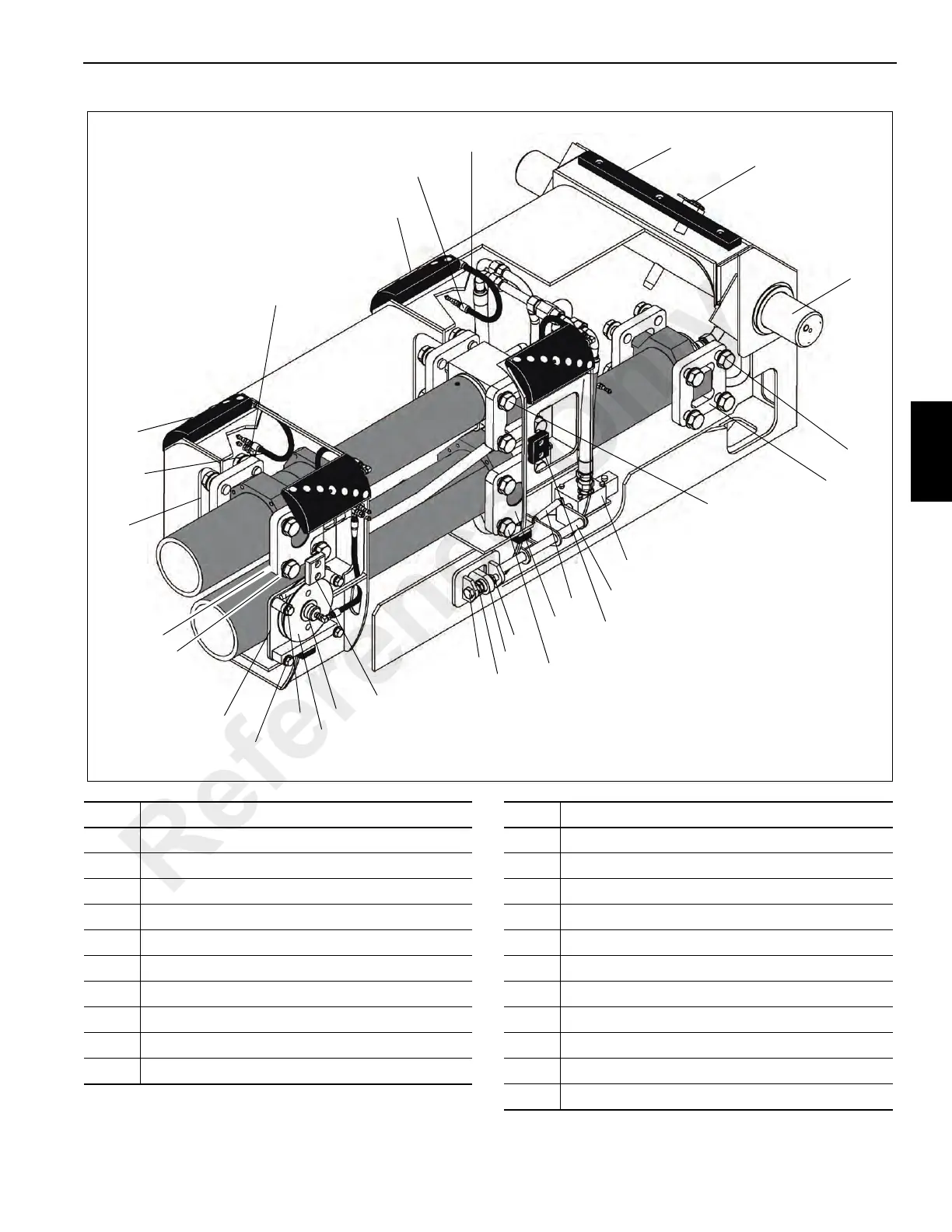

FIGURE 4-1 continued
Item Description
84 Capscrew
85 Washer
86 Cam Operating Plate
87 Spring
88 Pusher Weld
89 Trigger Weld
90 Nut
91 Capscrew
92 Rear Upper Pad
93 Hose
Item Description
94 Elbow
95 Adapter
96 Connector
97 Grease Fitting
98 Side Wear Pad
99 Capscrew
100 Shim
101 Trunnion Mounting Plate
102 Capscrew
103 Washer
104 Sheave Assembly
Reference Only
